9.12
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

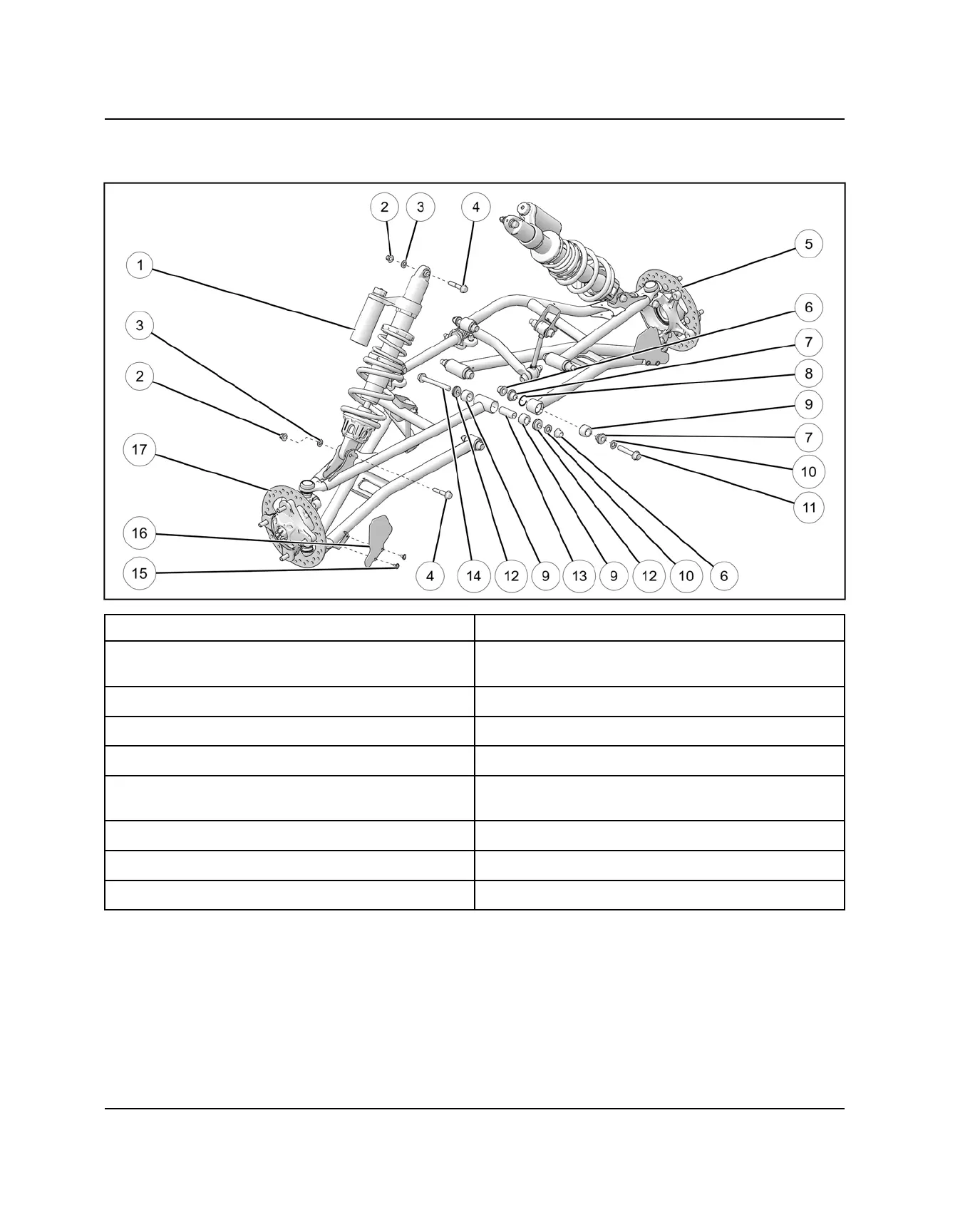

FRONT SUSPENSION ASSEMBLY VIEW
FRONT VIEW
q
Front Shock
a
Washer
w
Nut
51 lb-ft (70 Nm)
s
Front Lower Control Arm Fastener
e
Washer
d
Pivot Cap Asm.
r
Shock Mounting Fasteners
f
Pivot Shaft Short
t
LH Front Knuckle Asm.
g
Front Upper Control Arm Fastener
y
Nut
81 lb-ft (110 Nm)
h
Front CV Shield Fasteners
35 lb-in (4 Nm)
u
Pivot Cap Asm.
j
Front CV Shield
i
Spiral Ring
k
RH Front Knuckle Asm.
o
Bushing
