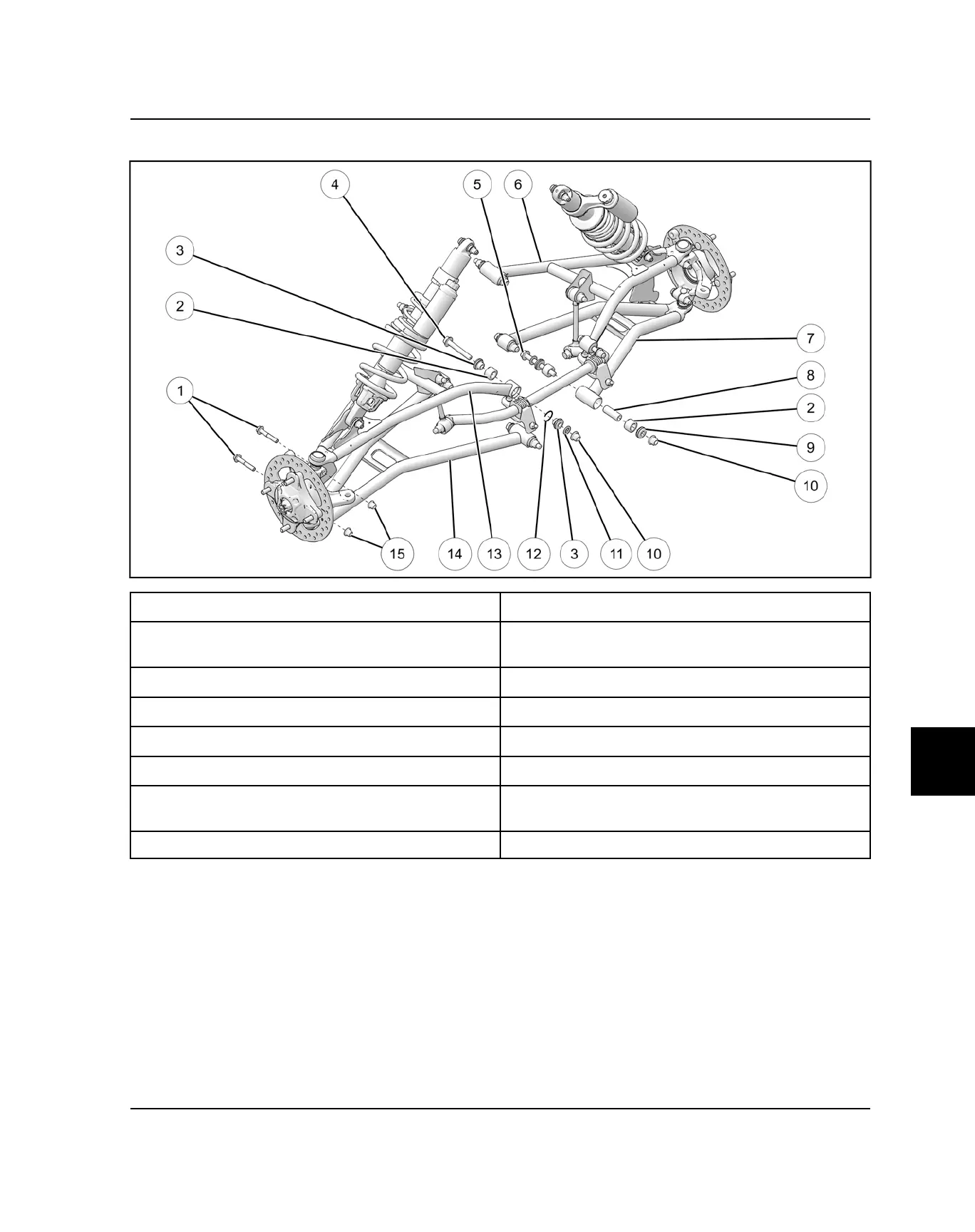

REAR VIEW
q
Ball Joint Pinch Bolts
o
Pivot Cap Asm.
w
Bushing
a
Nut
81 lb-ft (110 Nm)
e
Pivot Cap Asm.
s
Washer
r
Front Upper Inner Control Arm Fastener
d
Spiral Ring
t
Front Lower Inner Control Arm Fastener
f
LH Front Upper Control Arm
y
RH Front Upper Control Arm
g
LH Front Lower Control Arm
u
RH Front Lower Control Arm
h
Nut
51 lb-ft (70 Nm)
i
Pivot Shaft Short
STEERING / SUSPENSION
