12.68
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
TESTING

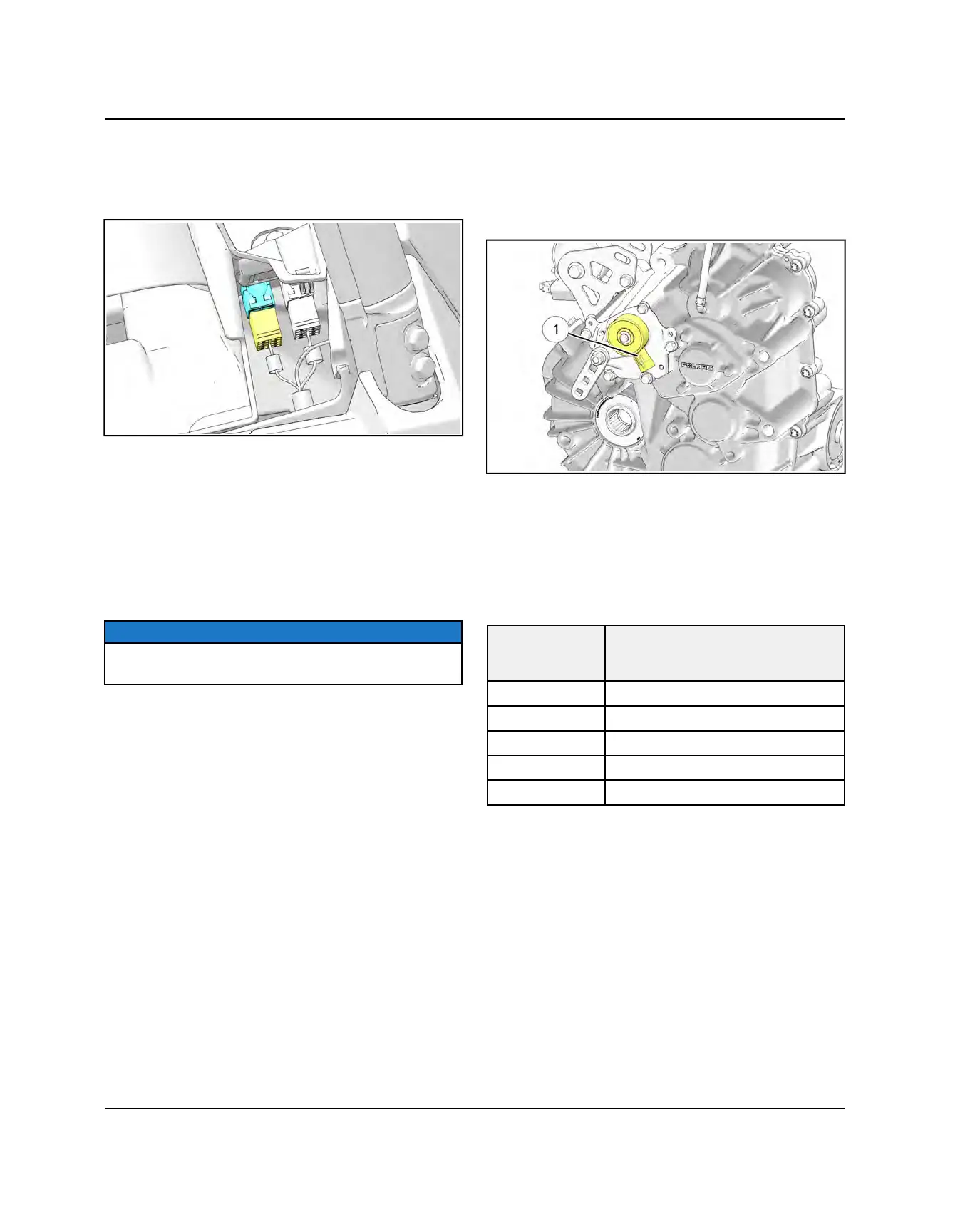

1. Disconnect the AWD / 2WD / TURF switch harness
by depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (AWD / 2WD /
TURF). If any of the tests fail, replace the switch
assembly.
• Move the switch to AWD. There should be continuity
between switch pins 2 and 3.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be continuity
between switch pins 1 and 2.
NOTICE
Pins 7 and 2 provide power and ground to light the
switch lamp.
TRANSMISSION / GEAR POSITION
SWITCH
The transmission (gear position) switch
q
is located on
the RH side of the transmission and can be accessed
through the rear RH wheel well area.
TESTING
1. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
2. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
GEAR
POSITION
RESISTANCE VALUE
WHEN MEASURED AT SWITCH
TERMINALS A AND B
HIGH 620 Ω
LOW 300 Ω
NEU
160 Ω
REV 75 Ω
PARK 24 Ω
CHASSIS / BODY ELECTRICAL
