INTERNATIONAL (INTL) BRAKE SERVICE
ANTILOCK BRAKING SYSTEM (ABS) OVERVIEW (INTL)
ABS is used to enhance vehicle braking performance by preventing the wheels from locking up during heavy braking
situations. The system monitors the vehicle wheel speed at via a tone ring that is fixed to the half shafts on both the
front and rear gearcase. The sensor outputs an analog signal while the tone ring spins with the wheel to generate a
speed signal for each wheel. When the brakes are applied the ABS HECU is able to control the brake pressure going
to each wheel to aid in deceleration.
The ABS feature can be enabled and disabled by the rider. Reference the owners manual for ABS settings.
q

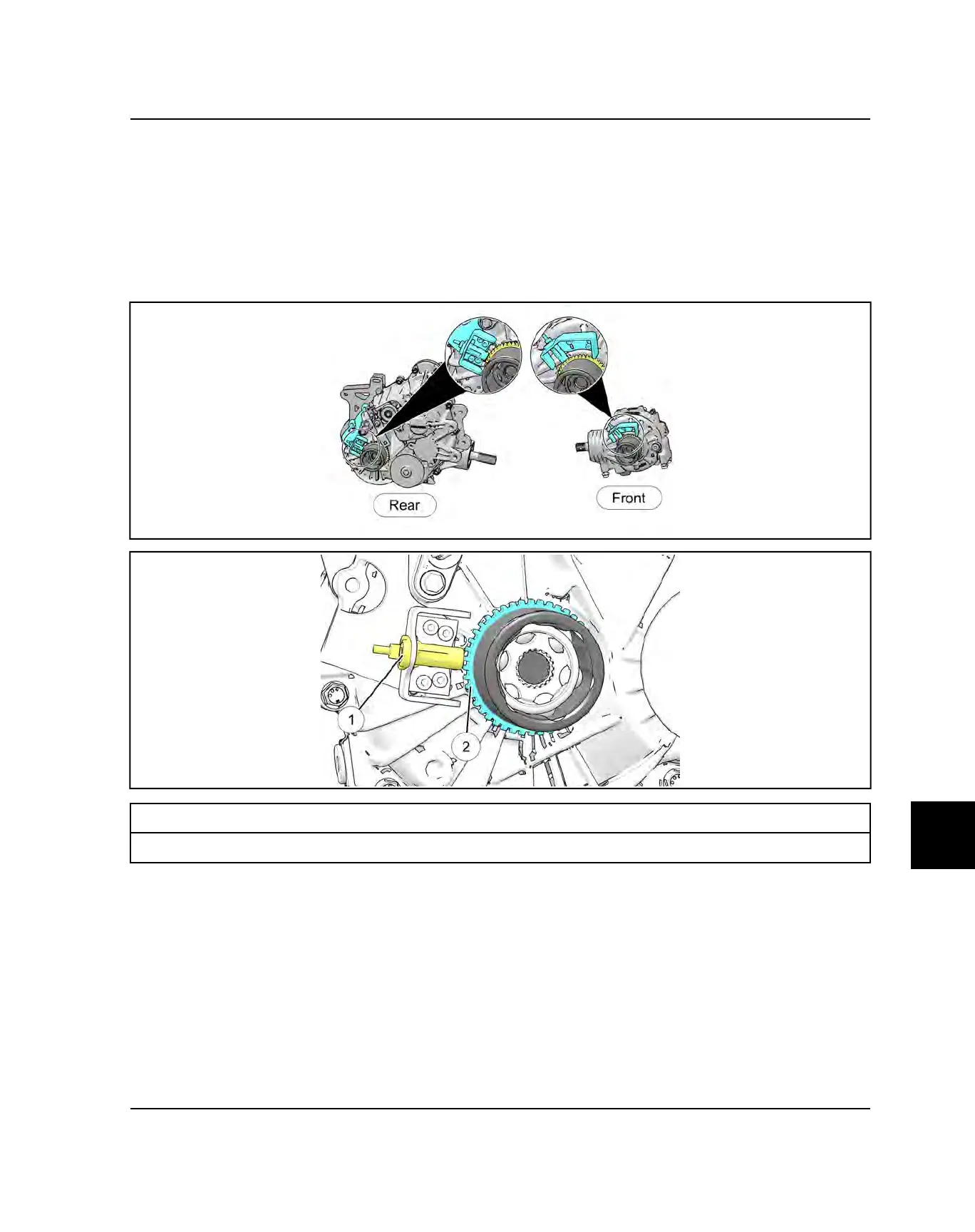

Speed Sensor
w
Tone Ring
