13.54
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

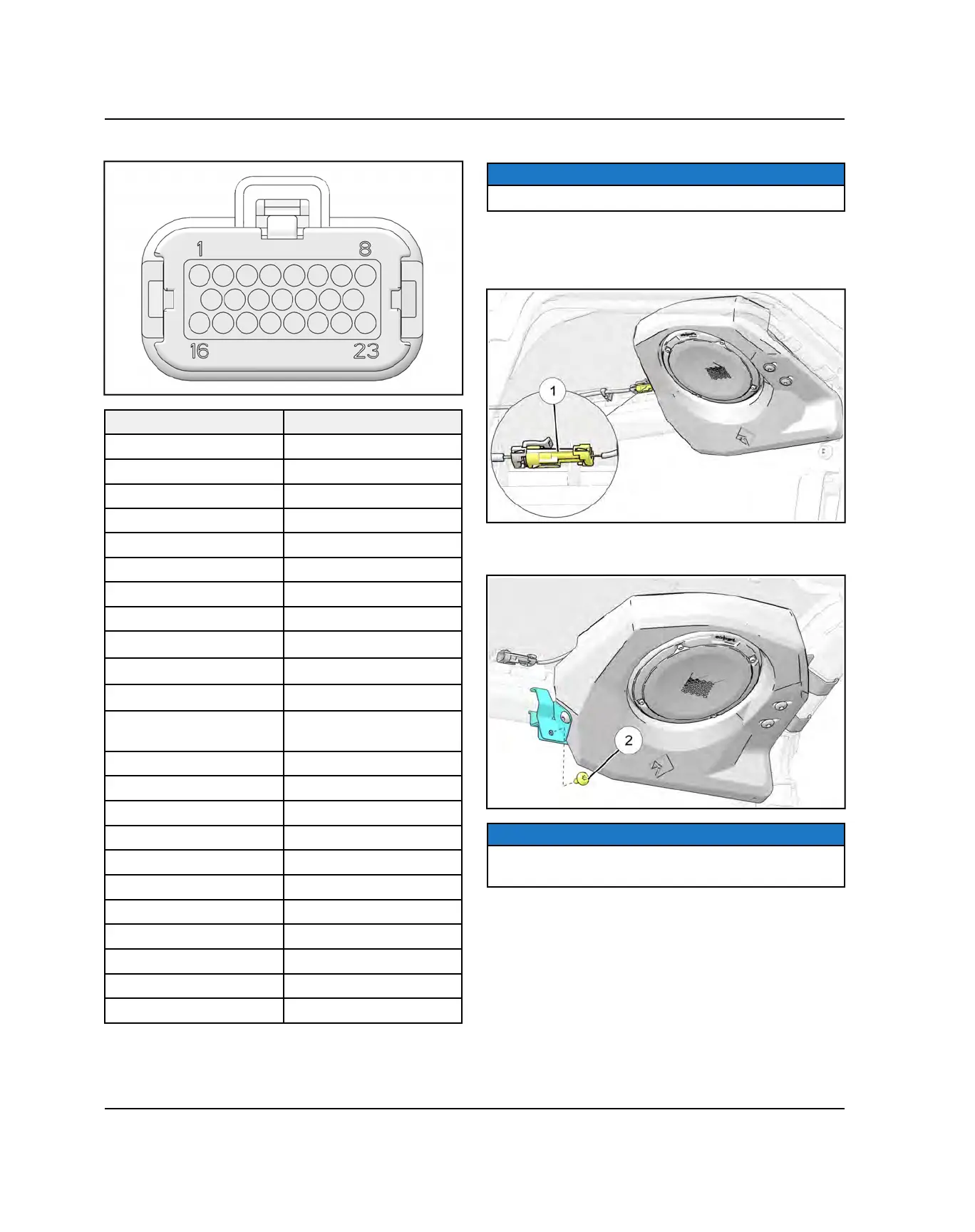

AMPLIFIER PINOUT
PIN FUNCTION
1 RIGHT -
2 RIGHT +
3 LEFT -
4 LEFT +
5
—
6 SUB -
7 SUB +
8
—
9
GROUND, AMP
10
GROUND, AMP
11
GROUND, AMP
12
GROUND, SHIELD AMP
1
13 AMP TURN ON
14 SW B+ AMP
15 SW B+ AMP
16 AUDIO 1 LINE OUT L -
17 AUDIO 1 LINE OUT L +
18 AUDIO 1 LINE OUT R -
19 AUDIO 1 LINE OUT R +
20 SUB LINE OUT L +
21 SUB LINE OUT L -
22 SUB LINE OUT R +
23 SUB LINE OUT R -
REAR SPEAKER ASSEMBLY SERVICE
NOTICE
Driver side rear speaker shown.
REMOVAL
1. Disconnect the speaker harness connector
q
from
the main audio harness.
2. Remove the fastener
w
securing the inner speaker
brackets to the ROPS.
NOTICE
The inner speaker bracket that is secured to the
speaker assembly may remain attached.
FACTORY-INSTALLED OPTIONS
