9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
FRAME

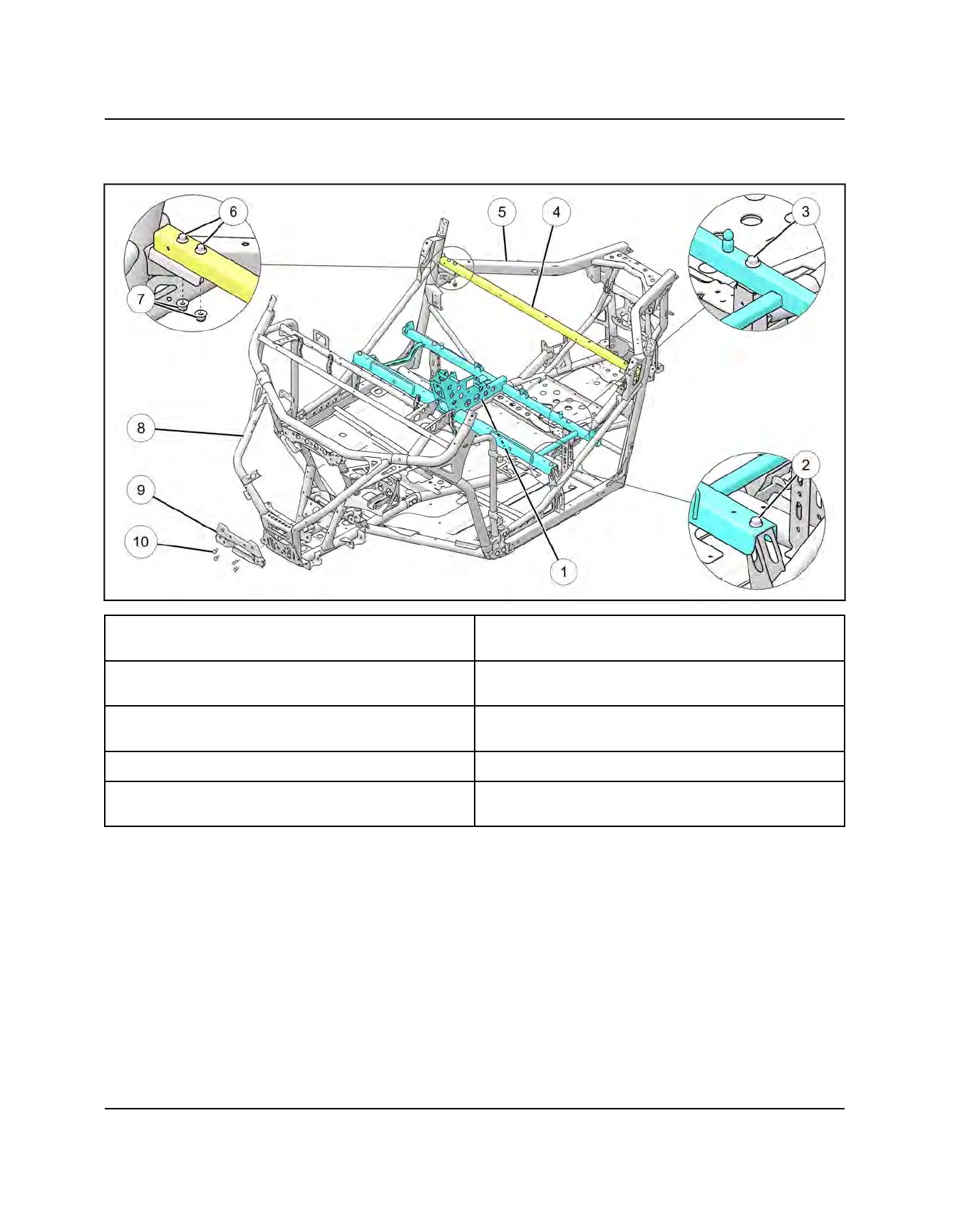

FRAME ASSEMBLY VIEW - GENERAL
q
Seat Base Frame
y
Top Frame Fasteners
22 ft-lbs (30 Nm)
w
Front Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
u
Nut
e
Front Seat Base Frame M10 Fasteners
30 ft-lbs (41 Nm)
i
Front Frame
r
Top Frame
o
Suspension Mount Bracket
t
Main Frame
a
Suspension Mount Bracket Fasteners
18 ft-lbs (24 Nm)
BODY / FRAME
