13
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
13.41
6. Installation is performed by reversing the removal
procedure.
TORQUE
Ride Command Display Mount Fasteners:
40 in-lbs (4.5 Nm)
TORQUE
Ride Command Display Fasteners:
40 in-lbs (4.5 Nm)

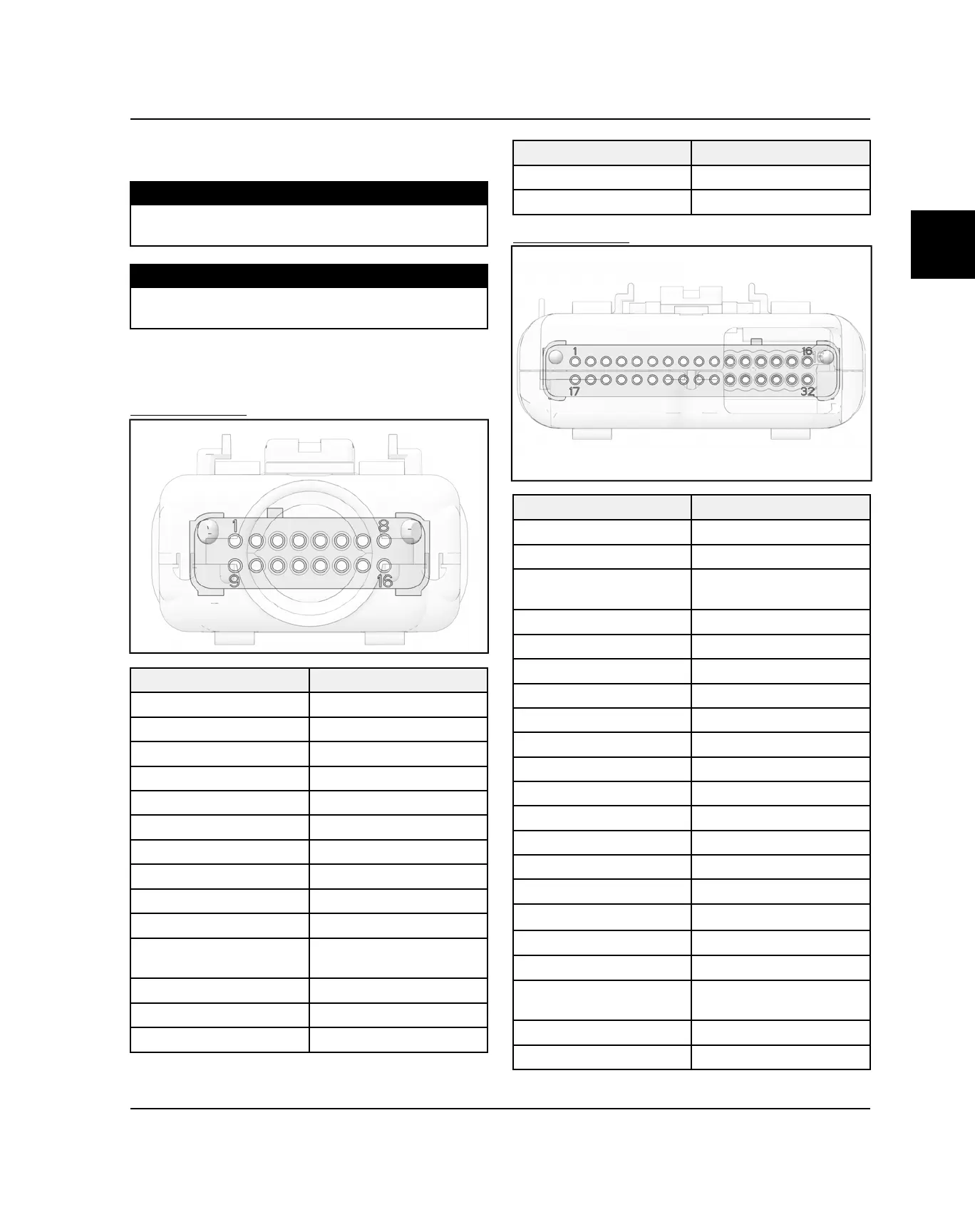

RIDE COMMAND DISPLAY PINOUT
DISPLAY 16 PIN
PIN FUNCTION
1
—
2
—
3 SUB LINEOUT +
4 SUB LINEOUT -
5
—
6
—
7
—
8 VIDEO TURN ON
9
—
10
—
11
GROUND, VIDEO
FRONT
12 VIDEO FRONT P
13
—
14
—
PIN FUNCTION
15
—
16
—
DISPLAY 32 PIN
PIN FUNCTION
1 AUDIO 2 LINE OUT R-
2 AUDIO 2 LINE OUT R+
3
GROUND, SHIELD AMP
2
4 AUDIO 2 LINE OUT L-
5
AUDIO 2 LINE OUT L+
6
—
7
—
8 AMBIENT TEMP HI
9
—
10
—
11
—
12
—
13
—
14
—
15 AMP TURN ON
16
GROUND, DISPLAY
17 AUDIO 1 LINE OUT R+
18 AUDIO 1 LINE OUT R-
19
GROUND, SHIELD AMP
1
20 AUDIO 1 LINE OUT L-
21 AUDIO 1 LINE OUT L+
FACTORY-INSTALLED OPTIONS
