9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
WHEEL HUBS - GENERAL / GENERAL 4

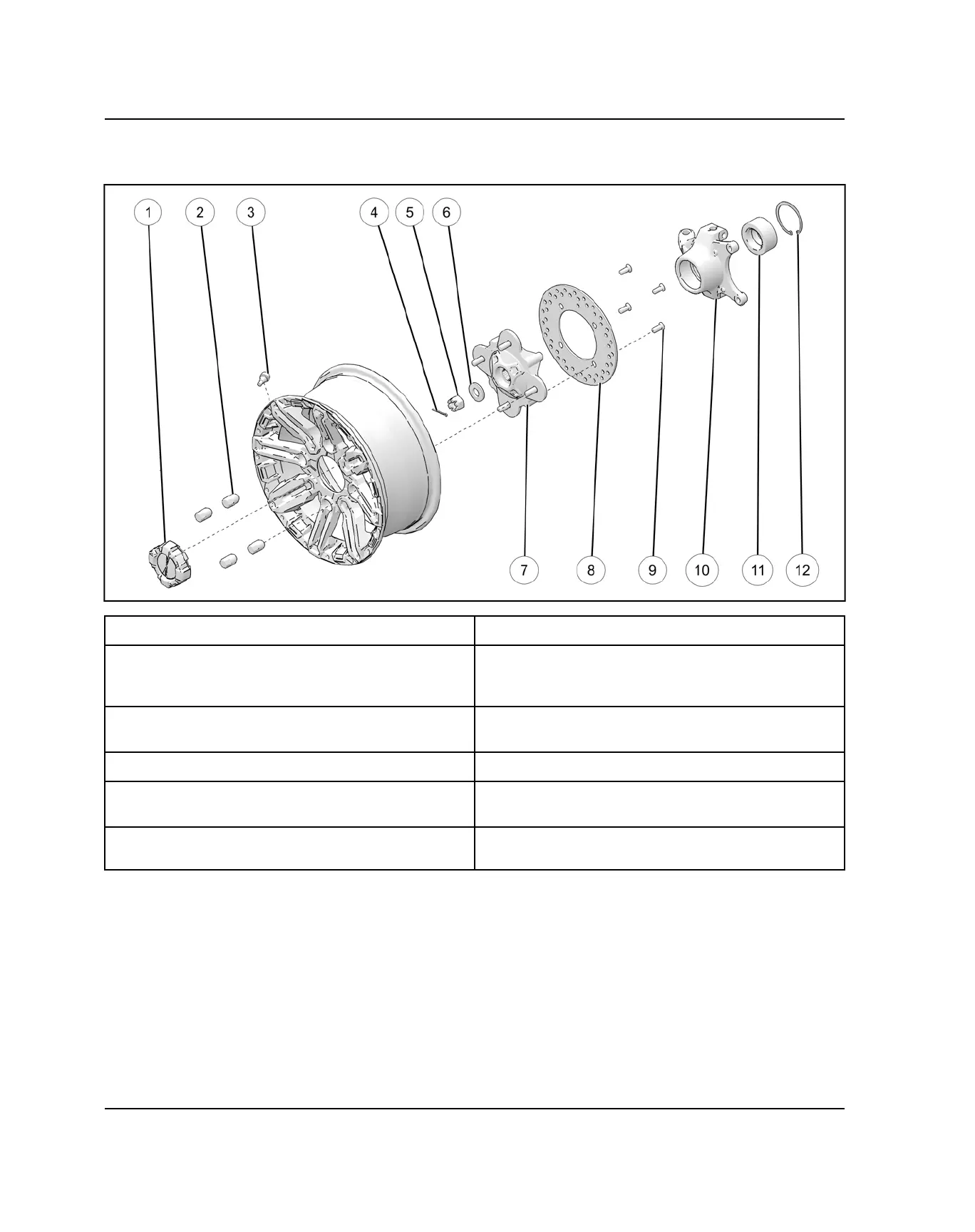

FRONT HUB ASSEMBLY VIEW
q
Rim Cap
u
Wheel Hub
w
Wheel Nut
Steel Wheels: 60 lb-ft (81 Nm)
Aluminum Wheels: 120 lb-ft (163 Nm)
i
Brake Disc
e
Valve Stem
o
Brake Disc Fasteners
18 lb-ft (24 Nm)
r
Cotter Pin a
Bearing Carrier
t
Hub Castle Nut
180 lb-ft (244 Nm)
s
Wheel Bearing
y
Washer
Install washer with domed side out
d
Snap Ring
