13.26
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
ROCKFORD FOSGATE STAGE 1 (BASE) AUDIO

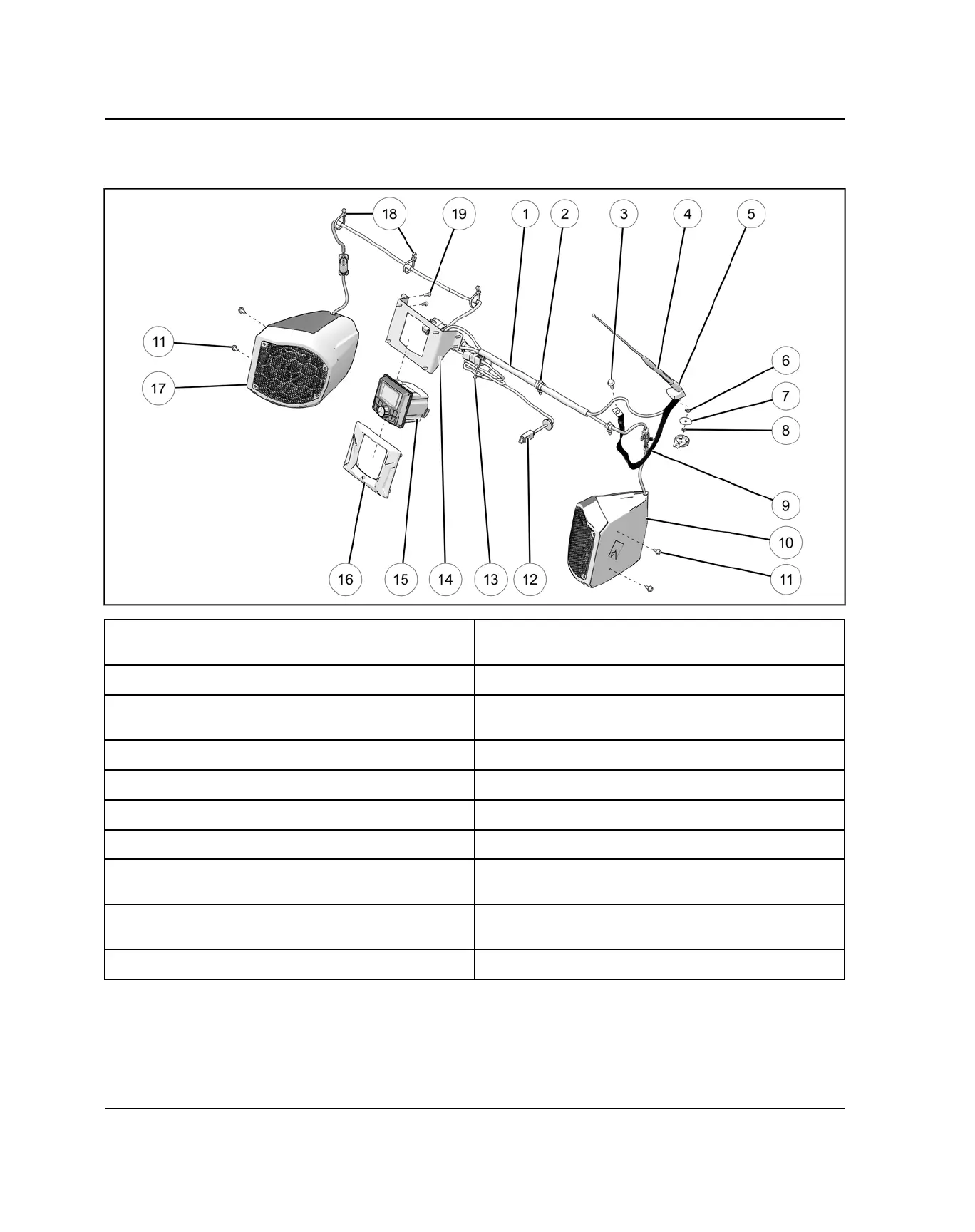

BASE AUDIO ASSEMBLY VIEW
q
Audio Harness
s
Front Speaker Mounting Fasteners
30 in-lbs (4 Nm)
w
Routing Clip
d
USB Harness
e
AM/FM Antenna Ground Strap Fastener
14 ft-lbs (19 Nm)
f
Panduit Strap
r
AM/FM Antenna
g
Audio Display Bracket
t
Antenna Mount
h
Audio Display
y
Washer
j
Audio Display Bezel
u
Washer
k
LH Speaker Asm.
i
Nut
25 in-lbs (3 Nm)
l
Panduit Strap
o
AM/FM Antenna Ground Strap
1(
Audio Display Mounting Fasteners
30 in-lbs (4 Nm)
a
RH Speaker Asm.
FACTORY-INSTALLED OPTIONS
