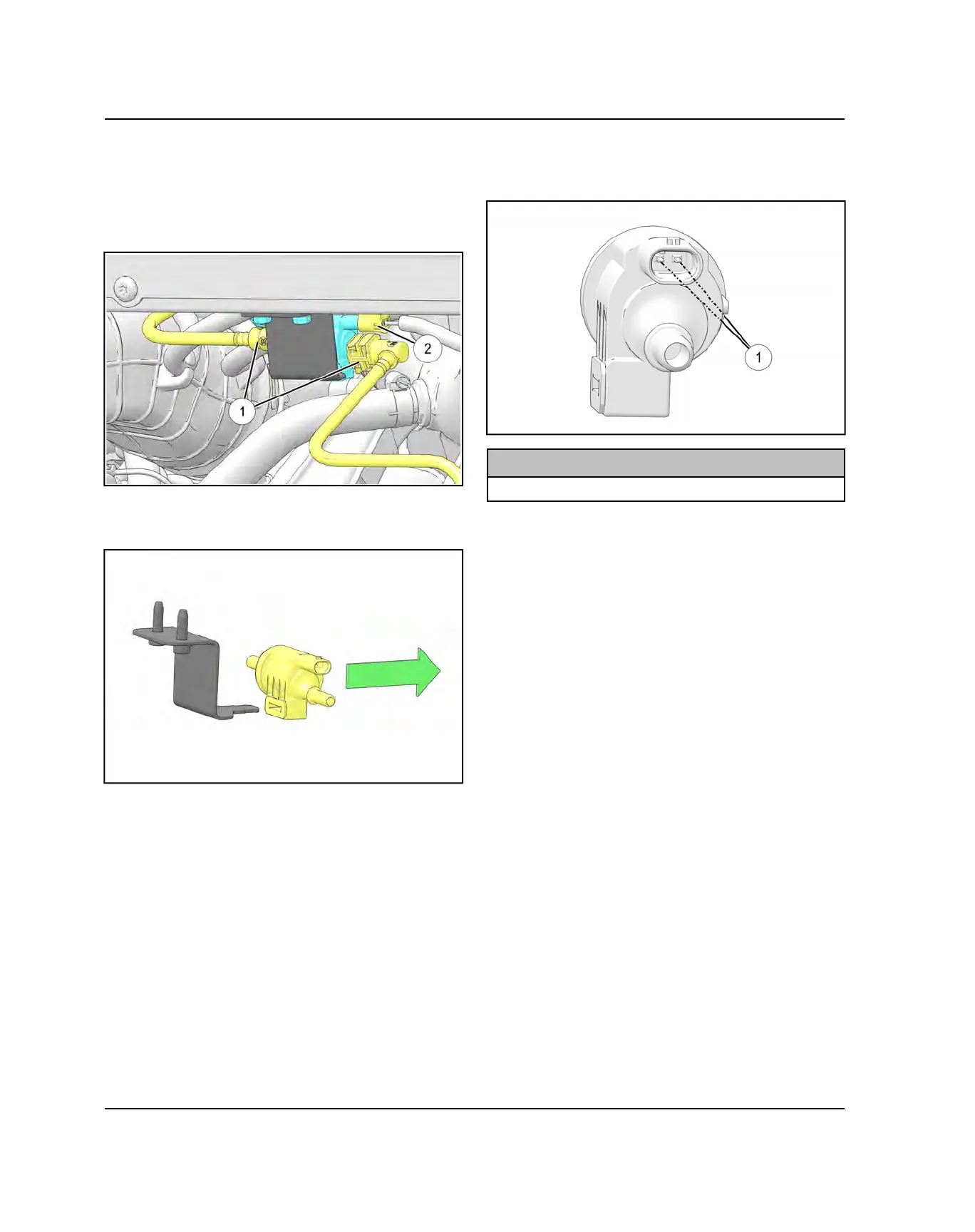

PURGE VALVE REPLACEMENT
1. Remove seats. See page 11.51.
2. Remove center council and rear lower close off panel
by referencing page 11.56
3. Remove lines connected to purge valve
q
.
4. Disconnect purge valve electrical connector
w
.
5. Remove purge valve from the bracket.
6. Install new purge valve onto its bracket.
7. Installation is performed by reversing the removal
procedure.
8. Reinstall rear lower close off panel and center
council. Reference page 11.63
9. Reinstall seats. See page 11.76.
PURGE VALVE OHM TEST
Use a multimeter to test the resistance of purge valve
q
as shown.
Specification
17 ± 2 Ω
Compare the with the value above and replace if not
within specification.
