4. If the resistance is incorrect, follow the “CPS
Replacement page 4.6” procedure.
CPS REPLACEMENT

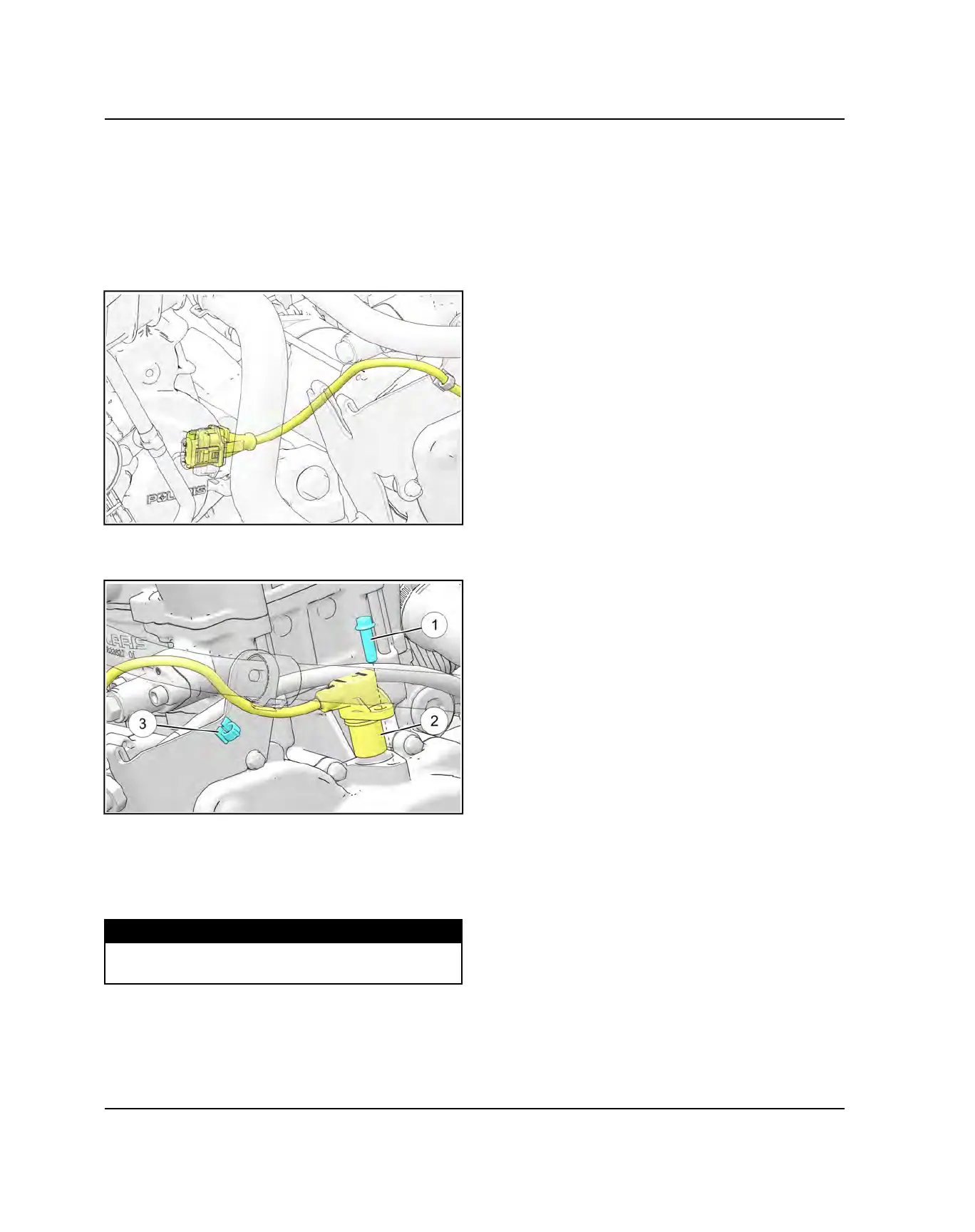

1. Access the CPS harness from the right rear side of
the vehicle.
2. Disconnect the CPS harness connector.
3. Remove CPS retaining bolt
q
and remove the sensor
w
from the stator cover.
4. Remove CPS wire lead from wire clip
e
.
5. Install new sensor using a light coating of oil on the
O-ring to aid installation.
6. Torque CPS retaining bolt to specification.
TORQUE
CPS Retaining Bolt:
9 lb-ft (12 Nm)
7. Route CPS wire lead through wire clip and reconnect
CPS harness connector.
ENGINE ELECTRICAL
