9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

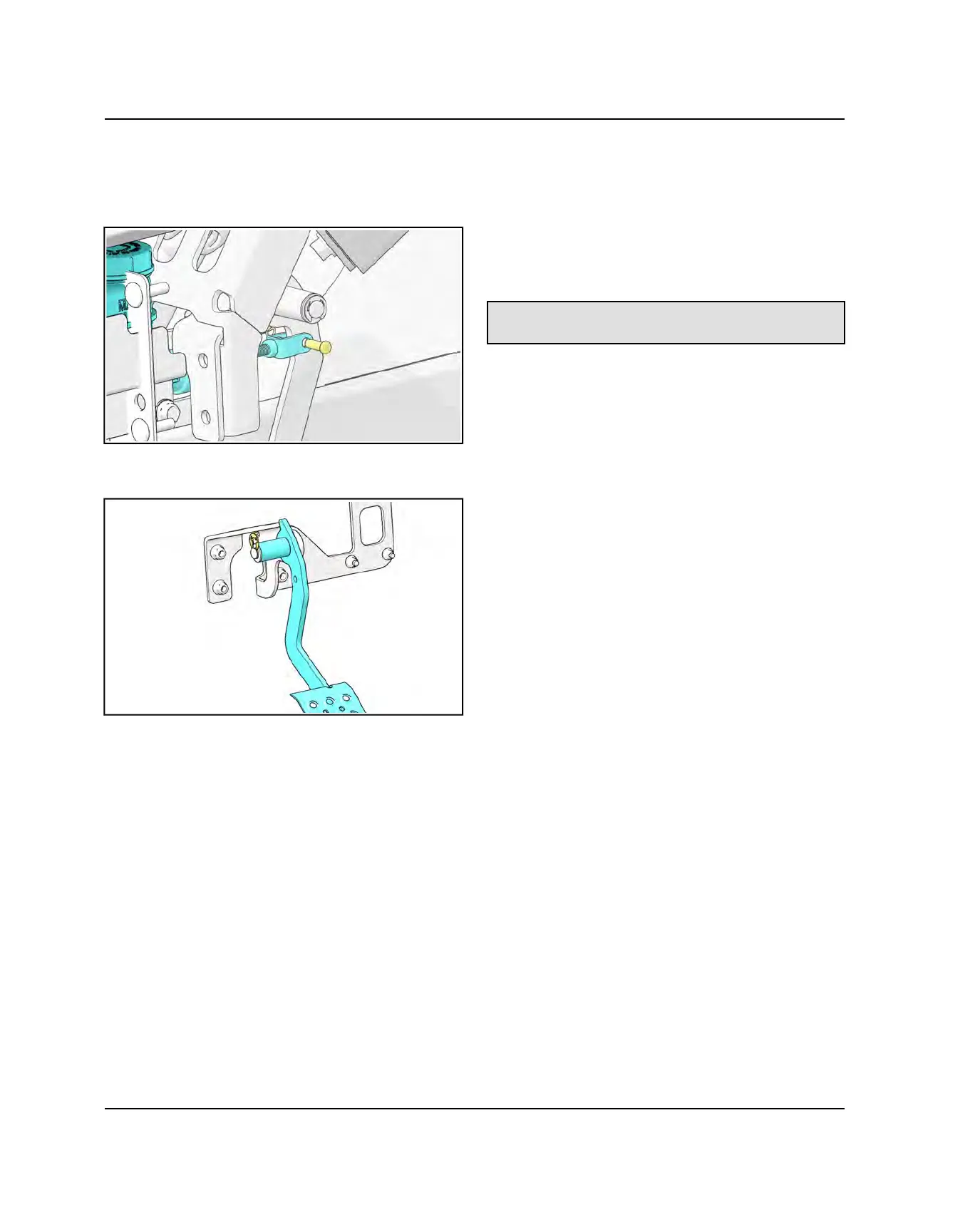

BRAKE PEDAL SERVICE
BRAKE PEDAL REMOVAL
1. Remove the clip from the clevis pin that attaches the
master cylinder to the brake pedal lever.
2. Remove the E-clip from the pedal mount and remove
the brake pedal lever from the vehicle.
BRAKE PEDAL INSTALLATION
1. Install the brake pedal onto pedal pivot shaft.
2. Insert E-Clip into end of pivot shaft
3. Install the clevis pin and clip holding the master
cylinder to the brake pedal.
4. Ensure brake pedal freeplay is within specification.
Brake Pedal Free-play:
0.090 in (2.28 mm)
