STEERING ASSEMBLY SERVICE
STEERING SHAFT REMOVAL - UPPER
IMPORTANT
This procedure requires the replacement of a fastener.
Please review the procedure to identify the fastener
needed and verify it is readily available before
proceeding. Failure to replace fastener can result in
injury or death.

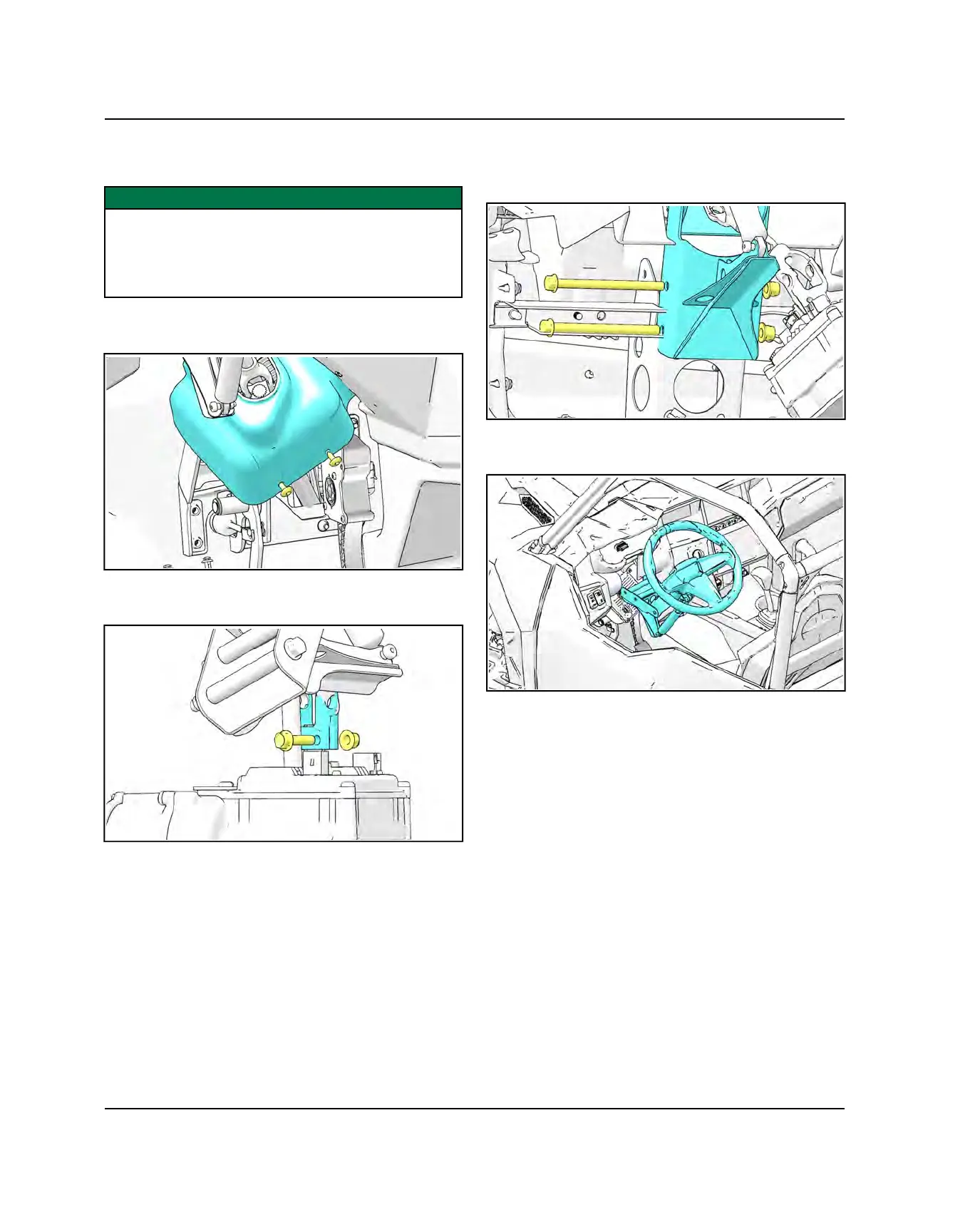

1. Remove the fasteners retaining the black plastic
cover and remove the cover from the vehicle.
2. Remove and discard the pinch bolt retaining the
upper steering shaft to the power steering unit.
3. Remove the fasteners that retain the tilt assembly to
the mounting bracket.
4. Remove the steering shaft, pivot tube and steering
wheel from the vehicle as an assembly.
