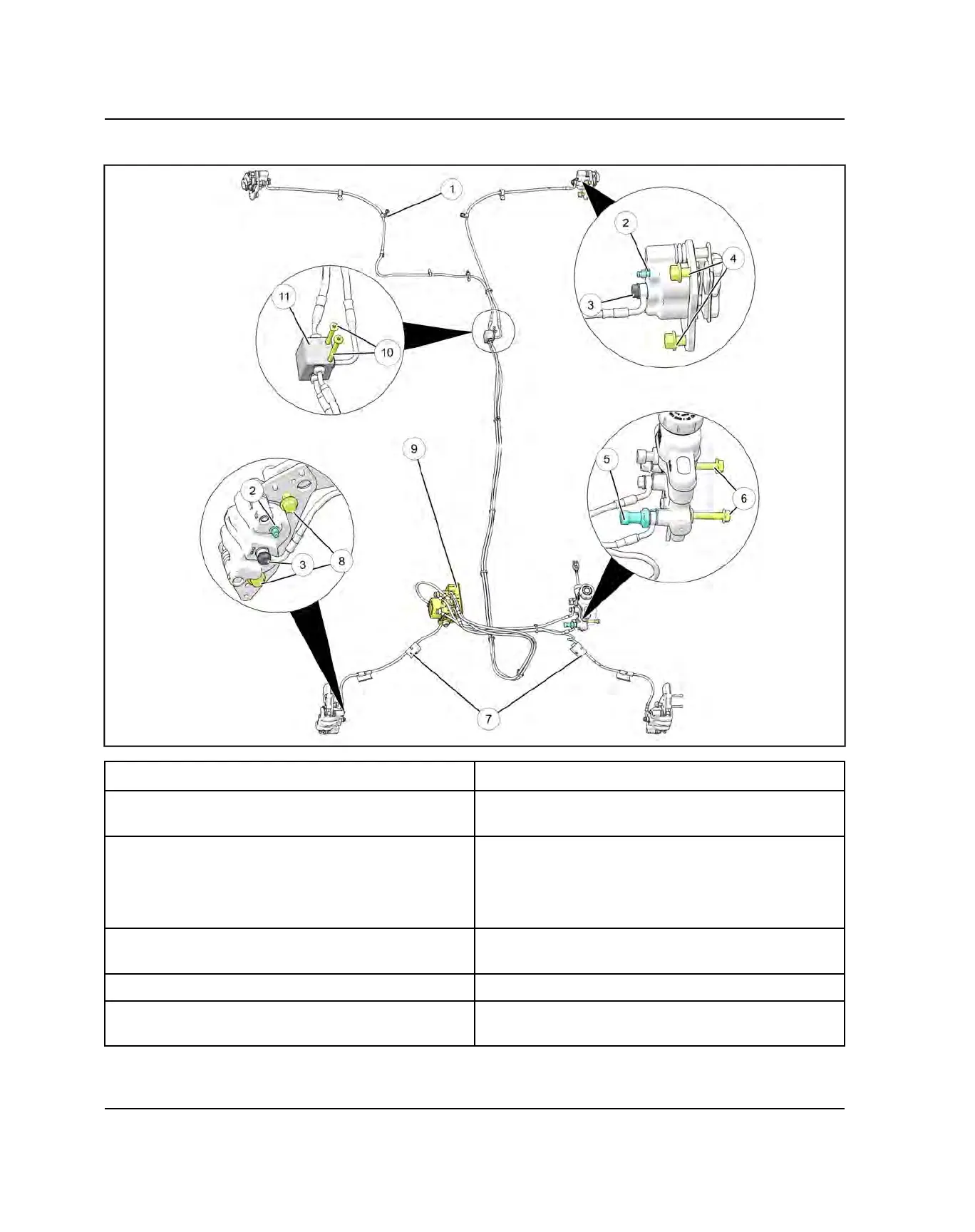

BRAKE SYSTEM ASSEMBLY VIEW (INTL ABS)
q
Brake Line Retention Fastener
u
Brake Line Clip
w
Brake Caliper Bleeder Screw
4 lb-ft (5.4 Nm)
i
Front Brake Caliper Fasteners
30 lb-ft (41 Nm)
e
Banjo Bolt
15 lb-ft (20 Nm)
o
ABS Module
Step 1: Pre torque all three fasteners to 1.8 lb-ft (2
Nm)
Step 2: Torque all three fasteners to 3 lb-ft (4 Nm)
Step 3: Torque all three fasteners to 4 lb-ft (5.4 Nm)
r
Rear Brake Caliper Fasteners46 lb-ft (62 Nm)
a
Junction Block Fasteners
35 in-lbs (4 Nm)
t
Brake Pressure Switch
s
Junction Block
y
Master Cylinder Fasteners
22 lb-ft (30 Nm)
