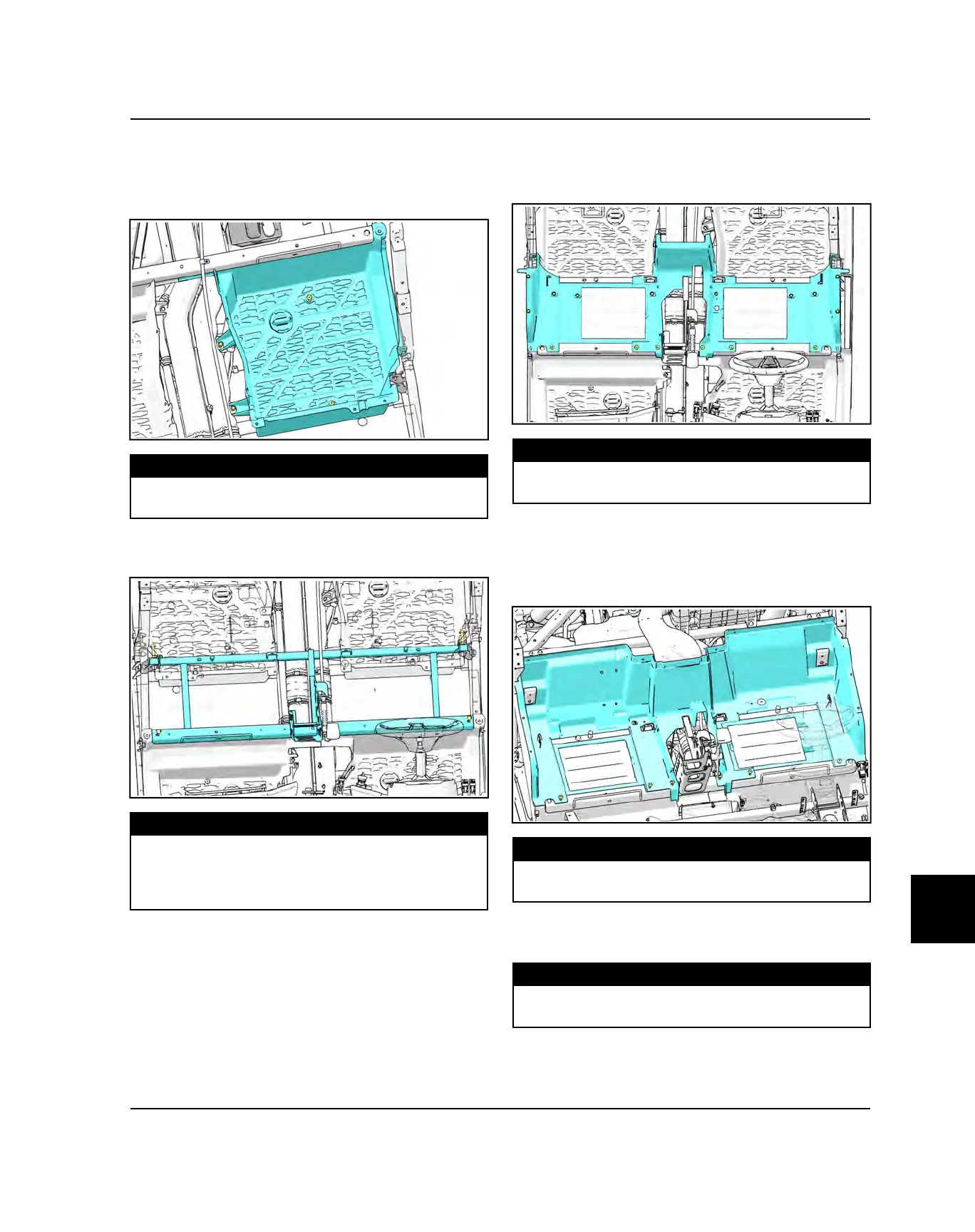

REAR FLOOR INSTALLATION
1. Install the rear RH and LH floors in the vehicle and
install the fasteners holding the main floors to the
vehicle. Torque the fasteners to specification.
TORQUE
Floor Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the fasteners holding the front seat base frame
to the vehicle. Torque fasteners to specification.
TORQUE
Front Seat Base Frame M8 Fasteners:
10 lb-ft (14 Nm)
Front Seat Base Frame M10 Fasteners:
40 lb-ft (54 Nm)
FRONT CLOSEOFF PANEL INSTALLATION
1. Install the fasteners holding the front close-of panel to
the vehicle. Torque fasteners to specification
TORQUE
Front Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
LOWER REAR CLOSEOFF PANEL
INSTALLATION
1. Install the fasteners holding the rear lower close-off
panel to the vehicle. Torque fasteners to specification.
TORQUE
Rear Lower Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the seat belt buckles and seat belt shoulder
strap mounts.
TORQUE
Seat Belt Fasteners:
40 lb-ft (54 Nm)
3. Install the fuse box. Refer to “Fuse Box
Replacement page 12.42” procedure.
