11.68
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

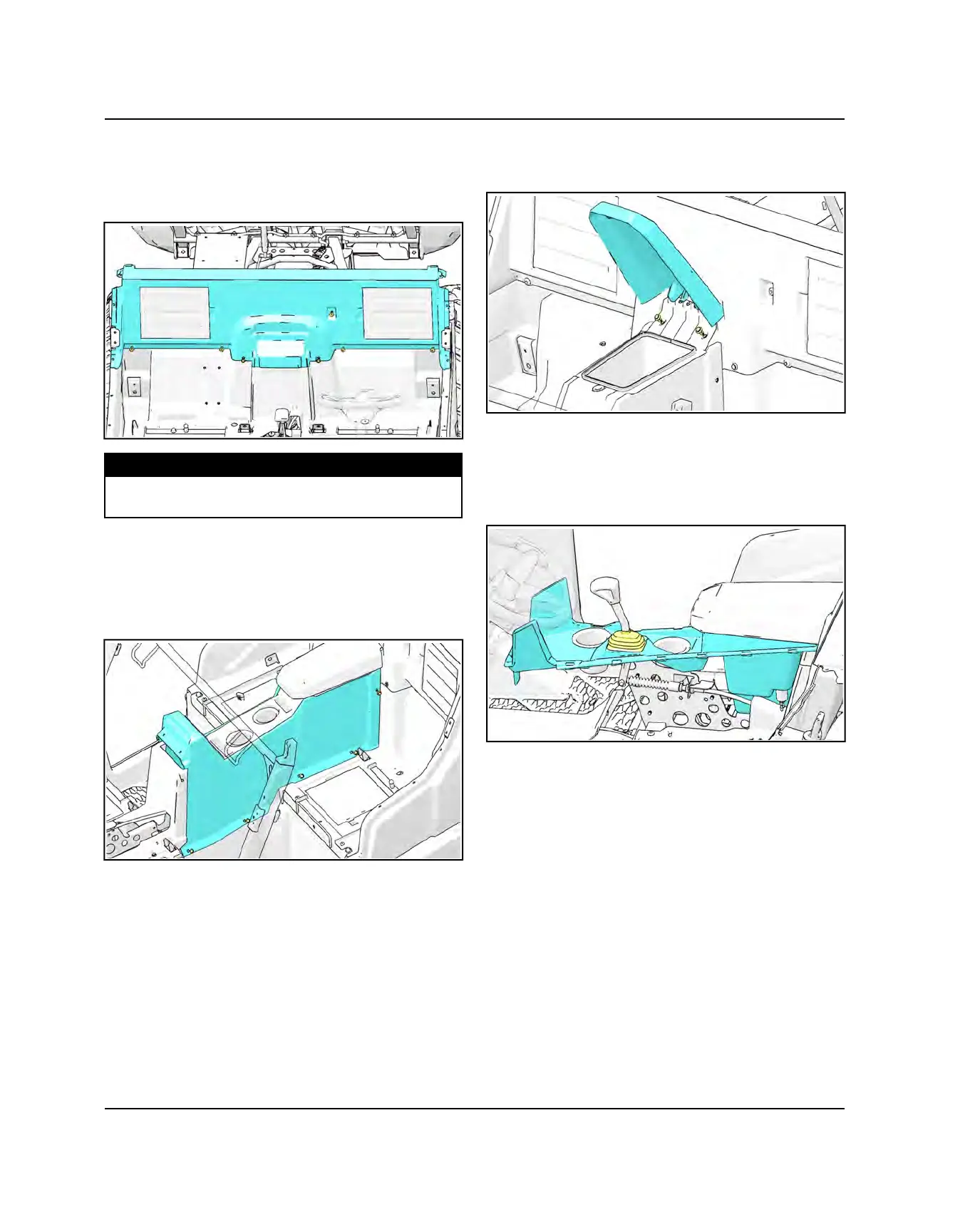

UPPER REAR CLOSEOFF PANEL
INSTALLATION
1. Install the fasteners holding the rear upper close-off
panel to the vehicle. Torque fasteners to specification.
TORQUE
Rear Upper Close-off Panel Fasteners:
3.5 lb-ft (4.7 Nm)
2. Install the ECU. Refer to “ECU Replacement page
4.2” procedure.
REAR CENTER CONSOLE INSTALLATION
1. Install the fasteners holding the rear center console to
the vehicle.
2. Install the fasteners holding the rear center console
cover to the vehicle. Install the accessory power
outlet.
CENTER CONSOLE INSTALLATION
1. Install the center console top into the vehicle and over
the shift lever. Install the shift boot into the center
console top. Connect the 12 V power receptacles to
the wiring harness.
BODY / FRAME
To Next Page
