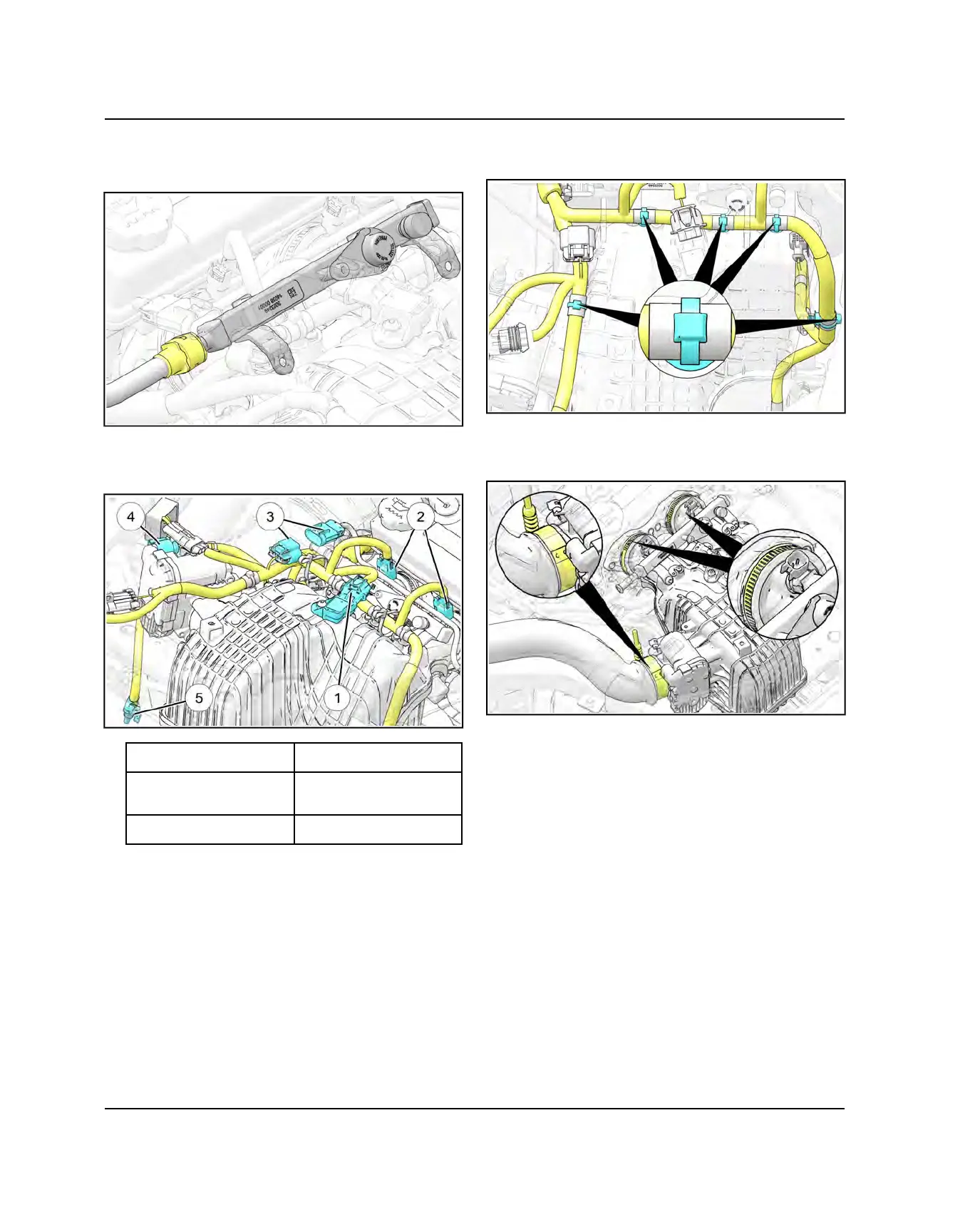

11. Place a shop towel around the fuel line to catch any
dripping fuel. Disconnect the fuel supply at the fuel
rail.
12. Disconnect the harness from the T-MAP sensor, fuel
injectors, oxygen sensor, ETC, and rear differential
solenoid.
q
T-Map Sensor
r
ETC
w
Fuel Injectors
t
Rear Differential
Solenoid
e
Oxygen Sensor
13.Remove the five plastic tie straps retaining the
harness to the intake plenum.
14.Loosen hose clamps that retain the intake plenum to
the engine. Loosen hose clamp that retain the engine
intake duct to the ETC and remove duct from ETC.
