7.18
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

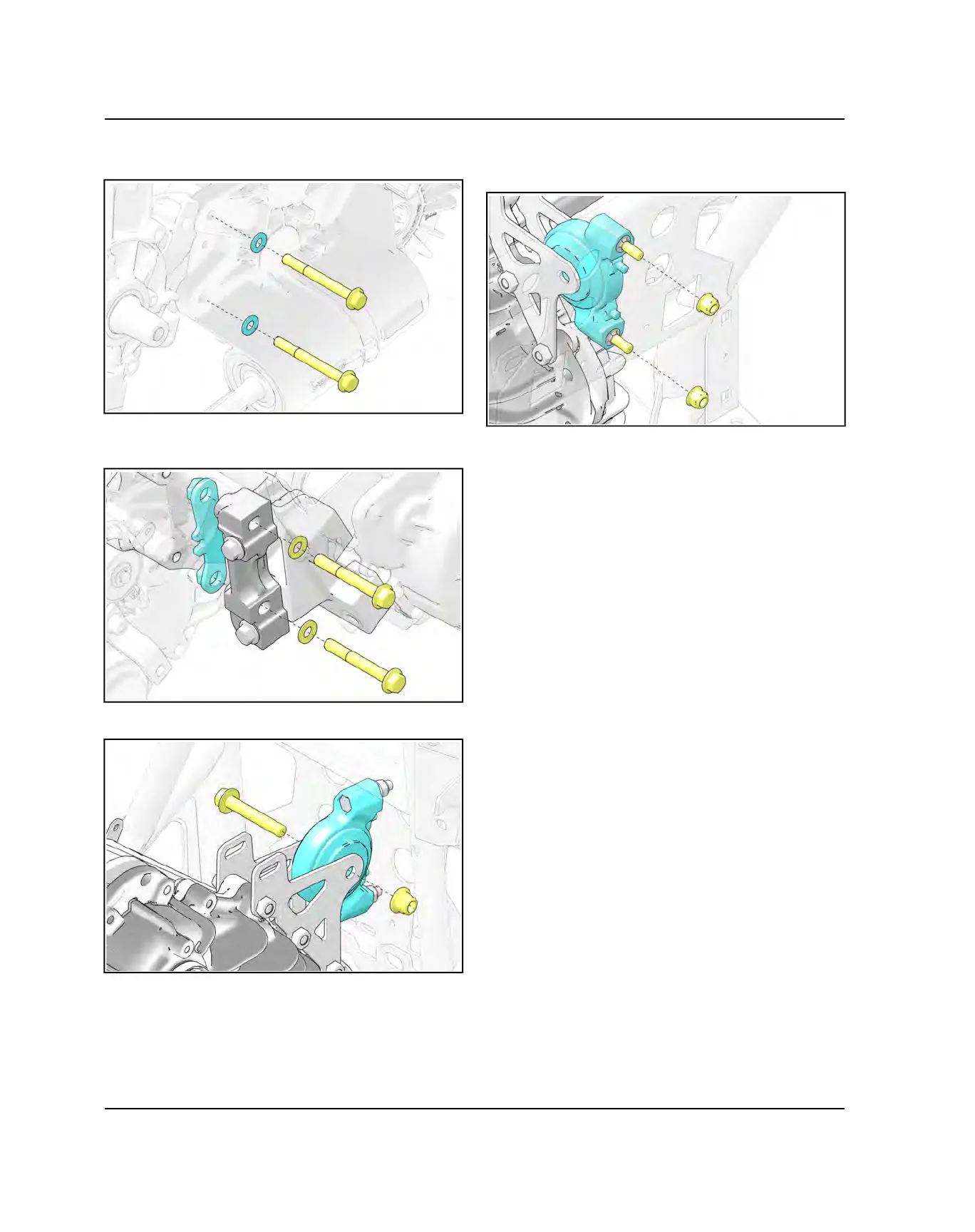

22.Remove the LH bolts from the mount securing the
transmission to the engine.
23.Remove the RH bolts from the mount securing the
transmission to the engine.
24.Remove the rear transmission isolator fastener.
25.Remove the two fasteners retaining the rear isolator
to the frame bracket. Remove the mount assembly
from the vehicle.
26.Slide transmission towards the rear of the vehicle. Lift
and rotate the top of the transmission towards the left
side of the vehicle. With the help of an assistant,
remove transmission from the left rear wheel well
area.
TRANSMISSION
