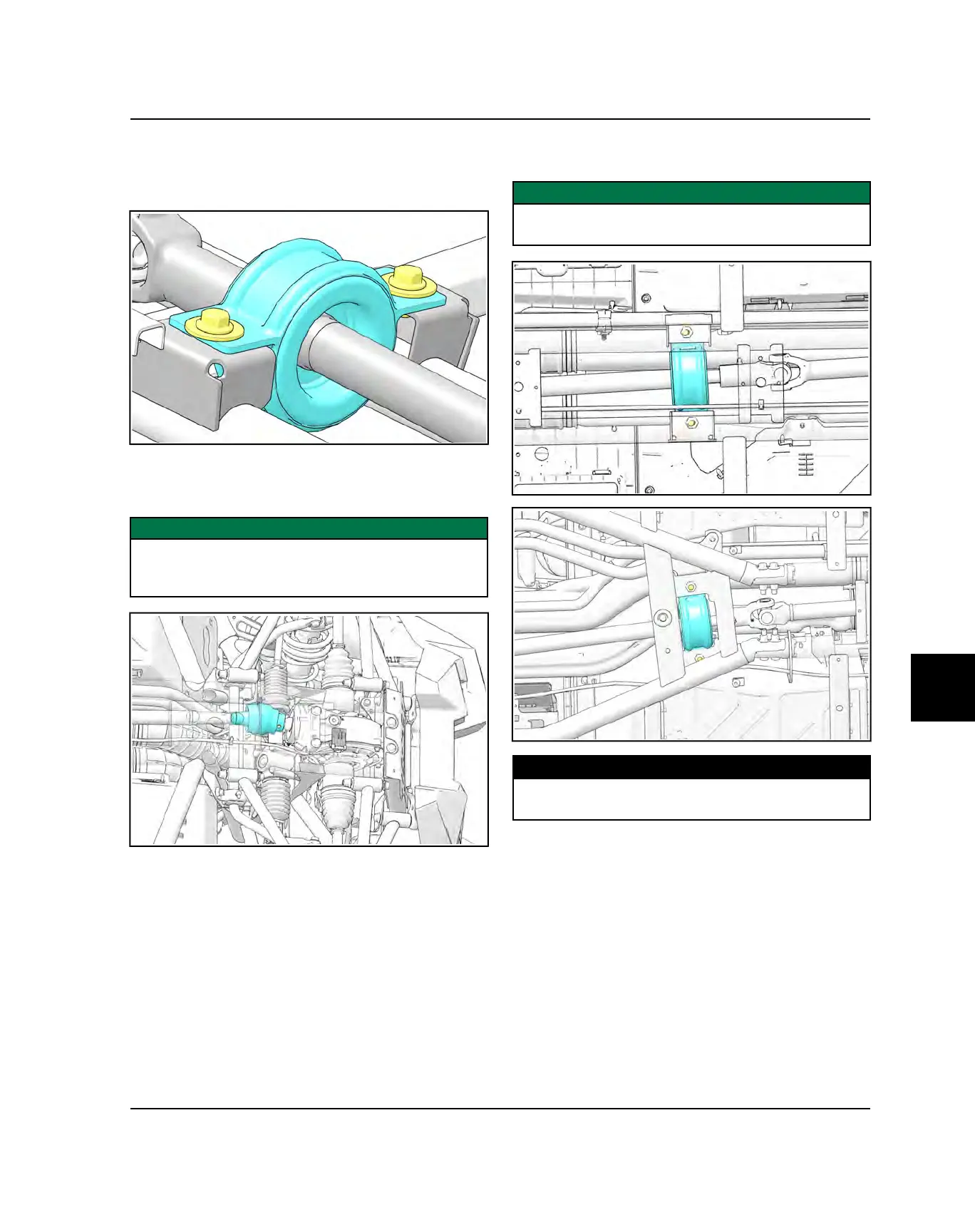

8. Ensure proper orientation of support bearing
assemblies for rear and center propshafts. The
shallow ridge of the bearings should be facing
upwards.
9. Align the front propshaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
IMPORTANT
Always use a new roll pin when installing the front
propshaft onto the front gearcase. Do not reuse roll
pins.
10.Torque the center and rear propshaft support bearing
fasteners to specification.
IMPORTANT
Ensure the coolant line clip is reinstalled and torqued
down with the support bearing.
TORQUE
Support Bearing Fasteners:
33 lb-ft (45 Nm)
11. Install the skid plates on the vehicle. Refer to “Skid
Plate Replacement” page 11.90 procedure.
