8
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
8.33

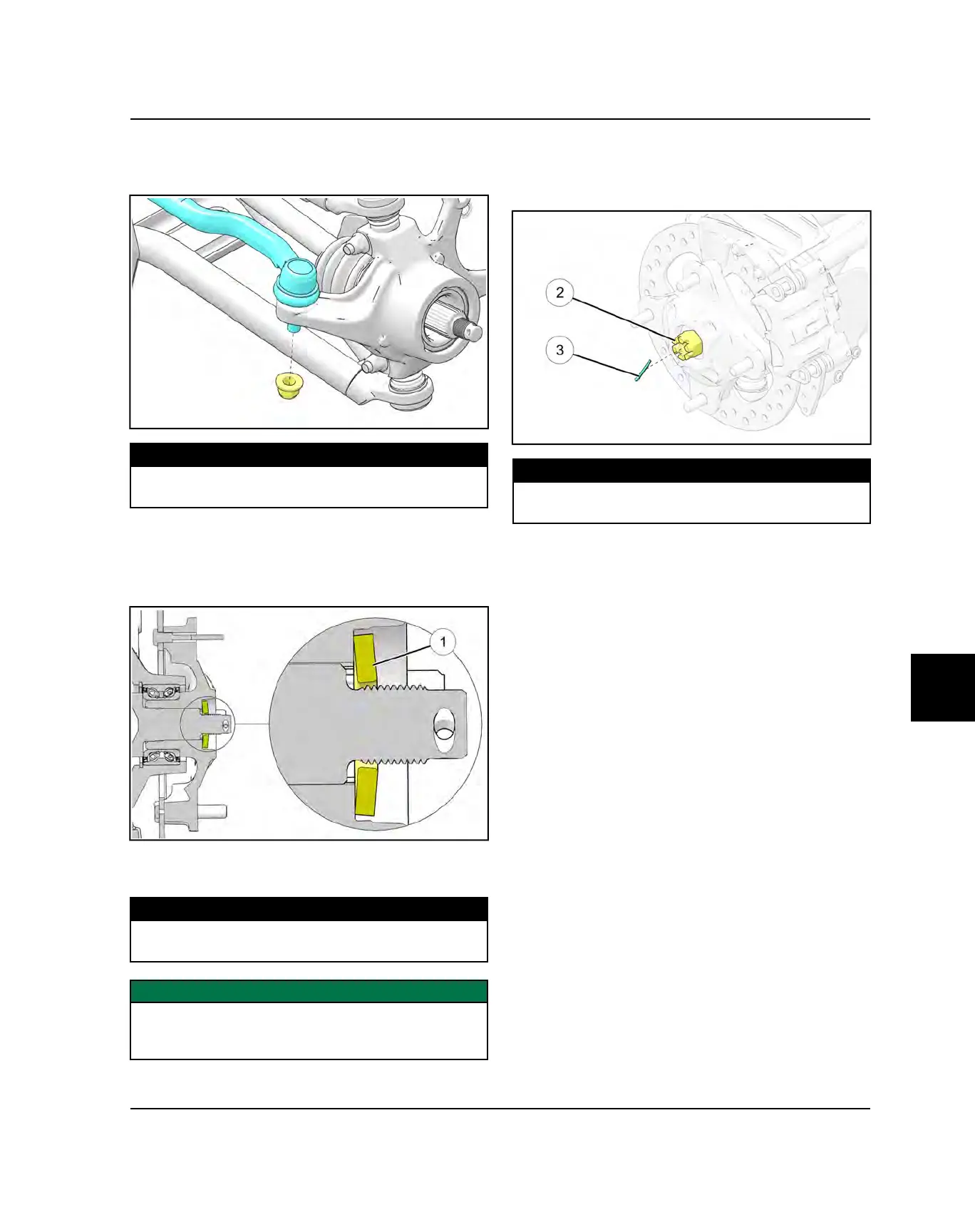

6. Install the steering tie rod end onto the front bearing
carrier. Torque the tie rod end fastener to
specification.
TORQUE
Tie Rod End Fastener:
30 lb-ft (41 Nm) + 90°
7. Apply Anti-Seize to drive shaft axle splines.
8. Install front wheel hub assembly , and cone washer
q
, Install washer with domed side out. Hand tighten
the castle nut.
9. Install NEW brake caliper mounting bolts and torque
to specification.
TORQUE
Front Caliper Mounting Bolts:
30 lb-ft (41 Nm)
IMPORTANT
New bolts have a pre-applied locking agent which is
destroyed upon removal. Always use new brake caliper
mounting bolts upon assembly.
10.Torque wheel hub nut
w
to specification and install a
NEW cotter pin
e
. Tighten nut slightly if necessary to
align cotter pin holes. Bend both ends of cotter pin
around end of spindle in different directions.
TORQUE
Wheel Hub Castle Nut:
180 lb-ft (244 Nm)
11. Install wheel and wheel nuts. Refer to “Wheel
Installation” page procedure.
12.Rotate wheel and check for smooth operation.
FINAL DRIVE
