9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.5

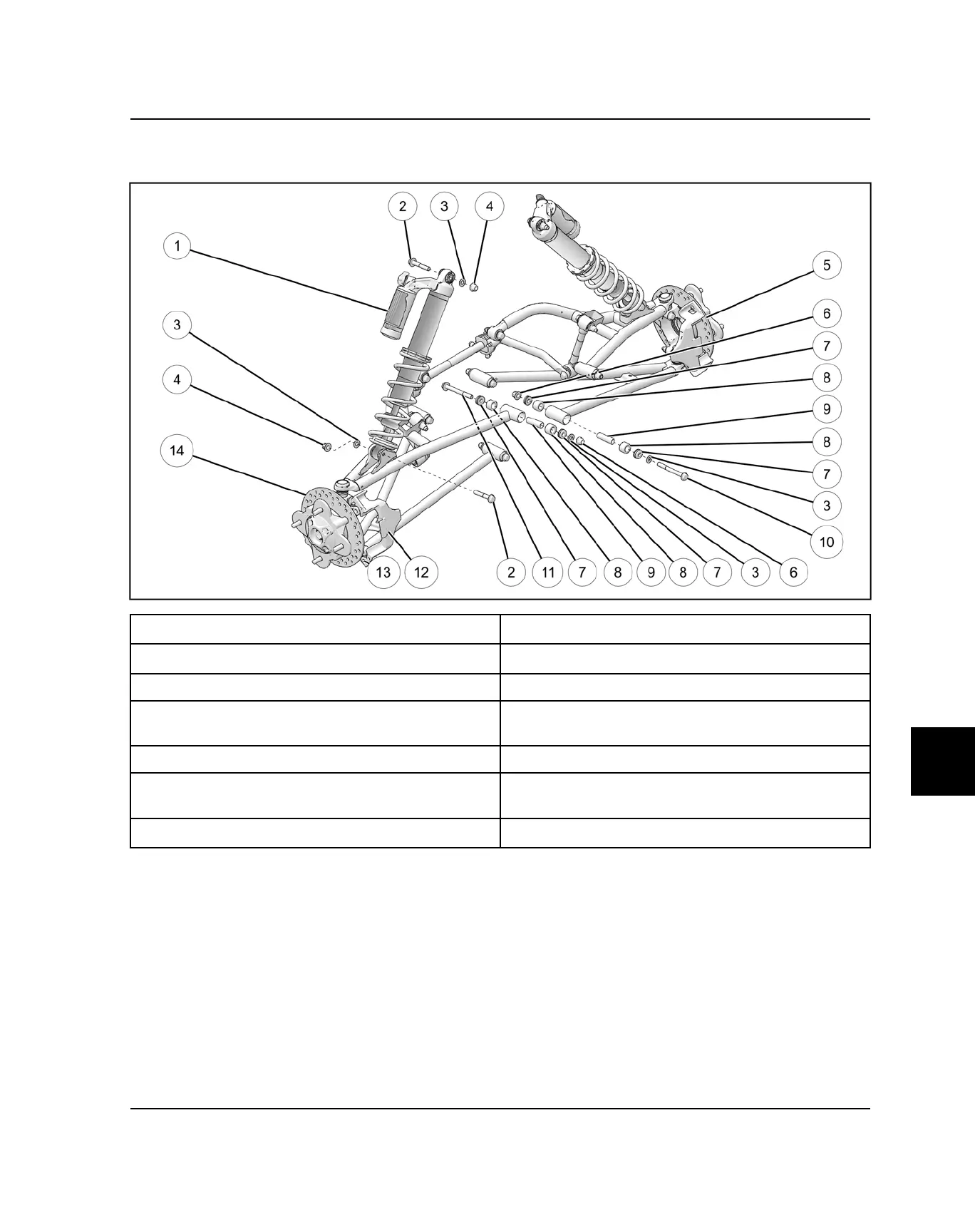

FRONT SUSPENSION ASSEMBLY VIEW
FRONT VIEW
q
Front Shock
i
Bushing
w
Shock Mounting Fasteners
o
Pivot Shaft Short
e
Washer
a
Front Lower Control Arm Fastener
r
Nut
20 lb-ft (27 Nm) + 90°
s
Front Upper Control Arm Fastener
t
LH Front Knuckle Asm.
d
Front CV Shield
y
Nut
42 lb-ft (57 Nm)
f
Front CV Shield Fasteners
35 lb-in (4 Nm)
u
Pivot Cap Asm.
g
RH Front Knuckle Asm.
STEERING / SUSPENSION
