9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.9

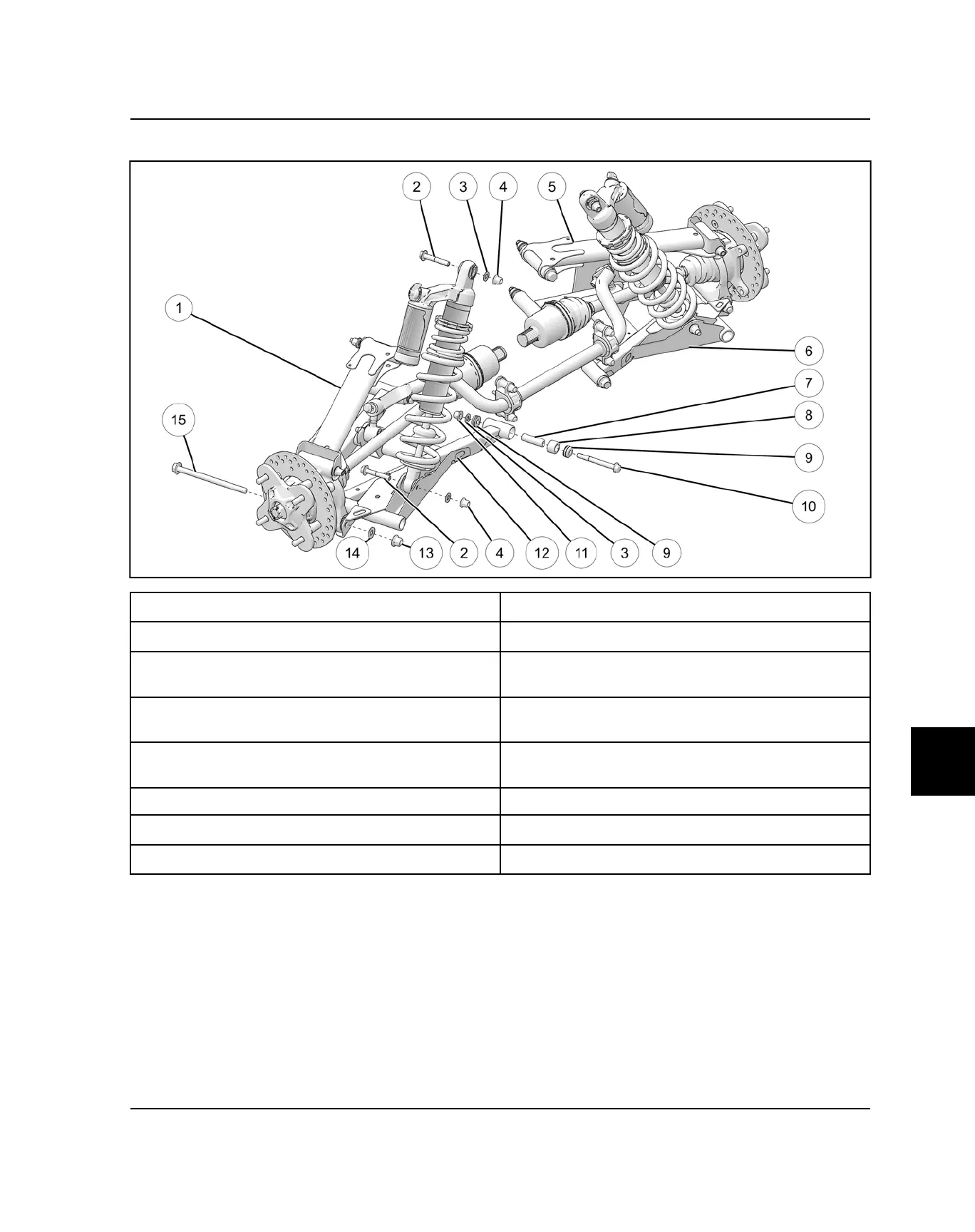

REAR VIEW
q
LH Rear Upper Control Arm
o
Pivot Cap Asm.
w
Shock Mounting Fasteners
a
Washer
e
Washer
s
Nut
40 lb-ft (54 Nm) + 90°
r
Nut
20 lb-ft (27 Nm) + 90°
d
LH Rear Lower Control Arm
t
RH Rear Upper Control Arm
f
Nut
40 lb-ft (54 Nm) + 180°
y
RH Rear Lower Control Arm
g
Washer
u
Pivot Shaft Short h
Rear Lower Bearing Carrier Mounting Fastener
i
Bushing
STEERING / SUSPENSION
