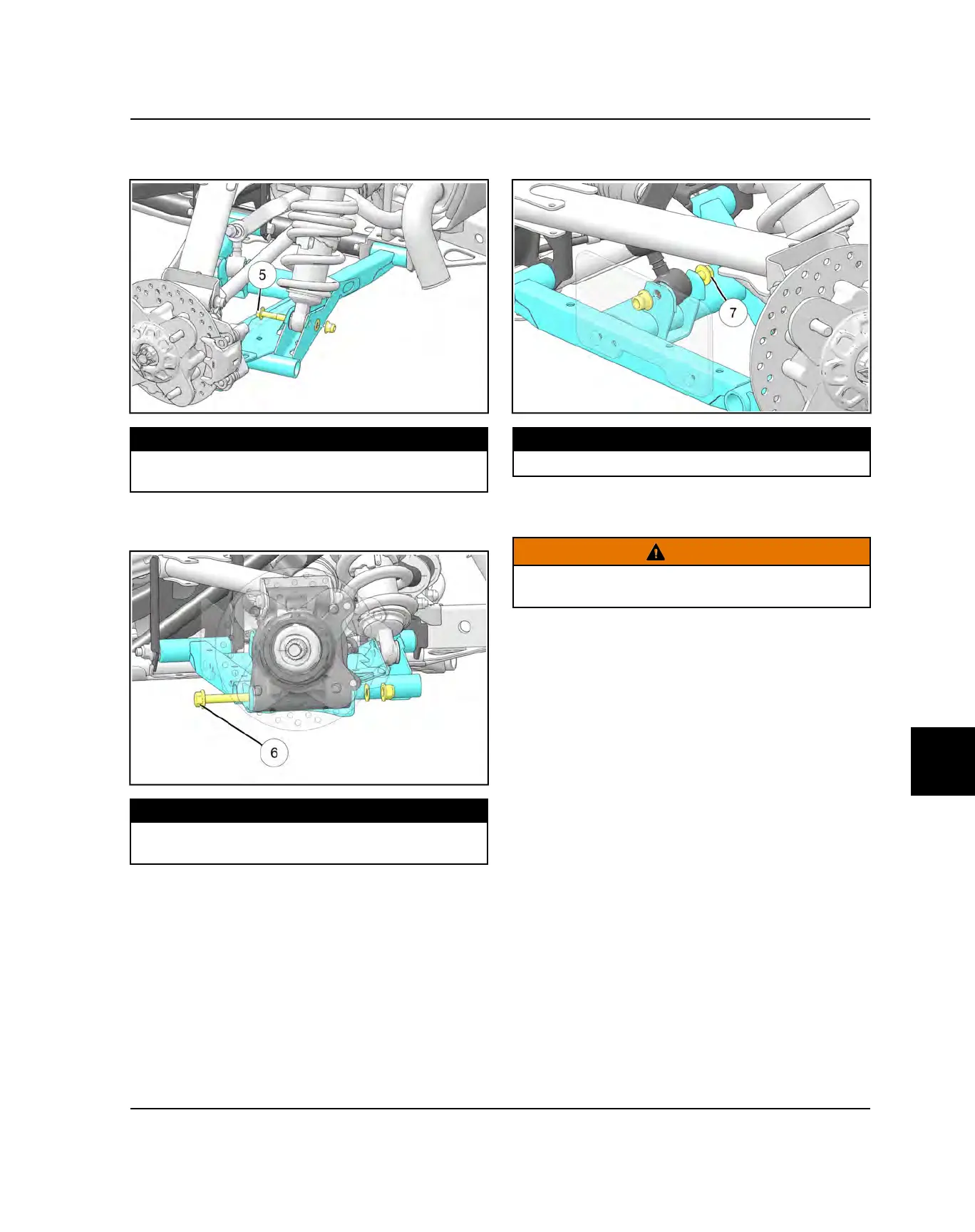

4. Attach shock to control arm with fastener. Torque
lower shock bolt to specification.
TORQUE
Shock Mount Fasteners:
20 lb-ft (27 Nm) + 90°
5. Install NEW fasteners
y
holding control arm to
bearing carrier. Torque fasteners to specification.
TORQUE
Rear Outer Lower Control Arm Fasteners:
40 lb-ft (54 Nm) + 180°
6. Attach stabilizer link to control arm with fastener
u
.
Torque to specification.
TORQUE
Stabilizer Bar Link Fastener:(42 lb-ft (57 Nm))
7. Install front wheels. Refer to “Wheel Installation”
page procedure.
WARNING
Upon control arm installation, test vehicle at low speeds
before putting into service.
