9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.43

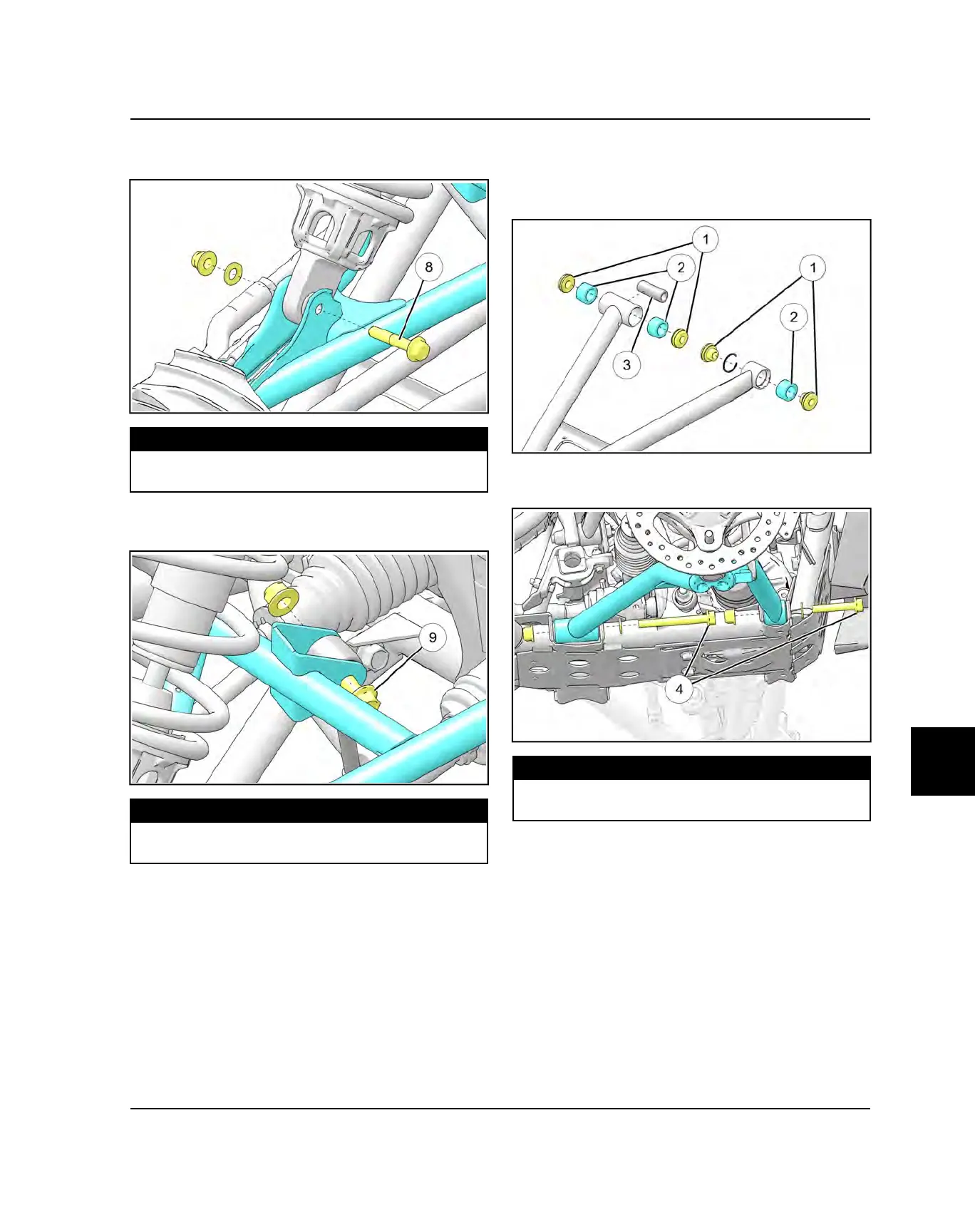

6. Attach shock to control arm with fastener
i
. Torque
lower shock bolt to specification.
TORQUE
Shock Mount Fasteners:
51 lb-ft (70 Nm)
7. Attach stabilizer link to control arm with fastener
o
.
Torque to specification
TORQUE
Front Stabilizer Bar Link Fastener:
81 lb-ft (110 Nm)
8. Install NEW ball joint into control arm. Refer to “Ball
Joint Installation” page 9.52 procedure.
LOWER CONTROL ARM
1. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm. A light press
force may be needed.
2. Install lower control arm assembly onto vehicle frame.
Torque NEW fasteners
r
to specification.
TORQUE
Front Inner Control Arm Fasteners:
81 lb-ft (110 Nm)
STEERING / SUSPENSION
