9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

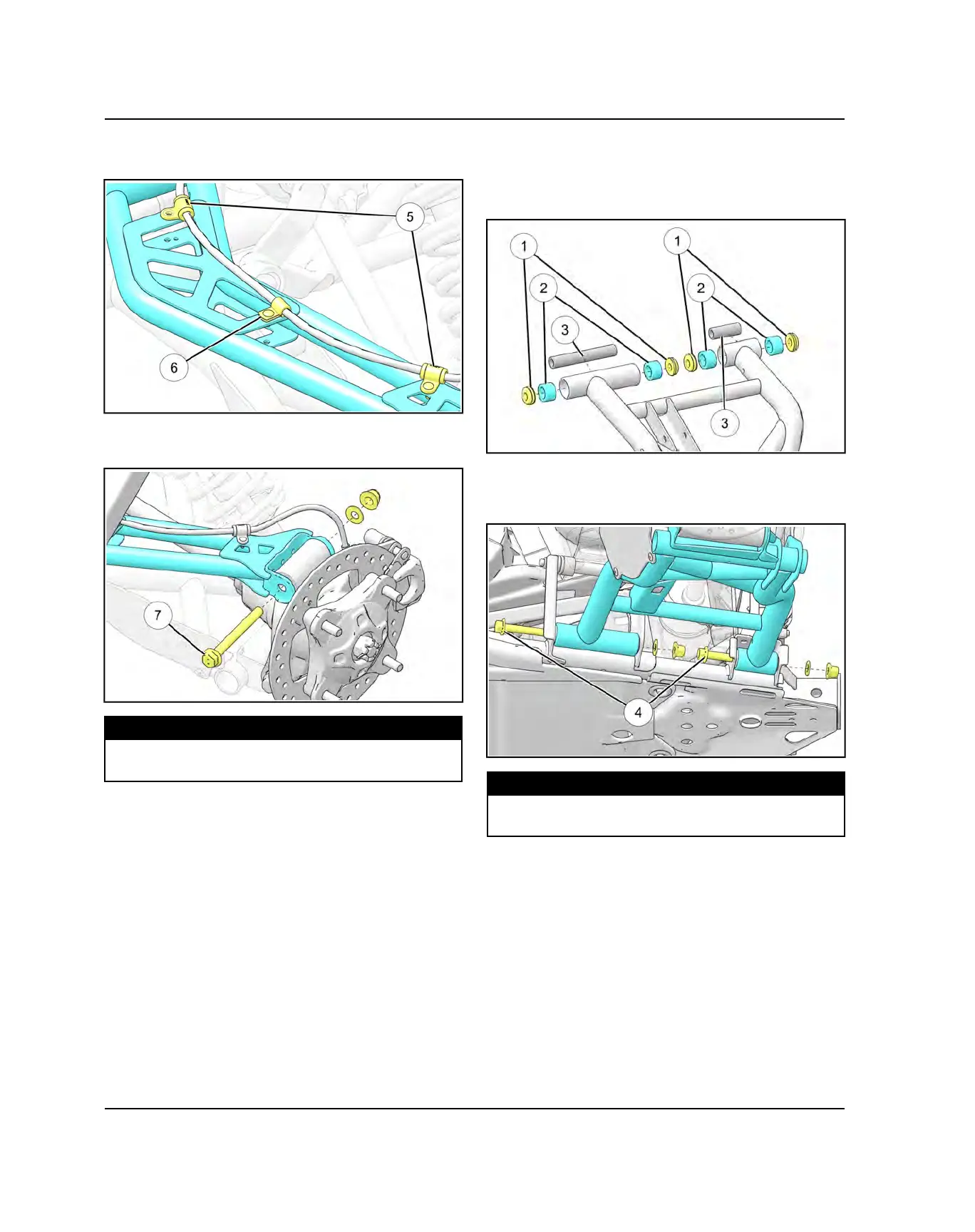

3. Secure the brake line the routing clamps
t
and wire/
tube clamp
y
onto the control arm.
4. Install NEW fasteners
u
holding control arm to
bearing carrier. Torque fasteners to specification.
TORQUE
Rear Bearing Carrier Fastener:
81 lb-ft (110 Nm)
LOWER CONTROL ARM
1. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm. A light press
force may be needed.
2. Install lower control arm assembly onto vehicle frame.
Install NEW fasteners
r
holding control arm to
vehicle. Torque fasteners to specification.
TORQUE
Rear Inner Control Arm Fasteners:
81 lb-ft (110 Nm)
