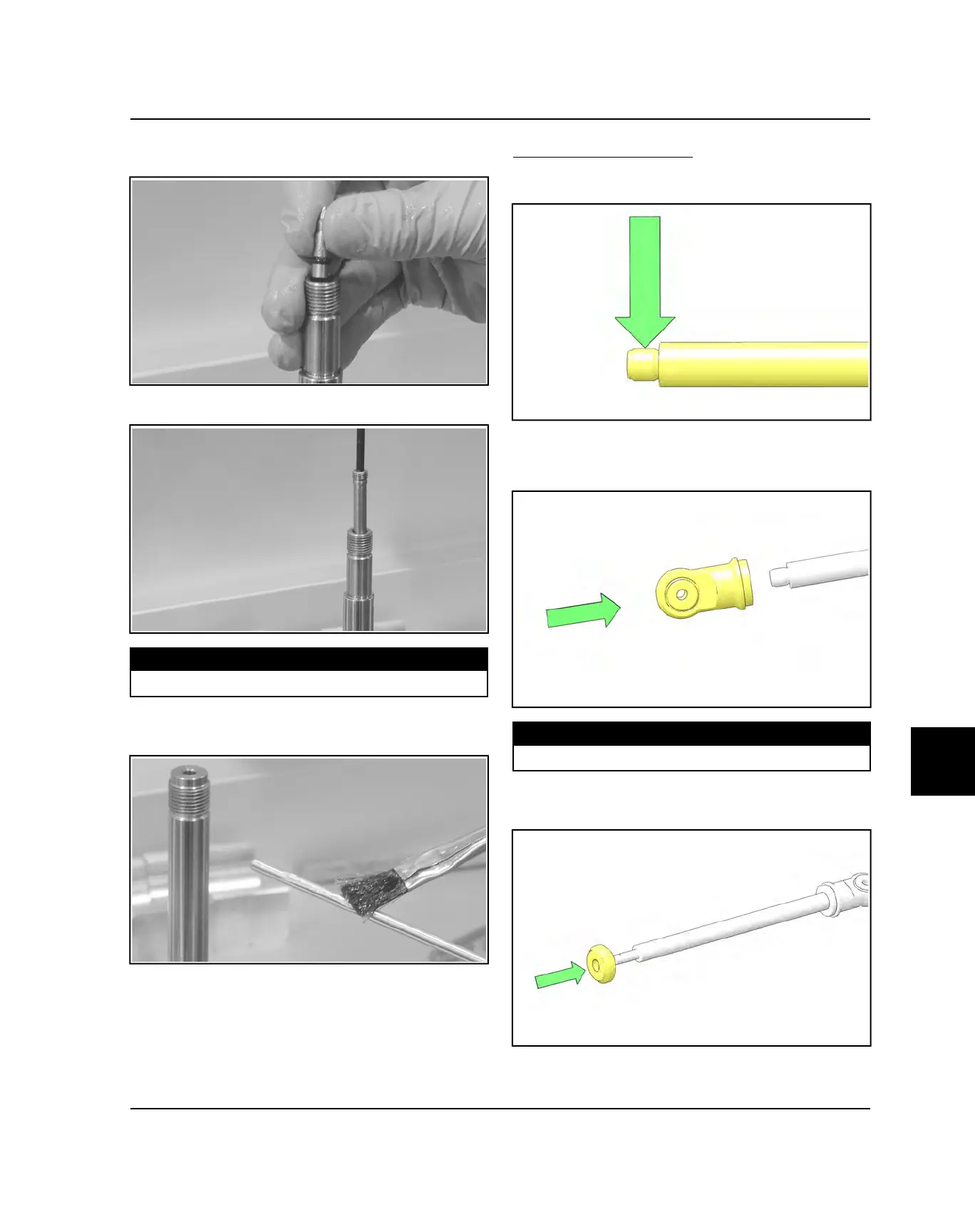

8. Place shock shaft in clamp blocks and insert needle
into shock shaft.
9. Thread in the damping jet and torque to specification.
TORQUE
Damping Jet: 40 lb-in (4.5 Nm)
10.Reverse shock shaft in clamp blocks and apply a thin
layer of Slick Honey to metering rod.
ASSEMBLY CONTINUED
1. Apply specified Loctite® two threads down and two
threads wide completely around shock shaft threads.
2. Place shaft back in clamp blocks, apply Loctite®
primer to eyelet, and Torque eyelet to shock shaft to
specification.
TORQUE
Eyelet: 30 lb-ft (41 Nm)
3. Reverse shock shaft in clamp blocks and install air
side shaft spacers (if equipped) and jounce bumper.
