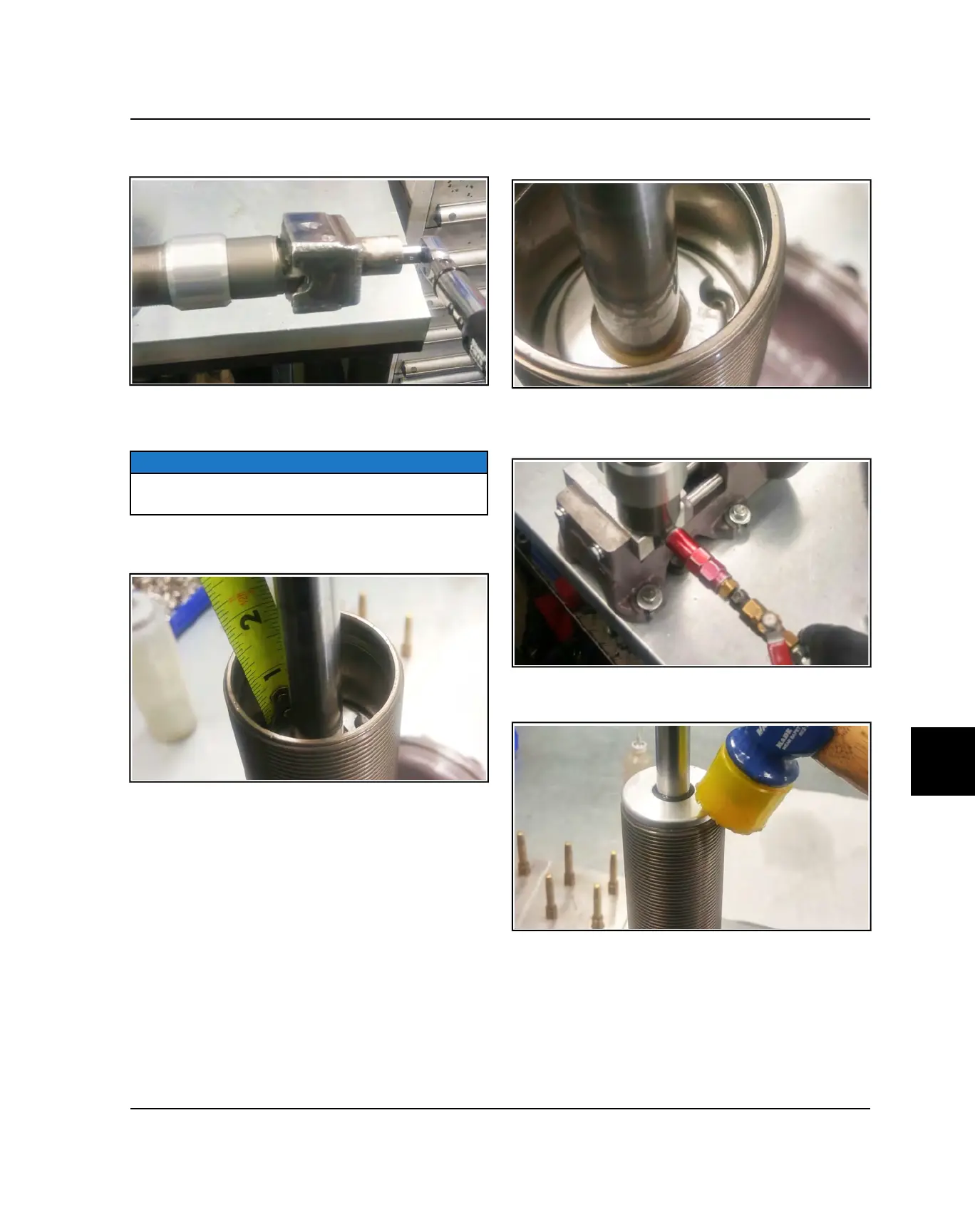

4. Thread the reservoir can to the coupler using
threadlocker.
5. Fill the main body with shock oil.
6. Install the shaft assembly.
NOTICE
Slowly cycle the shaft up and down to bleed any air
trapped under the piston.
7. With the seal case bleed screw out, push the seal
case down until it is 1.500” from top of the main body.
8. Making sure oil is on top of the seal case, pull up on
the shaft until the piston stops against the seal case.
Ensure the seal case is still 1.500” from the top of the
main body.
9. Install the bleed screw in the seal case and wire ring.
Make sure the wire ring is in its groove.
10.Slowly add nitrogen. Once the seal case seats
against the wire ring, then add all of the nitrogen
pressure.
11. Evenly tap down the wiper cap into the main shock
body.
