9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

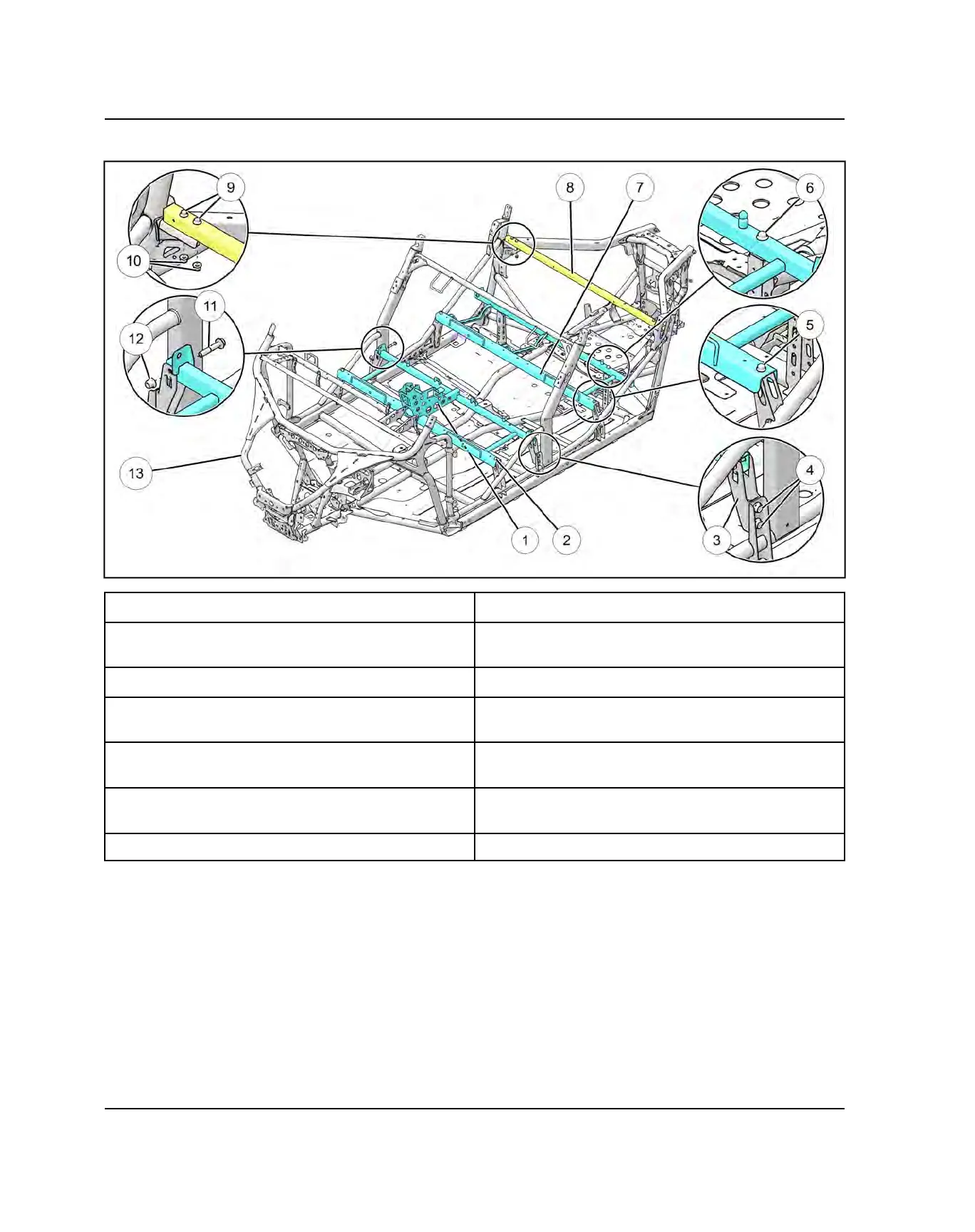

FRAME ASSEMBLY VIEW - GENERAL XP 4
q
Front Seat Base Frame
i
Top Frame
w
Front Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
o
Top Frame Fasteners
22 ft-lbs (30 Nm)
e
Seat Support Bracket
a
Nut
r
Lower Seat Support Bracket Fasteners
30 ft-lbs (41 Nm)
s
Upper Seat Support Bracket Fasteners
30 ft-lbs (41 Nm)
t
Rear Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
d
Nut
y
Rear Seat Base Frame M10 Fasteners
30 ft-lbs (41 Nm)
f
Main Frame
u
Rear Seat Base Frame
BODY / FRAME
