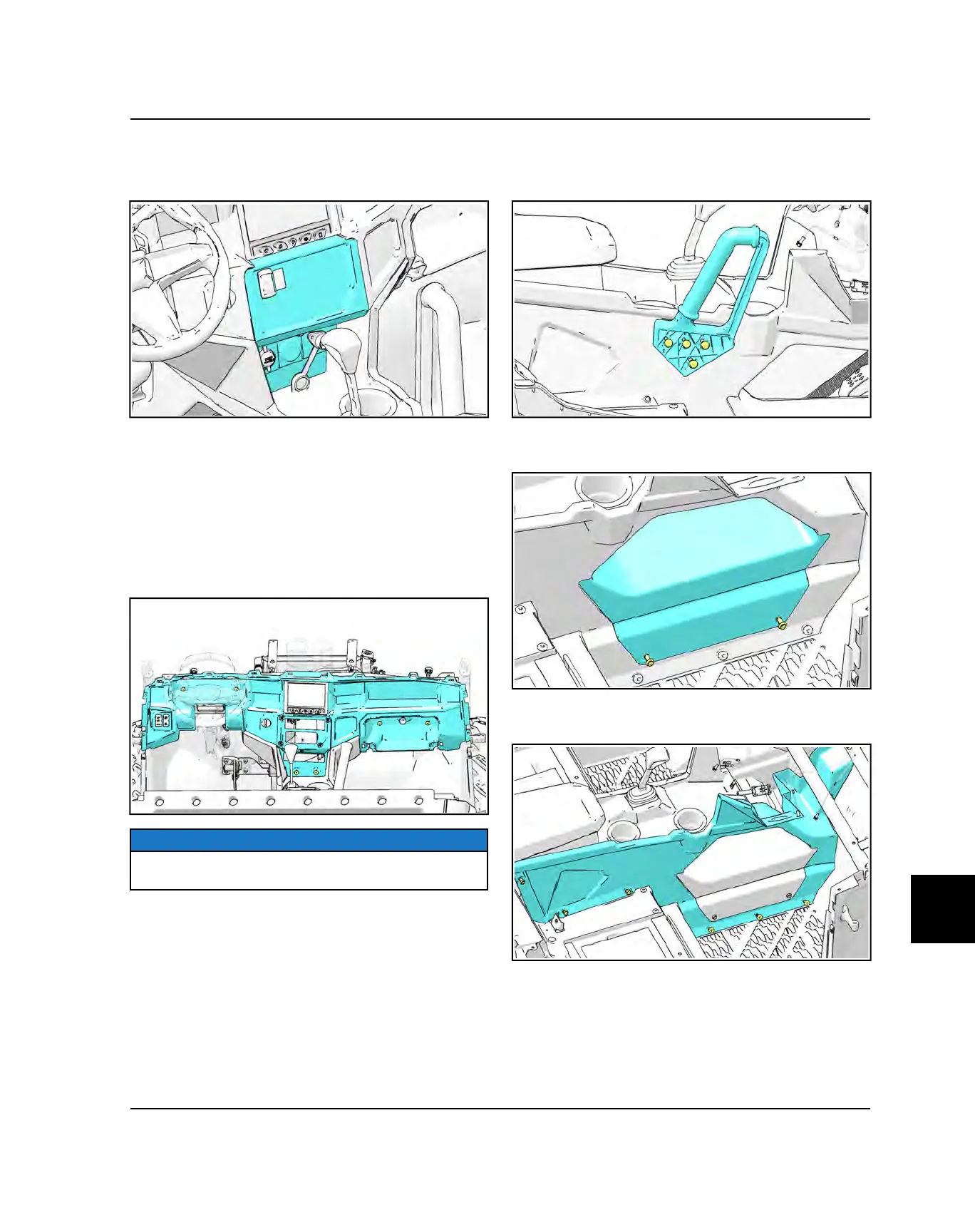

CONTROLS CONSOLE PANEL REMOVAL
1. Pull the controls console panel from the main dash
tabs.
2. Remove the wiring harness connectors components
in the controls console panel.
DASH REMOVAL
1. Remove the remaining fasteners in the glovebox,
behind the controls console panel, and behind the
speedometer display holding the main dash to the
vehicle. Disconnect the rest of the interior controls
from the wire harness and remove the main dash
from the vehicle.
NOTICE
Remove the gauge cluster, if necessary, to aid in
removal.
CENTER CONSOLE REMOVAL
1. Remove the fasteners holding the passenger grab
handle to the vehicle.
2. Remove the fasteners holding the center tunnel
access cover to the center console panels.
3. Remove the fasteners holding the RH and LH center
console panels to the vehicle.
