INSTALLATION

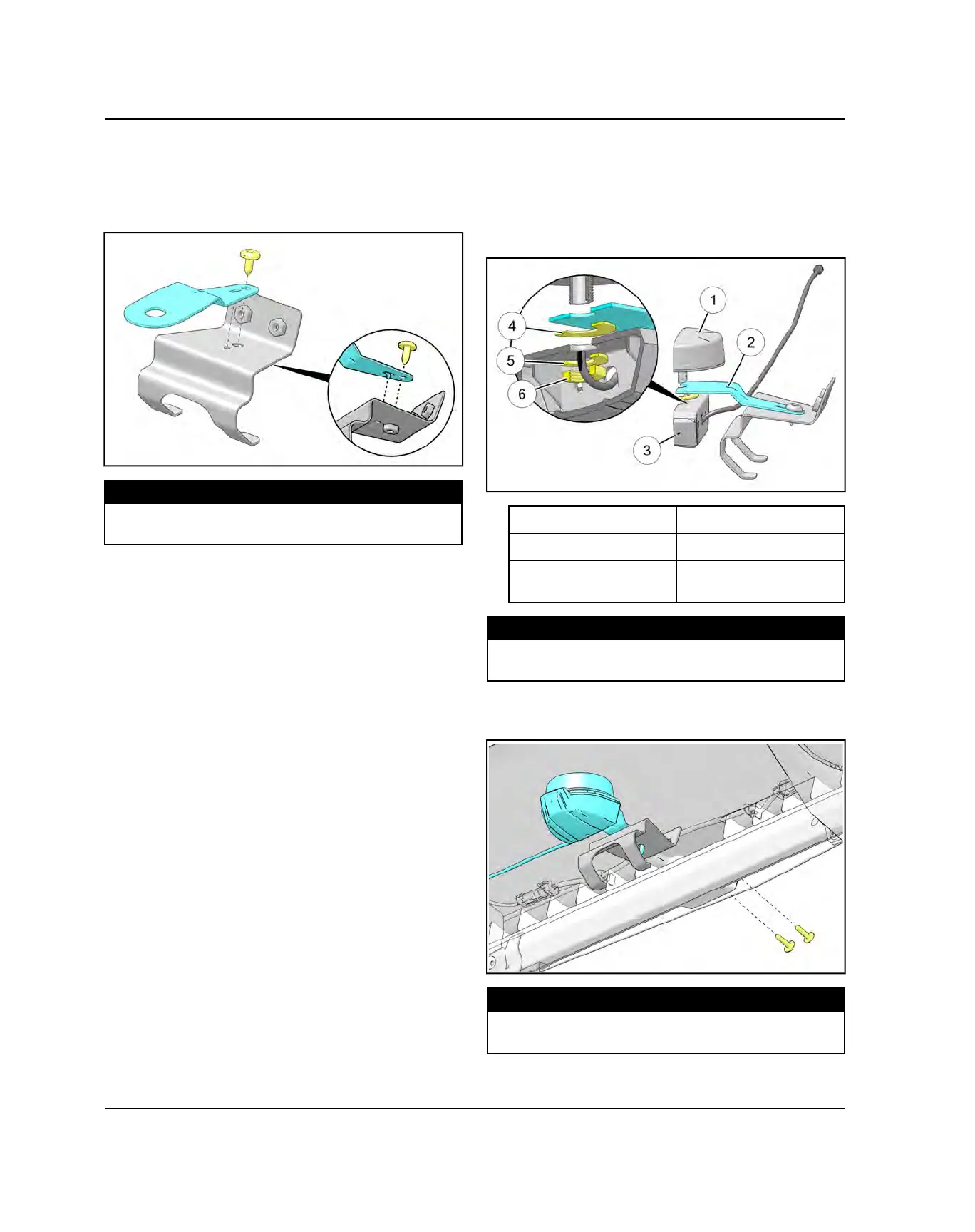

1. If removed, install antenna bracket to roof bracket
using mounting fastener. Ensure locking tang on
bottom of antenna bracket fits into hole in roof
bracket.
TORQUE
V2V Mount Bracket Fastener:
40 in-lbs (4.5 Nm)
2. If V2V antenna was removed from the antenna
bracket, open clamshell cover. Insert cable and
threaded fitting on antenna through hole in bracket,
rubber washer, and top of clamshell cover. Route
antenna cable through hole in back of cover, slide
slotted washer and slotted nut over cable, then
tighten nut. Torque to specification, then close cover.
q
V2V Antenna
r
Rubber Washer
w
Antenna Bracket
t
Slotted Washer
e
Clamshell Cover/
Bracket
y
Slotted Nut
TORQUE
Antenna Slotted Nut:
60 in-lbs (7 Nm)
3. Reinstall roof bracket and V2V antenna to roof using
two roof bracket fasteners. Torque to specification.
TORQUE
Roof Mounting Bracket Fasteners:
3.5 lb-ft (4.7 Nm)
FACTORY-INSTALLED OPTIONS
