Cylinder Head and Valves
02
020
53
DPSG,OUO1004,929 –19–16JUL99–14/15
RG9170A –UN–21JUL99

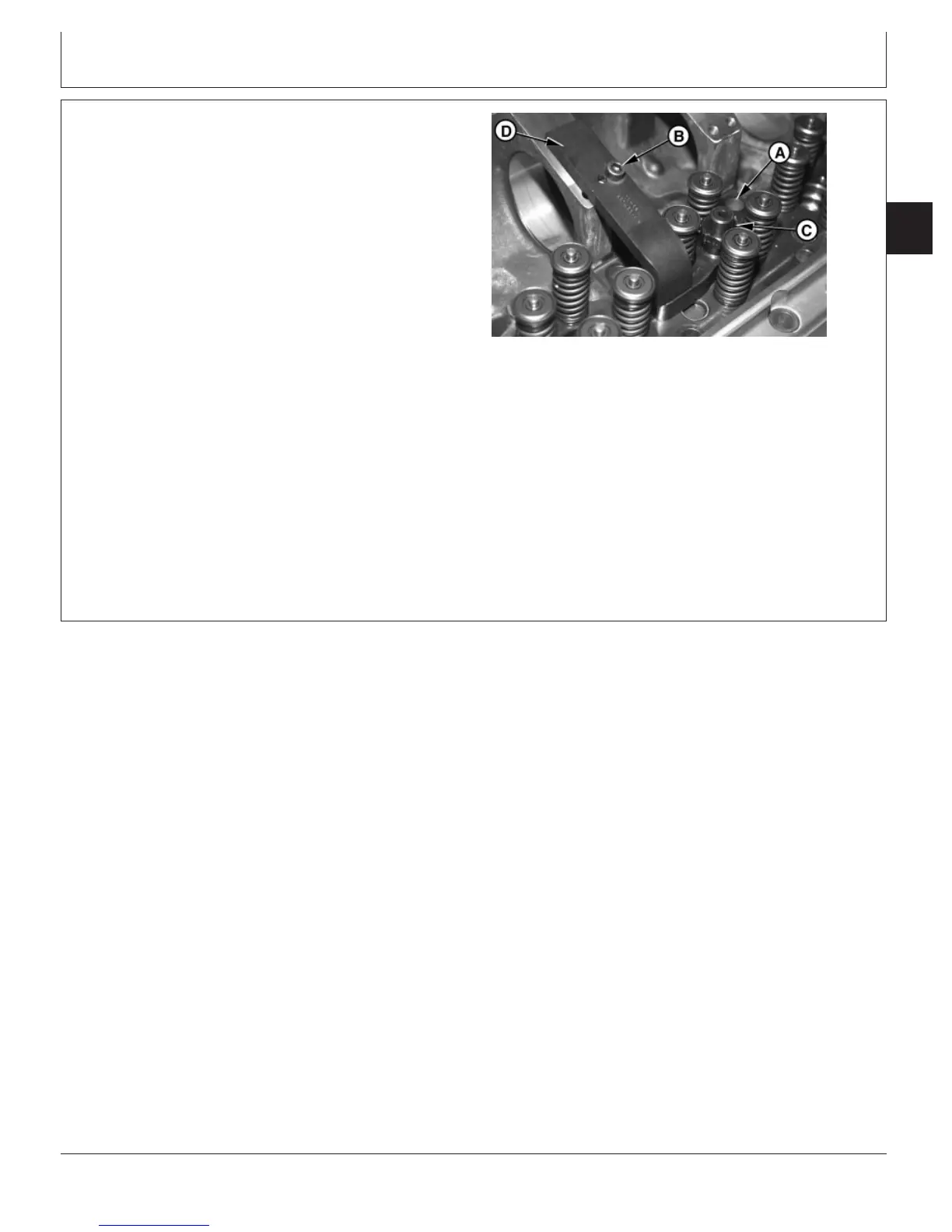

Tighten Hardware
A—Guide Sleeve Holding Bracket Cap Screw
B—Bracket Clamp Cap Screw
C—Driver Nut
D—JDG1184-2-3 Bracket Clamp
10. Install JDG1184-2-3 Bracket Clamp (D) onto rocker
arm rail as shown, and tighten cap screw (B) finger
tight.
IMPORTANT: Use only the 10 mm cap screw (B) that
is provided in JDG1184 Nozzle Sleeve
Replacement Set. Cap screws
exceeding 35 mm (1.375 in.) can
damage the camshaft bushings.
11. Tighten cap screws and nut to the following
specifications.
• Guide screw holding bracket cap screw (A) to 40
N•m (30 lb-ft.).
• Bracket clamp cap screw (B) to 68 N•m (50 lb-ft).
• Driver nut (C) to 115 N•m (85 lb-ft).
