Crankshaft, Main Bearings, and Flywheel
02
040
31
RG,RG34710,176 –19–05SEP02–3/3
RG8409 –UN–21MAY98

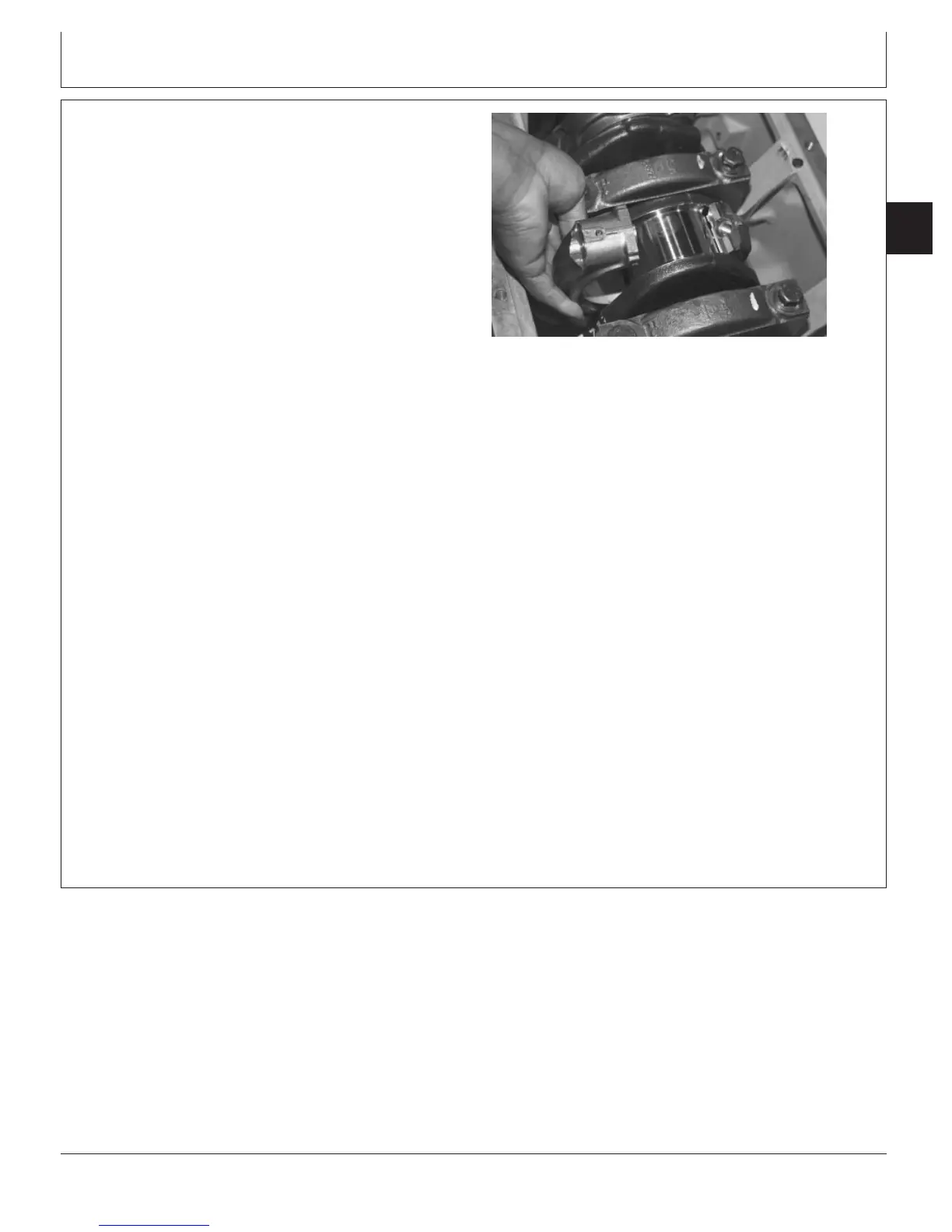

Installing Rod Caps
10. Install connecting rod caps with bearing using new
cap screws. (See INSTALL PISTONS AND
CONNECTING RODS in Group 030 for procedure to
install and tighten connecting rod cap screws.)
IMPORTANT: Do not use pneumatic wrenches to
tighten connecting rod cap screws.
Threads can be damaged.
11. Install rear oil seal housing. (See INSTALL
CRANKSHAFT REAR OIL SEAL AND HOUSING
later in this group.)
12. Install rear oil seal and wear sleeve. (See INSTALL
CRANKSHAFT REAR OIL SEAL AND WEAR
SLEEVE ASSEMBLY later in this group.)
13. Install flywheel. (See INSTALL FLYWHEEL earlier in
this group.)
14. Install flywheel housing. (See REMOVE AND
INSTALL FLYWHEEL HOUSING earlier in this
group.)
15. Install six piston spray jets. (See REMOVE AND
INSTALL PISTON SPRAY JETS in Group 030.)
16. Check crankshaft end play. (See CHECK
CRANKSHAFT END PLAY earlier in this group.)
17. Install timing gear cover. (See INSTALL TIMING
GEAR COVER later in this group.)
