Crankshaft, Main Bearings, and Flywheel
02
040
36
RG,RG34710,179 –19–05SEP02–4/6
RG10268 –UN–05NOV99

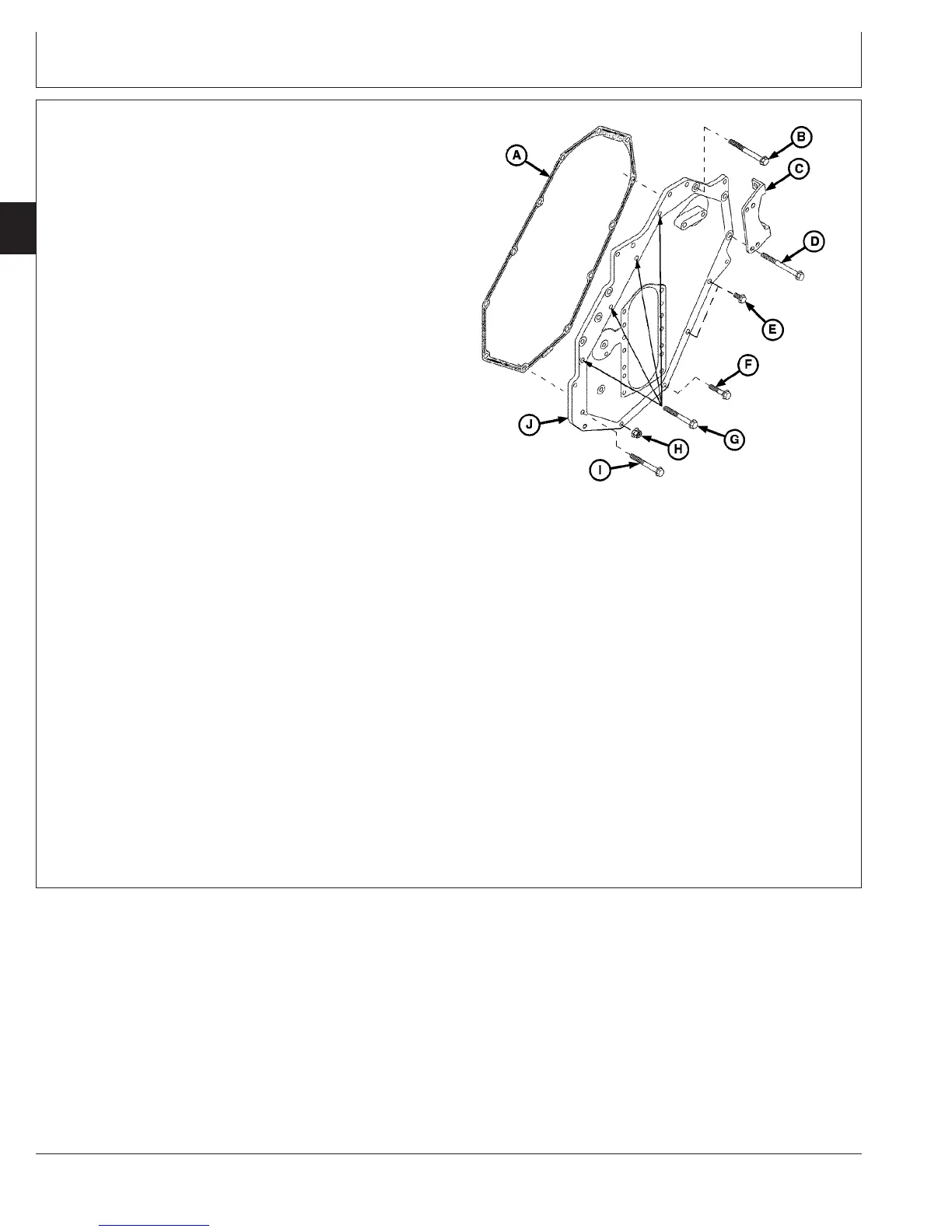

Installing Camshaft Gear Access Cover
A—Gasket
B—M10 x 110 mm
C—A/C Compressor Bracket
D—M10 x 130 mm (w/Compressor Bracket)
M10 x 110 mm (w/o Compressor Bracket)
E—M10 x 30 mm (005482— )
M10 x 100 mm ( —005481)
F—M10 x 100 mm (005482— )
M120 x 30 mm ( —005481)
G—M10 x 100 mm
H—Flange Nut
I—M10 x 100 mm (005482— )
M10 x 30 mm ( —005481)
J—Camshaft Gear Access Cover
NOTE: If fixed fan drive assembly (cast into camshaft
gear access cover) was removed, it must be
reinstalled before installing access cover. In this
case, be sure cap screw (F) is installed in cover
before pressing on fan hub/pulley. (See
REPLACE BEARINGS IN FAN DRIVE
ASSEMBLY in Group 070.)
IMPORTANT: On earlier engines where sealant was
applied, clean timing gear cover and
camshaft gear access cover gasket
surfaces with TY16285 Clean and Cure
Primer prior to assembly. Follow
directions on label.
11. On earlier engines with Fel-Pro gaskets only, soak
both sides of new camshaft gear access cover gasket
(A) with LOCTITE

242 Thread Lock and Sealant and
let dry for 15 minutes or until dry to the touch.
Applya3mm(1/8 in.) wide bead of LOCTITE

515
Flexible Sealant to timing gear cover side of gasket.
12. Carefully install gasket on timing gear cover mounting
surface.
On later engines with press-in-place silicon
rubber gaskets, ensure gasket is properly seated in
grooves of timing gear cover.
13. Install camshaft gear access cover and wipe off
excess sealant, if used.
LOCTITE is a registered trademark of Loctite Corp.
Continued on next page
CTM100 (06APR04)
02-040-36
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=232
