Crankshaft, Main Bearings, and Flywheel
02
040
37
RG,RG34710,179 –19–05SEP02–5/6
RG10268 –UN–05NOV99

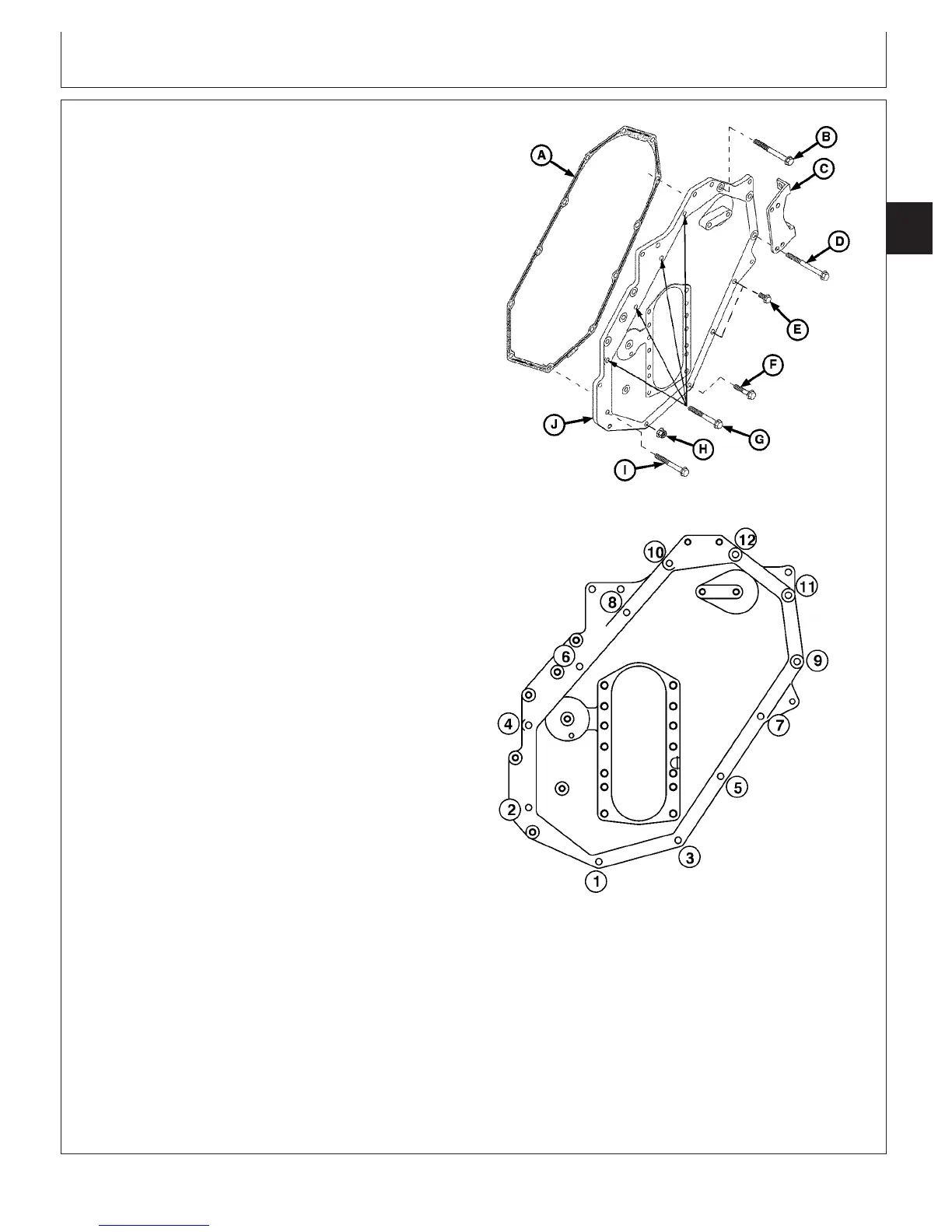

Installing Camshaft Gear Access Cover
RG8811 –UN–20MAY98
Camshaft Gear Cover Torque Sequence
A—Gasket
B—M10 x 110 mm
C—A/C Compressor Bracket
D—M10 x 130 mm (w/Compressor Bracket)
M10 x 110 mm (w/o Compressor Bracket)
E—M10 x 30 mm (005482— )
M10 x 100 mm ( —005481)
F—M10 x 100 mm (005482— )
M120 x 30 mm ( —005481)
G—M10 x 100 mm
H—Flange Nut
I—M10 x 100 mm (005482— )
M10 x 30 mm ( —005481)
J—Camshaft Gear Access Cover
14. Install cap screws (B), (D—G) and (I), and nut (H) in
respective locations.
NOTE: Earlier engines with Fel-Pro gaskets using sealant
require an initial torque and a final torque
sequence. Later engines with press-in-place
gaskets require only a final torque.
15. Initially tighten cap screws (and stud nut) to
specification, following sequence in lower drawing.
Specification
Camshaft Gear Access Cover
Cap Screws (Early Engines
Only)
1
—Initial Torque 50 N•m (37 lb-ft)......................................................
Finish tightening camshaft gear access cover cap screws
(following sequence in lower drawing) to the following
specification.
Specification
Camshaft Gear Access Cover
Cap Screws—Final Torque 68 N•m (50 lb-ft).............................................
16. Install engine oil pan. (See INSTALL ENGINE OIL
PAN in Group 060.)
17. Install crankshaft vibration damper. (See INSTALL
CRANKSHAFT VIBRATION DAMPER AND FRONT
OIL SEAL next in this group.)
1
Initial torque is required only on early timing gear covers using Fel-Pro
gaskets with sealant.
CTM100 (06APR04)
02-040-37
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=233
Continued on next page
