Repair Tools and Other Materials
OUO1004,0000BC3 –19–01NOV00–3/16
RG8519 –UN–20MAY98
JDG971

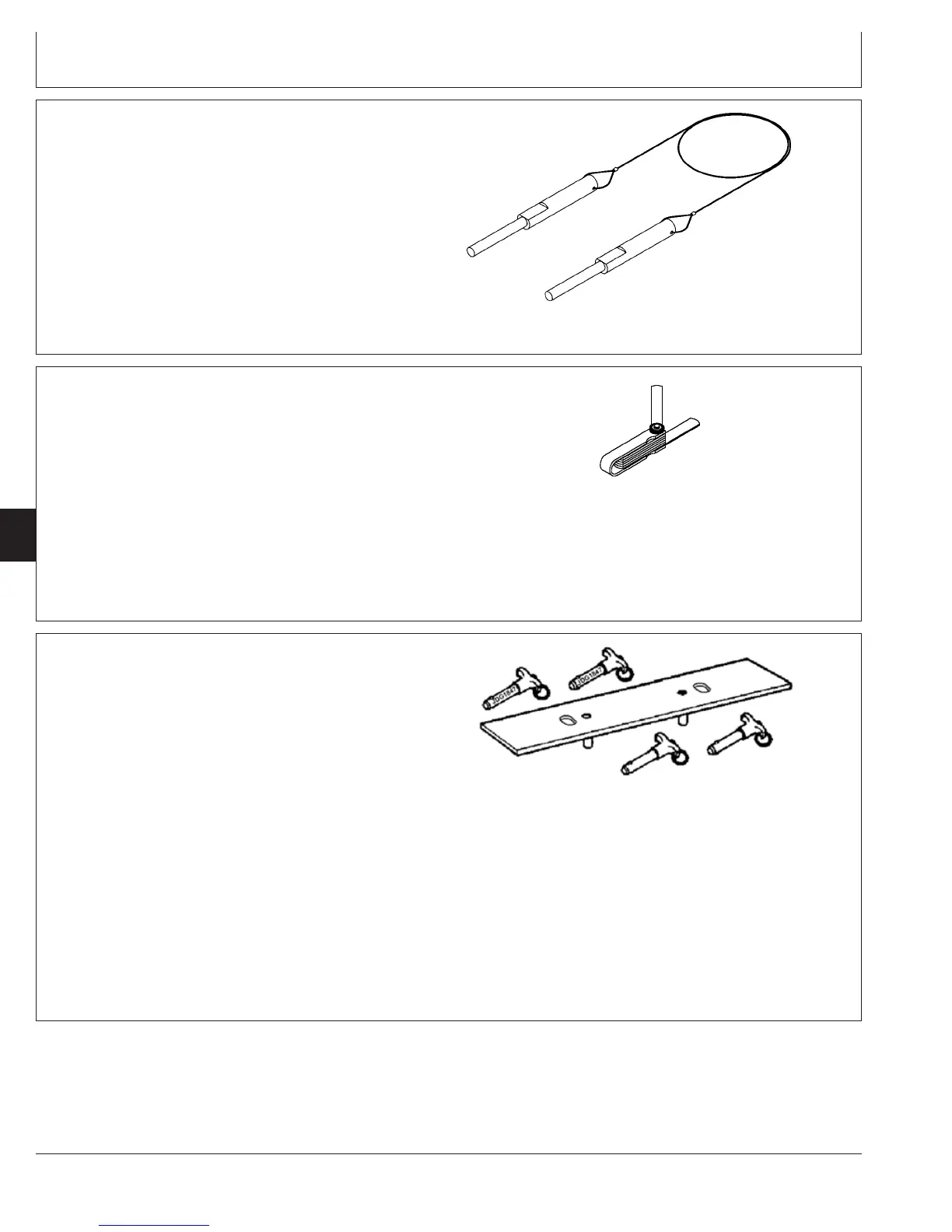

Cam/Crankshaft Timing Lock Pins ..........JDG971
Set of two. Used to lock camshaft and crankshaft at “Top
Dead Center” during timing gear backlash adjustment.
Use on crankshaft only for valve clearance adjustments.
Set consists of two 313796 Lock Pins.
05
170
2
OUO1004,0000BC3 –19–01NOV00–4/16
RG10382 –UN–05NOV99
JDG1333
Feeler Gauge Set ....................JDG1333
Used to check intake and exhaust valve stem-to-bridge
clearance.
OUO1004,0000BC3 –19–01NOV00–5/16
RG8502A –UN–10MAR04
JDG970A
Rocker Arm Assembly Lifting Fixture........JDG970A
Use to correctly position rocker arm assembly during
removal and installation. Set consists of a holding plate
and two 221808 Ball Locking Pins. Note: A second set
of pins has been added to this tool. With Tier II
engines (engine serial no. 030000—), the holes in the
rocker arm shaft are smaller. The new pins have a
smaller diameter shaft and are marked “JDG1847”. BE
CERTAIN to verify the engine serial number, then use
the correct pins for that engine.
Continued on next page
CTM100 (06APR04)
05-170-2
P
OWER
T
ECH
10.5 L & 12.5 L Diesel Engines
040604
PN=376
