© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 125
3 Remove the platform.

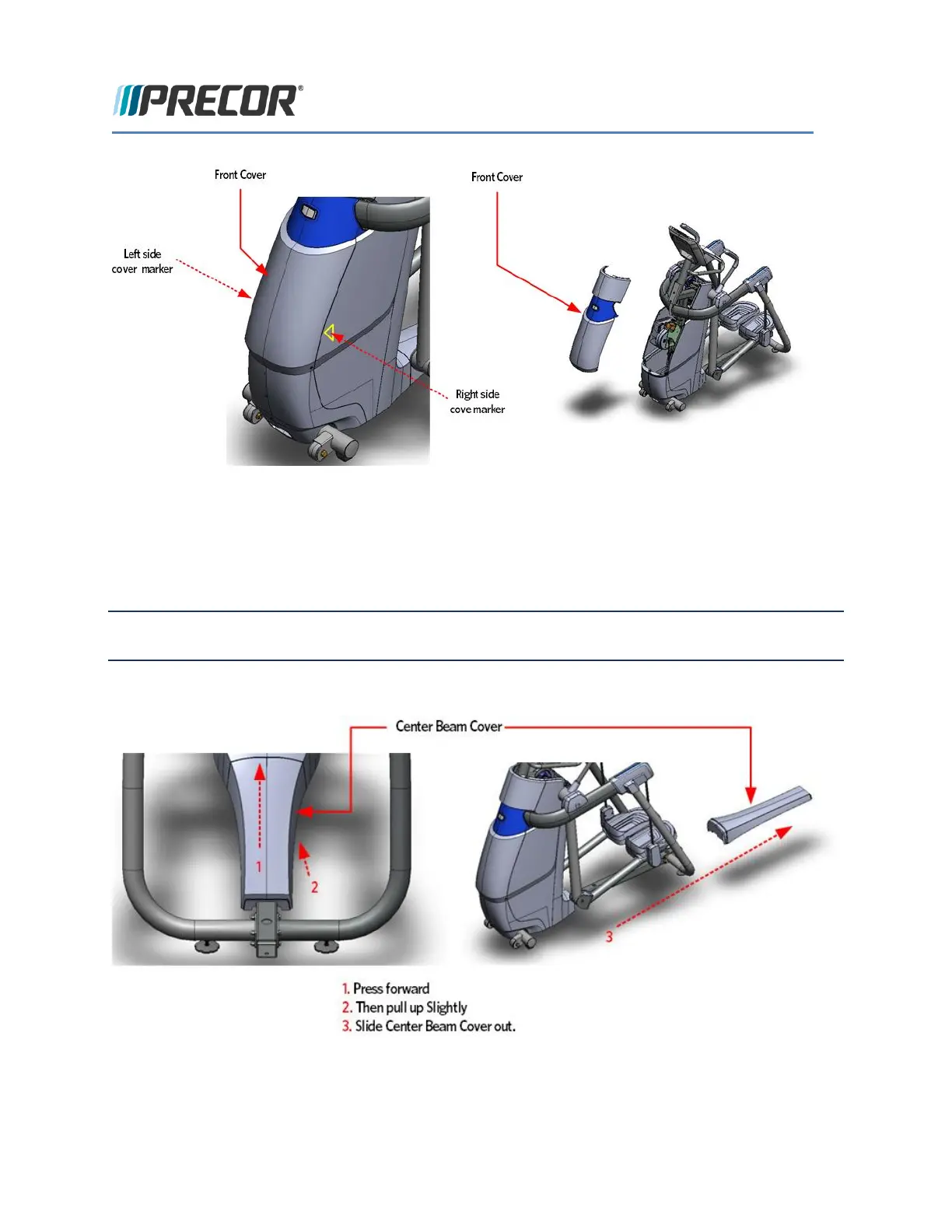

4 Apply forward pressure at the base of center beam cover, lift the cover up slightly until the locking tab
is clear of the frame.
5 Pull the center beam cover back toward you until the cover is free from the frame.
Note: Do not lift the cover up right after the front cover tab releases, lifting up the cover too quickly may not
allow the middle center beam tabs to clear the frame slots, damaging the tabs.
