© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 126

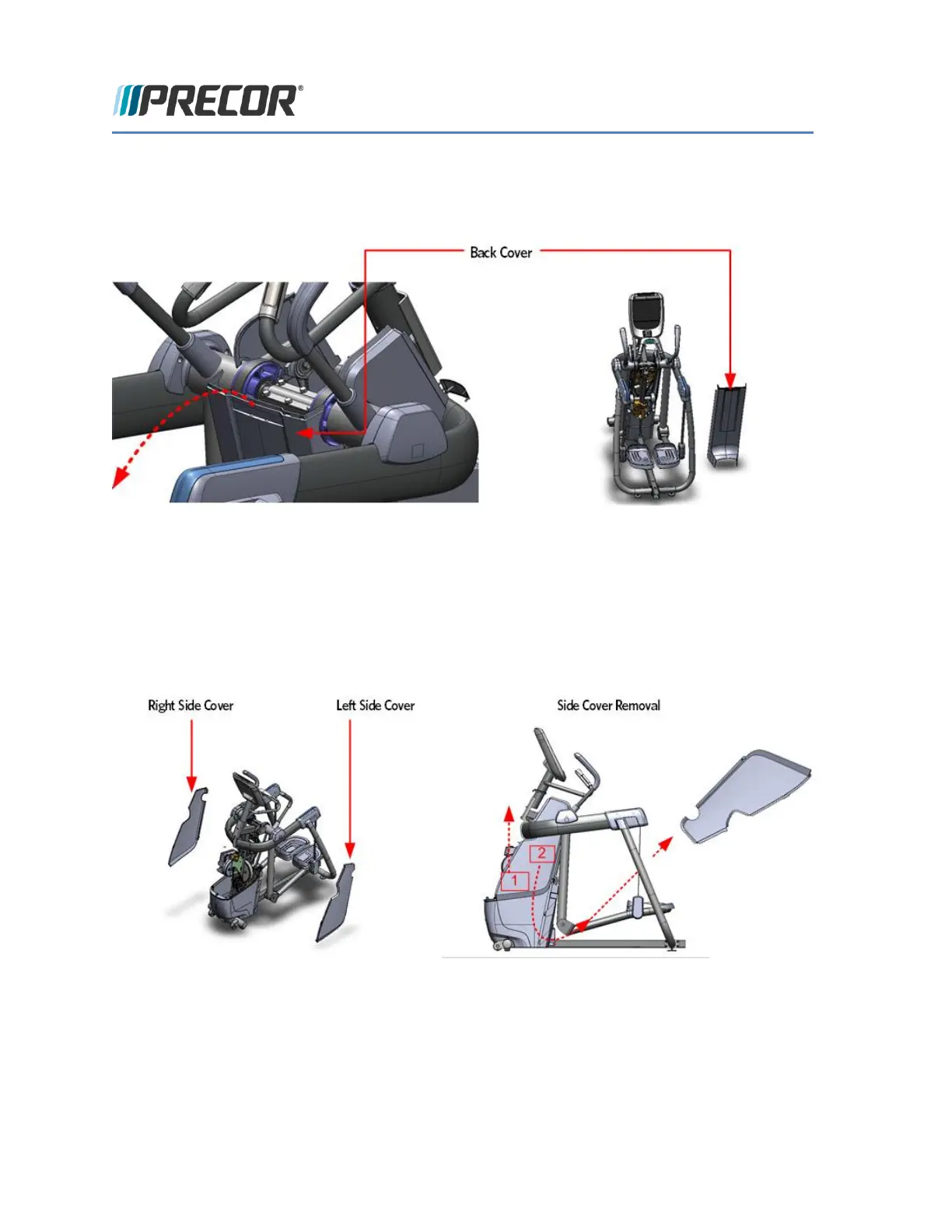

6 Grasp the top of the rear cover and pull back, the back cover will release from the locking tab and then
the cover can be lifted out of the slots in the bottom covers.
7 Grasp each side of the left side cover, near the bottom, lift up and then pull the bottom of the cover out
and away from the frame. The cover will release from the locking tabs.
8 Rotate the bottom of the side cover towards the back of the AMT to remove.
9 Repeat steps 1 and 2 to remove the right side cover.
10 Remove the eight #10 x ¾ inch screws that fasten the bottom covers to the frame.
