© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 127

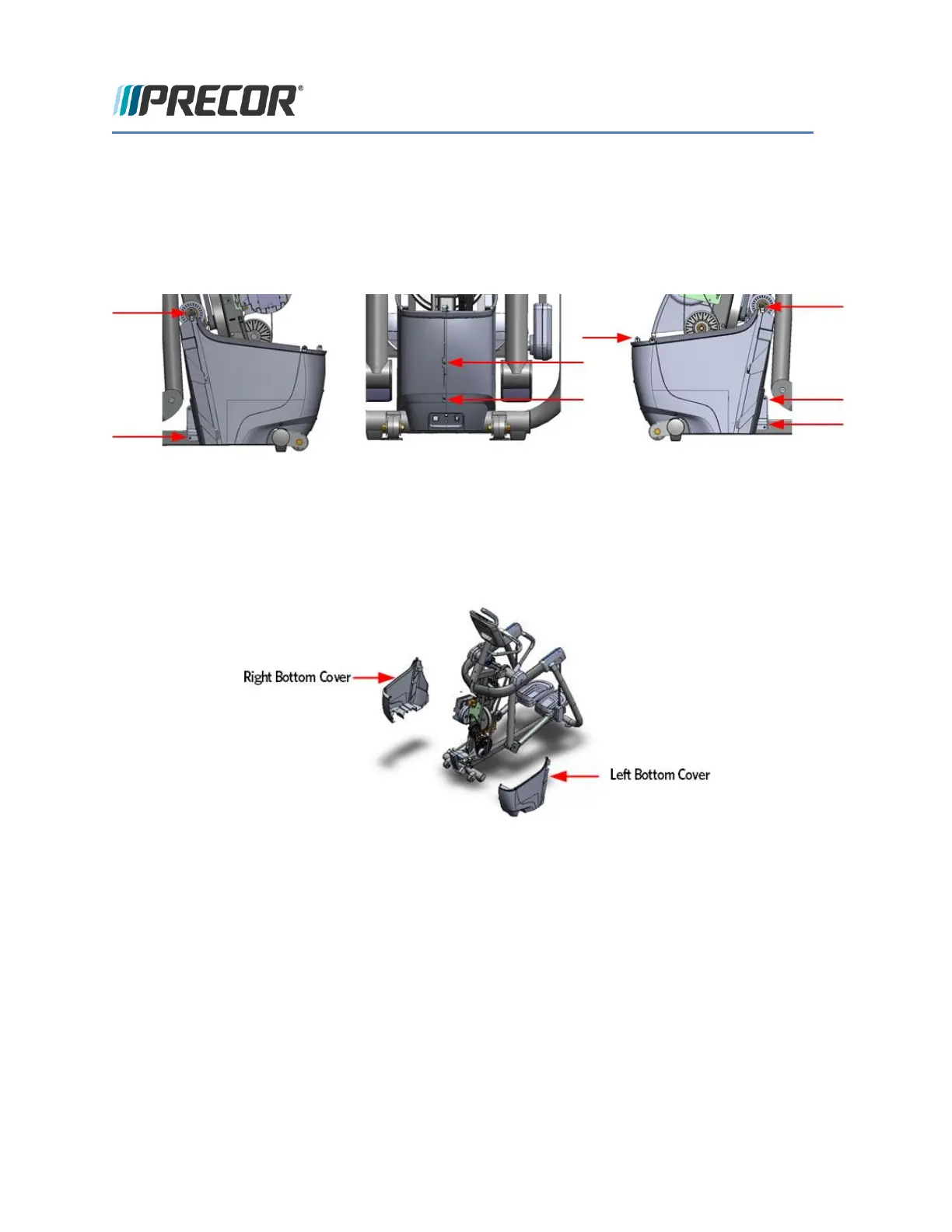

FIGURE 96: LEFT AND RIGHT SIDE COVER SCREW LOCATIONS
11 The left and right side bottom covers can now be removed by lifting them up and out.
FIGURE 97: BOTTOM COVERS REMOVED
12 Remove the screw that secures the belt keeper to the frame and remove the belt keeper.
13 Remove the tension from the inner flat belt pulleys by lifting up on the stairarms, pulling the flat belts off
the flat belt pulleys, and then gently setting the stairarm down.
Upper Arm Cam Cover Removal
14 Remove the two #10-24X1.25 screws that secure the upper arm cam covers to the upper arm, then
remove the covers. It may be necessary to adjust the position of the vertical handlebar to gain access
to the upper arm cam cover screws.
15 Repeat the steps for the remaining upper arm cam cover.
