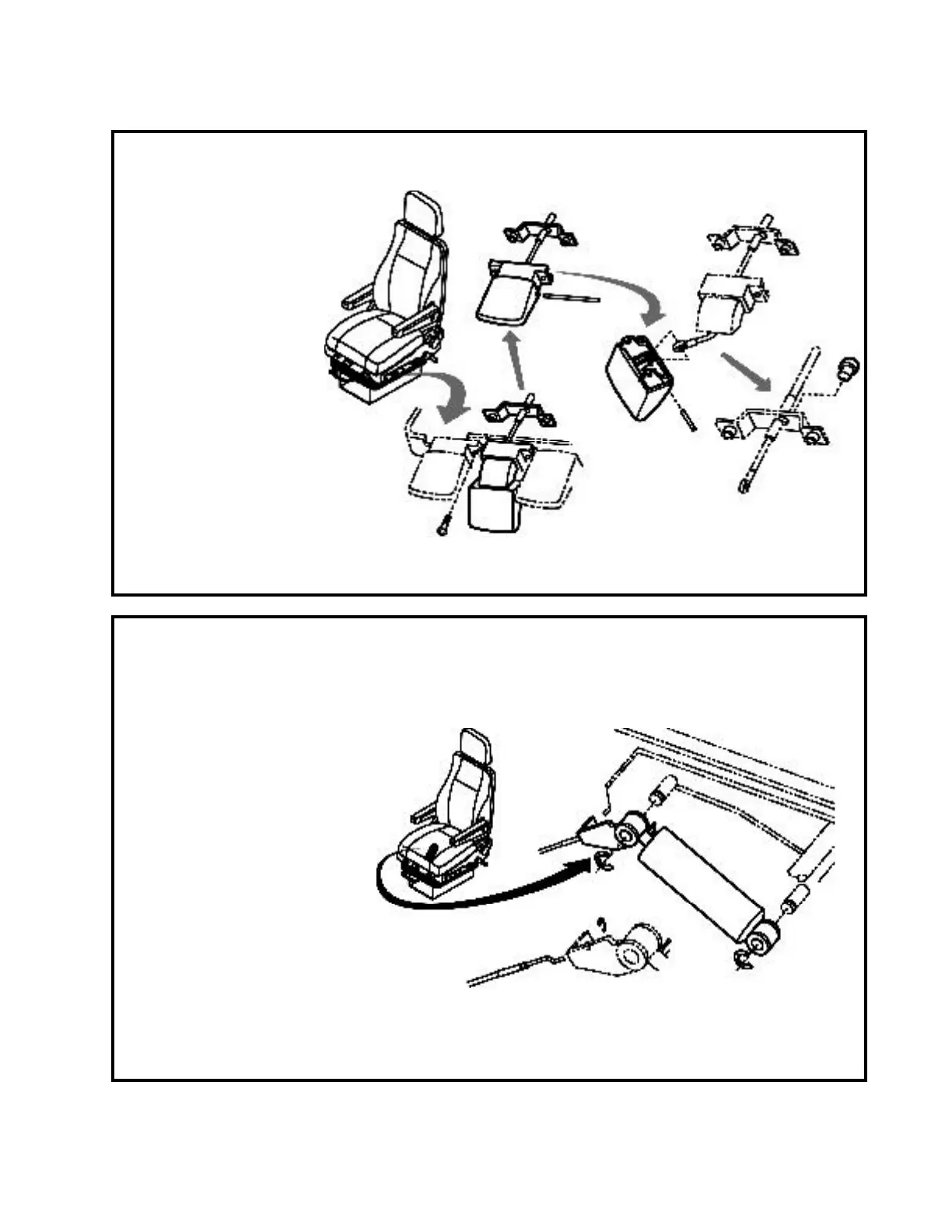

REMOVAL and INSTALLATION
MODEL 6800/338 BUS
MODEL 6800/338 PREMIUM LX
Adjustable shock absorber
handle and cable
(handle end)
Set up
• Seat cushion must be removed from
seat (see Cushion seat pan)
Removal
• Remove fasteners and move
control, bracket, and cable
up away from seat frame
• Remove control handle pin
and control handle
• Remove cable pin and cable
• Remove plug from bracket and
remove cable
Installation
• Put cable in bracket and secure with
plug
• Route cable through control body
and fasten to control handle with pin
• Fasten control handle to control body
with pin
• Fasten control and bracket to frame
with screws
Adjustable shock absorber and
cable (shock absorber end)
Set up
• Vehicle must be in a safe parked position or
seat removed from vehicle
• Seat cushion must be removed
from seat (see Cushion seat pan)
Removal
Adjustable shock absorber
• Remove retaining rings
• Remove shock absorber
Adjustable shock absorber cable
• Remove retaining ring
• Remove cable
Installation
Adjustable shock absorber cable
• Put cable in place
• Install retaining ring
Adjustable shock absorber
• Put shock absorber in place
• Install retaining rings
