PREVOST X3-45 Multiplex User Manual

Page No.18
NDS2 issue A
Spicer SpecialityAxle Division - Technical Publications
© Spicer Speciality Axle Division
PART N
O
DESCRIPTION TIGHTENING TORQUE
1 Wheel nut M18 x 1.5 ----------------------------------------------- 235 - 260 lbs.ft 318 - 352NM
Wheel nut M20 x 1.5 ----------------------------------------------- 285 - 315 lbs.ft 386 - 427NM
Wheel nut M22 x 1.5 ----------------------------------------------- 475 - 525 lbs.ft 644 - 712NM
5 Brake air cylinder retaining nuts M16 X 1.5------------------ 133 - 155 lbs.ft 180 - 210NM
6 Brake Caliper Mounting Bolt M14 x 1.5 ----------------------- 174 - 192 lbs.ft 236 - 260NM
Brake Caliper Mounting Bolt M16 x 1.5 ----------------------- 266 - 294 lbs.ft 360 - 399NM
Brake Caliper Mounting Bolt M18 x 1.5 ----------------------- 372 - 412 lbs.ft 504 - 559NM
Brake Caliper Mounting Bolt M20 x 1.5 ----------------------- 520 - 574 lbs.ft 705 - 778NM
10 Hub flange retaining bolt M14 x 1.5---------------------------- 174 - 192 lbs.ft 236 - 260NM

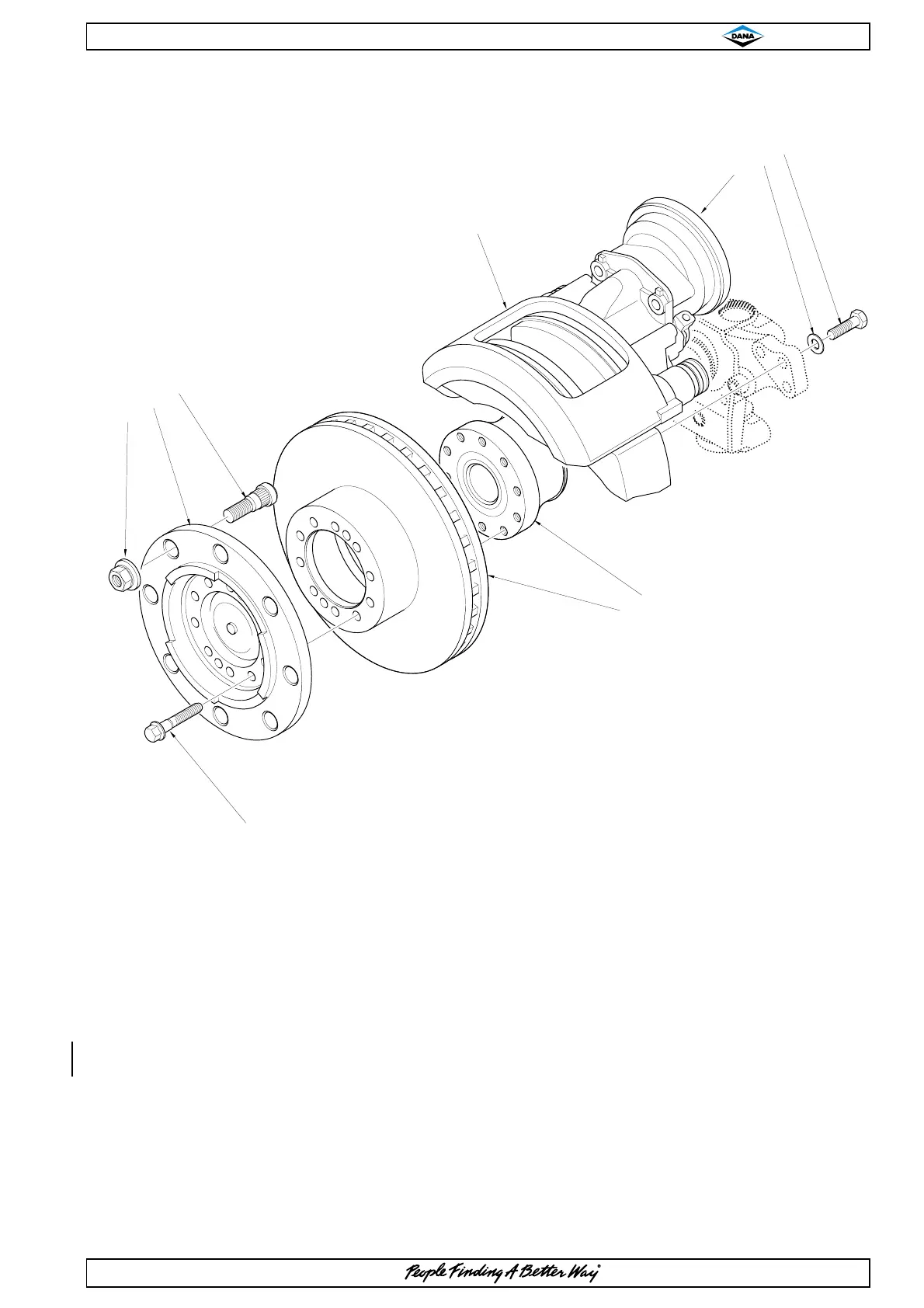

Fig.No.22
1
2
3
4
5
6
7
8
10
9
