TDM Loopbacks Chapter 9
WinLink™ 1000 User Manual Release 1.9 9-5

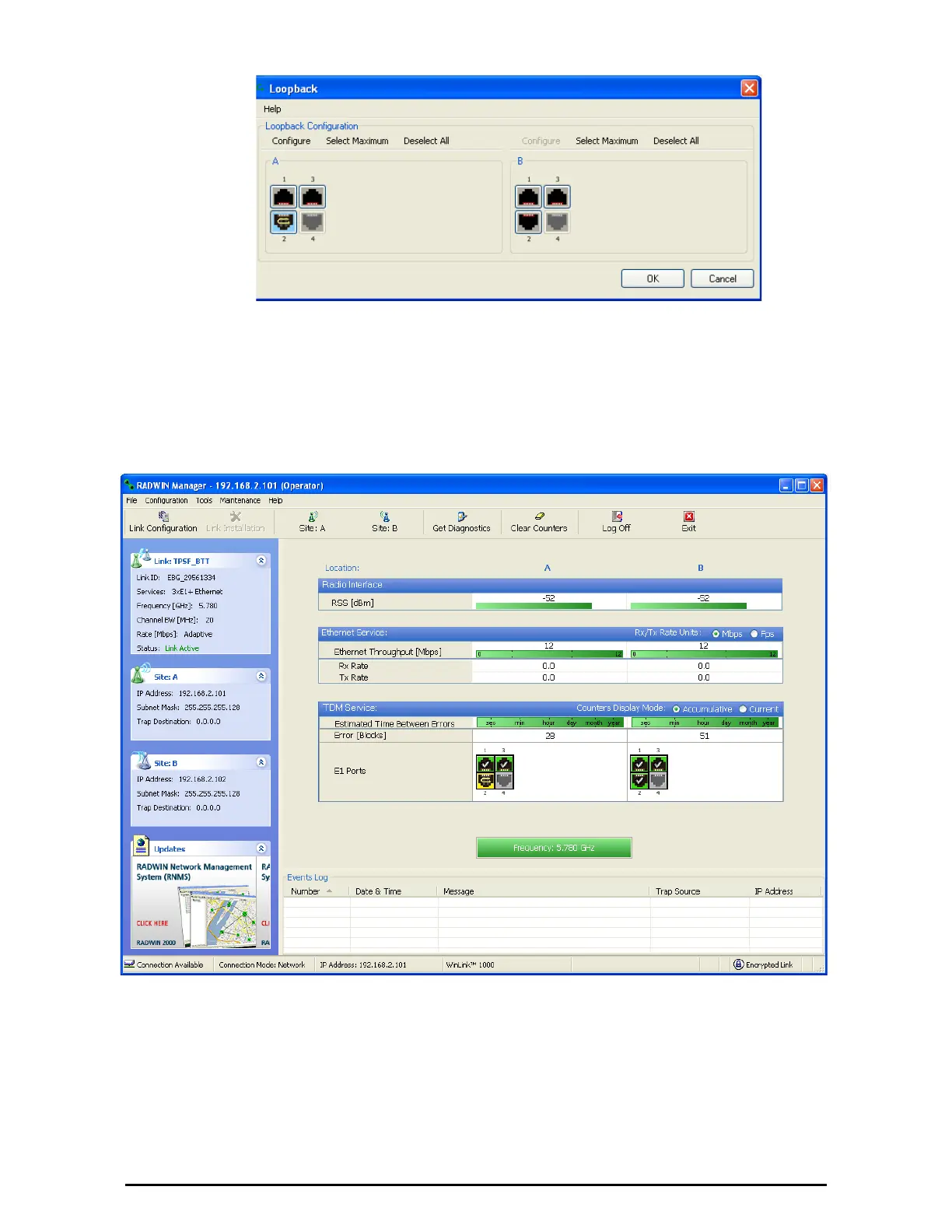

Figure 9-5: Loopback defined
5. Click OK to activate the selected loopback(s).
This activates selected loopback(s). The corresponding service
port icon in the main menu changes color and appearance to
indicate an active loopback.
Figure 9-6: Site A port 2 set to loopback
¾ To deactivate a loopback:
• Return to the situation of Figure 9-4 and click None.
When a loopback is deactivated, the corresponding icon in
Figure 9-6 reverts to its previous state (like the right side of the
figure).
