3. Click the check box if Automatic Channel Selection is required.
4. The Available Channels List contains all of the allowable channels for the
link. Check the channels that can be automatically selected.
Selecting a new channel causes the system quality to change. The Qual-
ity bar provides an indication of the link quality from No serv(ice) (red)
to Ethernet + TDM (green) as shown in the bottom of Figure 5-7
above.
5. Click Next.
Step 4, Hub Site Synchronization Settings

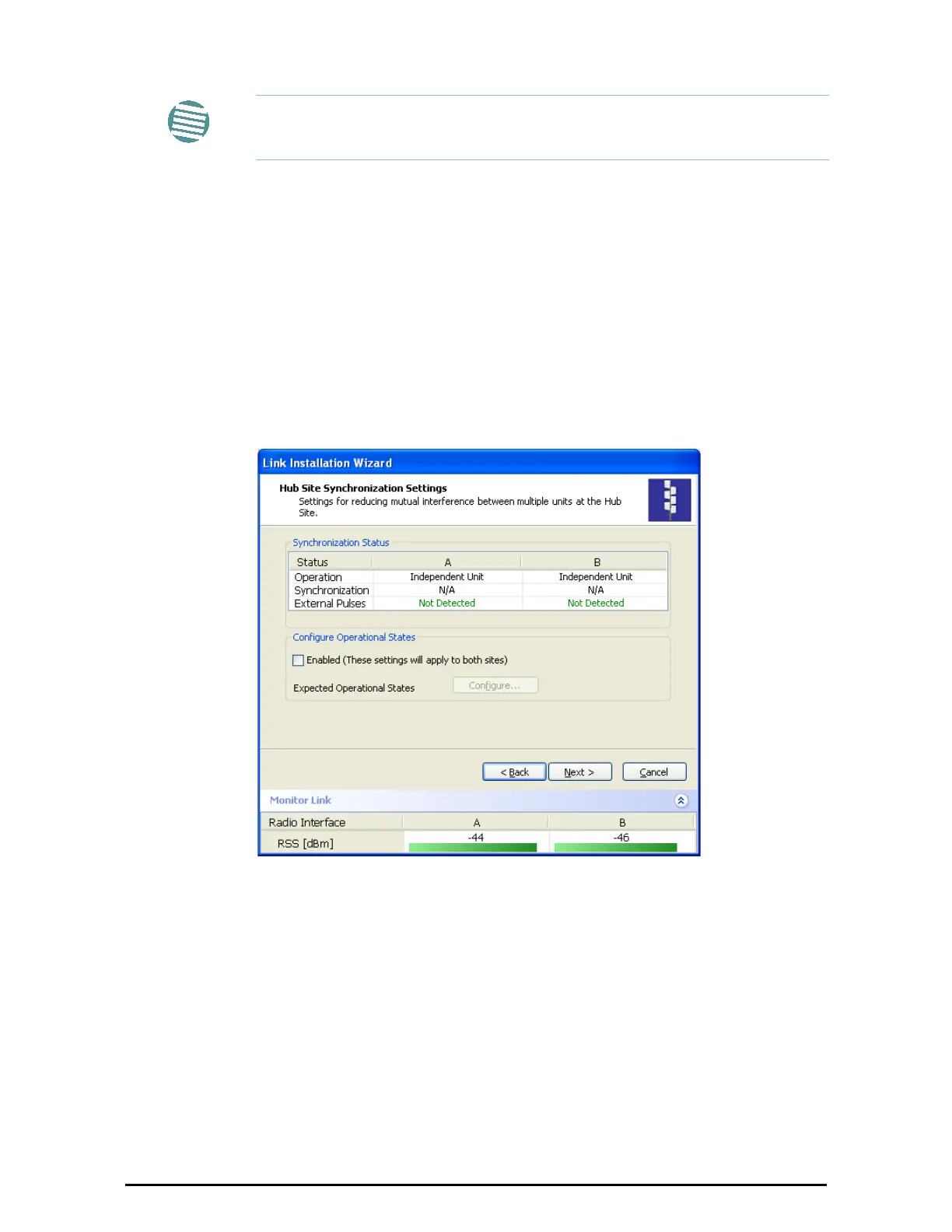

Figure 5-8: HSS Settings
The Synchronization Status dialog box displays the current status of each
side of the link. See Appendix G for instructions about installing and con-
figuring collocated links. If you do not require HSS, click Next.
Step 5, Services
The Services dialog appears:
Note
ACS is only supported for a Channel Bandwidth of 20 MHz.
