FCC/IC 5.4/5.3 GHz Link Configuration Appendix J
WinLink™ 1000 User Manual Release 1.9 J-4

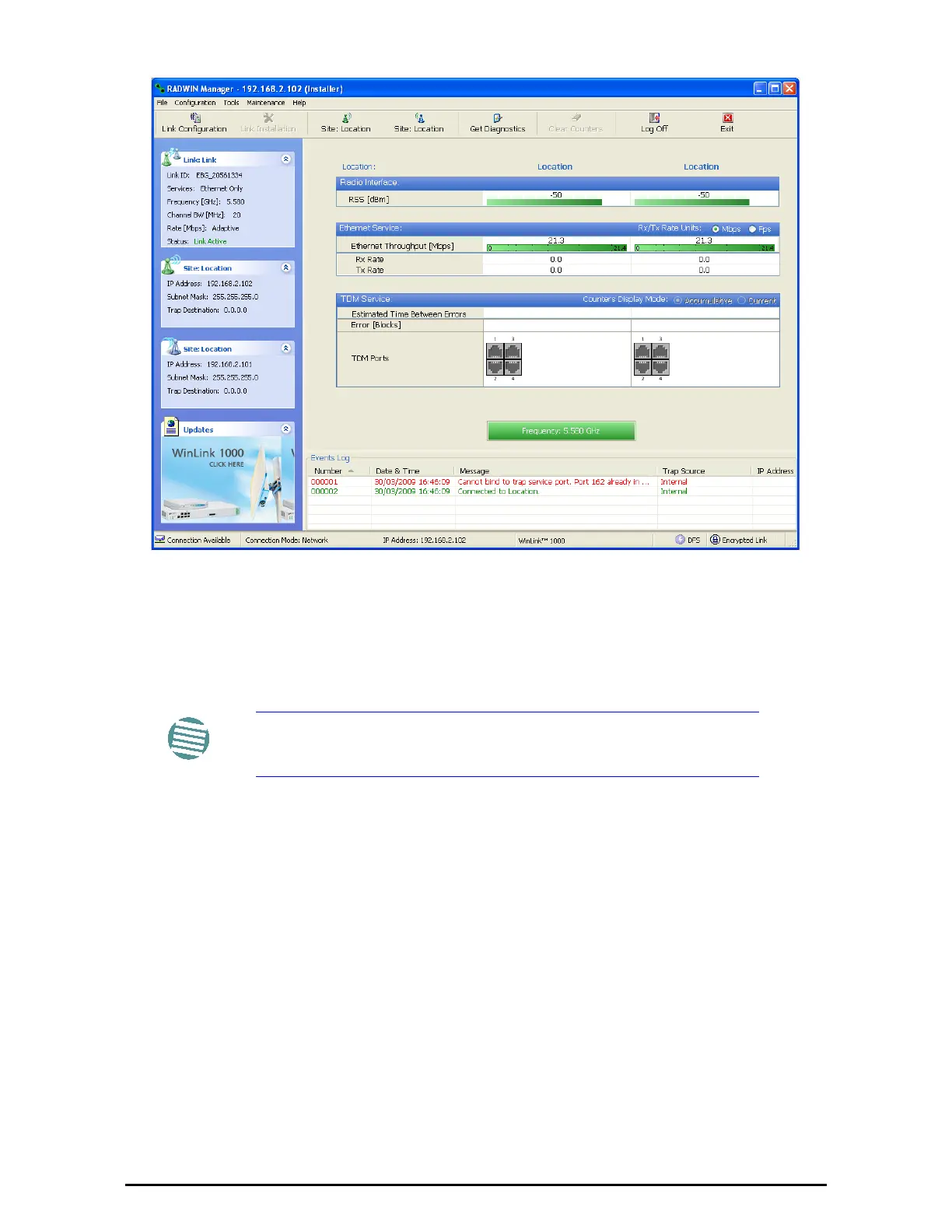

Figure J-4: Both sites activated and awaiting configuration
FCC/IC 5.4/5.3 GHz Link Configuration
The Configuration procedure may be carried out from either site using the
Configuration wizard as shown in Chapter 7.
The only difference is in the Channel Settings window:
Note
Both sites in a FCC/IC 5.4/5.3 GHz Link must be configured
identically.
