Radwin WinLink 1000 Series - Figure 3-3 Integrated Odu - Front and Rear Views; IDU-C Package Contents; IDU-E or IDU-R Package Containing

IDU-E or IDU-R package containing: Chapter 3
WinLink™ 1000 User Manual Release 1.9 3-4

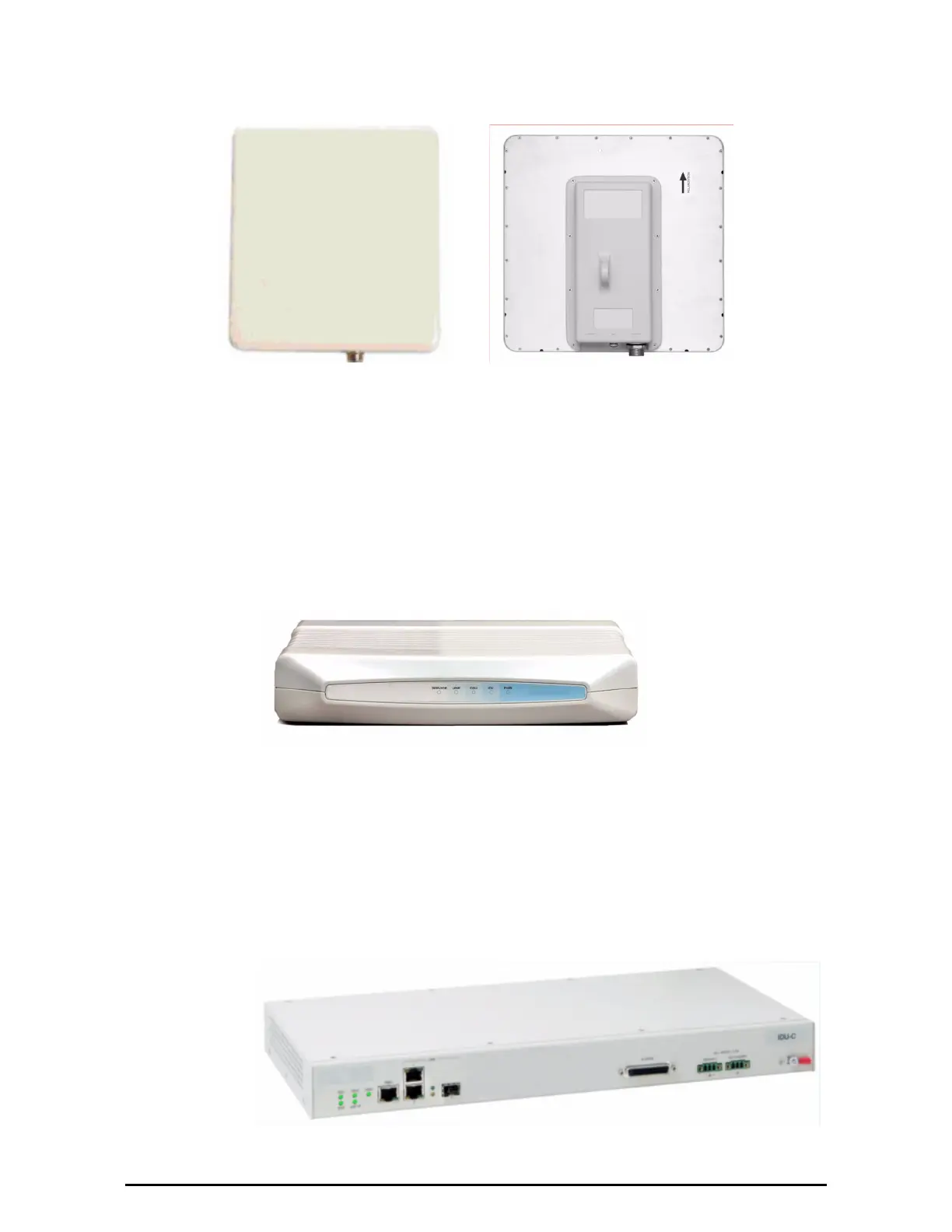

Figure 3-3: Integrated ODU - Front and rear views
IDU-E or IDU-R package containing:
• IDU-E or IDU-R
• AC/DC Converter
• IDU wall-mounting drilling template
• Self adhesive label showing the IDU LED operation
Figure 3-4: IDU-E/R - front view
IDU-C Package Contents
The IDU-c package contains:
• IDU-C - see Figure 3-5 below.
• 19” rack mounting kit - see Figure 3-7 below
• Two DC power plugs for power cables - see Figure 3-7 below
Figure 3-5: IDU-C Package contents - the IDU-C, Ethernet only
ODU - Front View ODU - Rear View
