Installing Cascaded Links Appendix L
WinLink™ 1000 User Manual Release 1.9 L-2

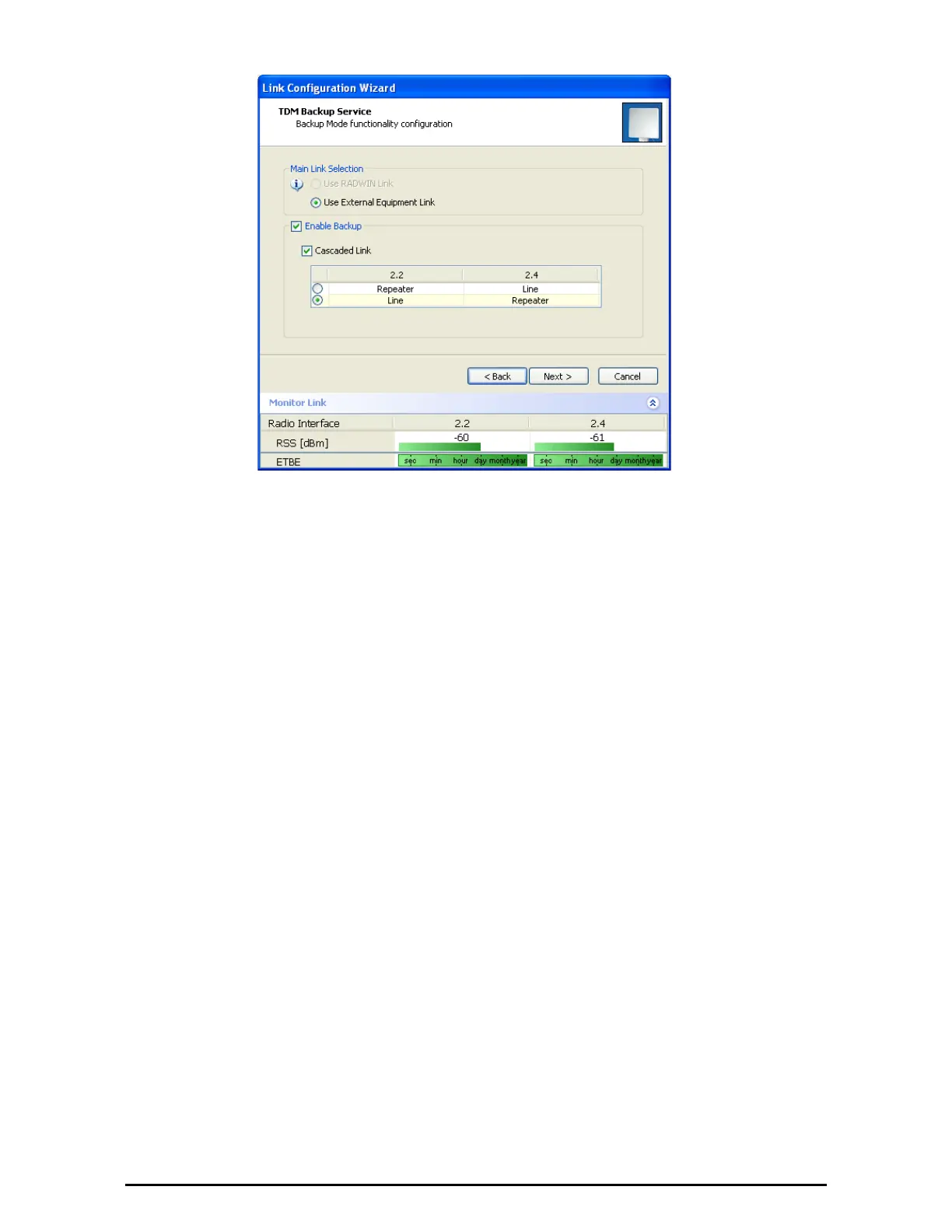

Figure L-2: Configuring an IDU-R in a cascaded link
To backup a single hop, leave Cascaded Link unchecked. In a cascaded
situation, check it and then chose the Line / Repeater combination that
reflects your setup.
You should repeat this procedure for the second link, making sure that your
definition of Line / Repeater IDU-Rs is consistent.
