Radwin WinLink 1000 Series User Manual

Installation Chapter 5
WinLink™ 1000 User Manual Release 1.9 5-3
Installation
Step 1, Start the Wizard
In the tool bar of the RADWIN Manager main window, click the Link
Installation button. The Link Installation button is only accessible if the
antennas are properly aligned. If this box is “grayed out”, you should align
the antennas as set out in 3 on page 3-17.
The Installation Wizard opens:

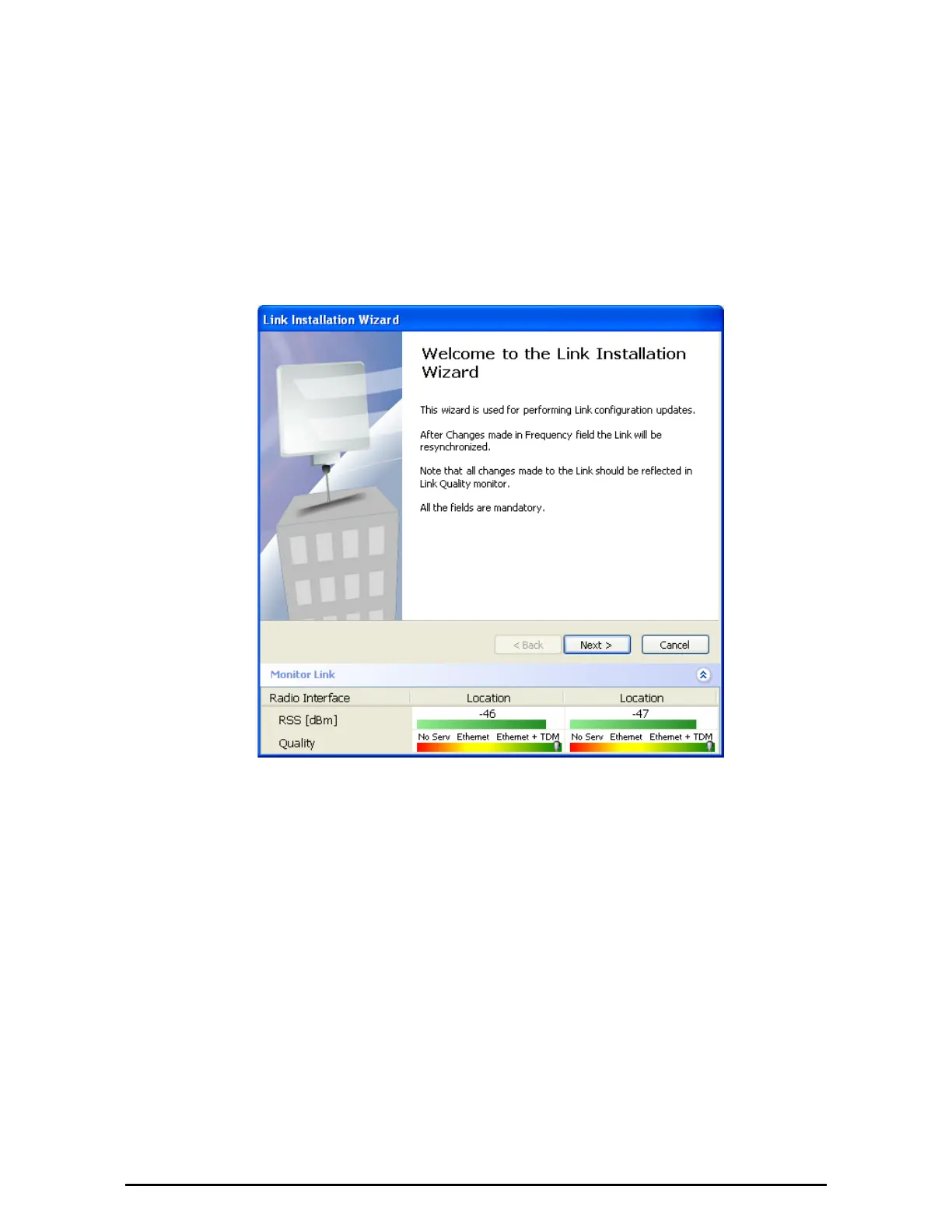

Figure 5-1: Link Installation Wizard
The bottom data area reproduces the corresponding data from the main
window - which the above panel obscures. See 6 for a field by field descrip-
tion of this data area.
Click Next to proceed with the installation procedure.
Step 2, System Parameters
The system dialog box opens:
