Radwin WinLink 1000 Series User Manual

Mounting the IDU-C Chapter 3
WinLink™ 1000 User Manual Release 1.9 3-11

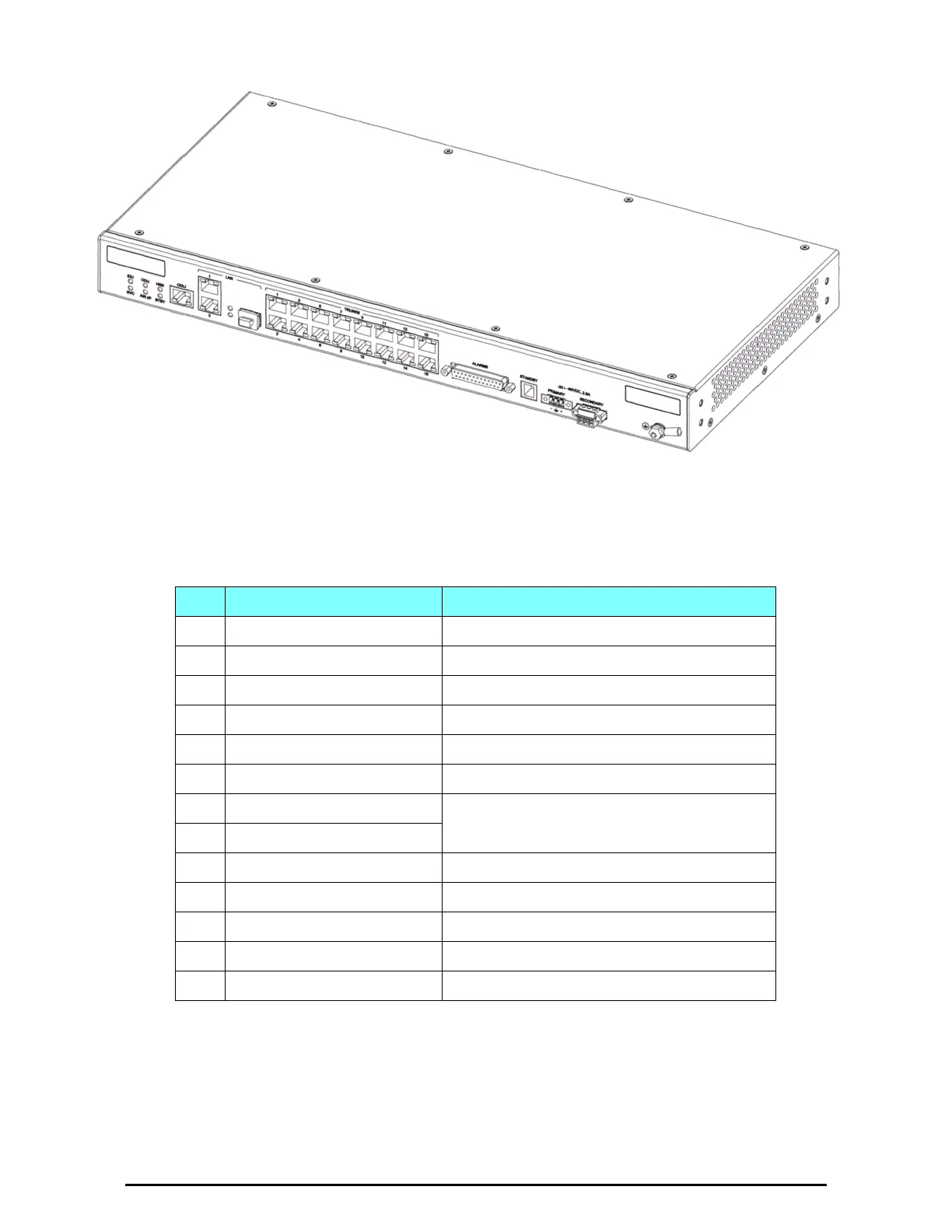

Figure 3-14: IDU-C - A perspective view
Further description of the keyed items in Figure 3-13 is shown in Table 3-
1 below:
The Indicator LEDs (Item A in Table 3-1 above) are shown in more detail
below:
Table 3-1: Components of an IDU-C front panel
Key Label Remarks
A Indicator LEDs See Figure 3-15.
B ODU Port RJ-45 connector, see Table K-1.
C LAN RJ45Ports Ethernet, RJ-45 connector, see Table K-2.
D LAN SFP Port See Appendix L.
E Alarm Ports Standard DB25 female connector, see Table K-6.
F Label indent Place for adhesive identification labels.
G Primary 3 pin Power Connector
Standard 3 pins in line power connector, see Table K-7.
H Secondary 3 pin Power Connector
I Grounding Lug Use the lug supplied.
J Rack mounting holes
K Detachable Rack mounting brackets
L 0, 4, 8 or 16 E1/T1 Ports See Table K-4.
M Standby Port Hot Standby ready: HSB cable socket, see Table K-5.
