Common Analysis and Display Functions
R&S
®
FSPN
176User Manual 1179.4363.02 ─ 01
●
Defining a shift width for the values or position of the individual data points
changes the line configuration, thus changing the position of the line in the dia-
gram.
Limit Check Results
A limit check is automatically performed as soon as any of the limit lines is activated
( "Visibility" setting). Only the specified "Traces to be Checked" are compared with the
active limit lines. The status of the limit check for each limit line is indicated in the dia-
gram. If a violation occurs, the limit check status is set to "MARG" for a margin viola-
tion, or to "Fail" for a limit violation.

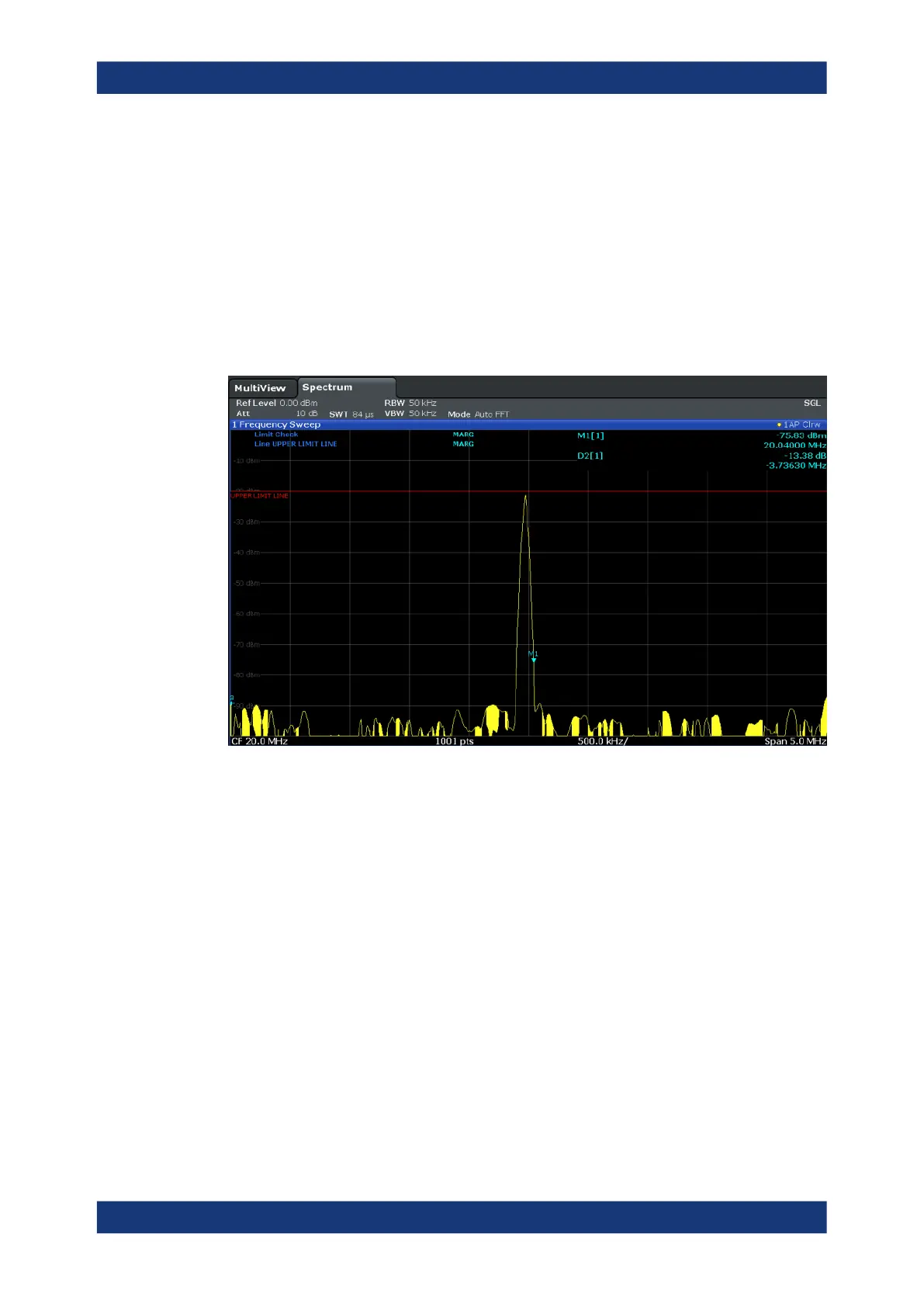

Figure 7-9: Margin violation for limit check
Limit Lines
