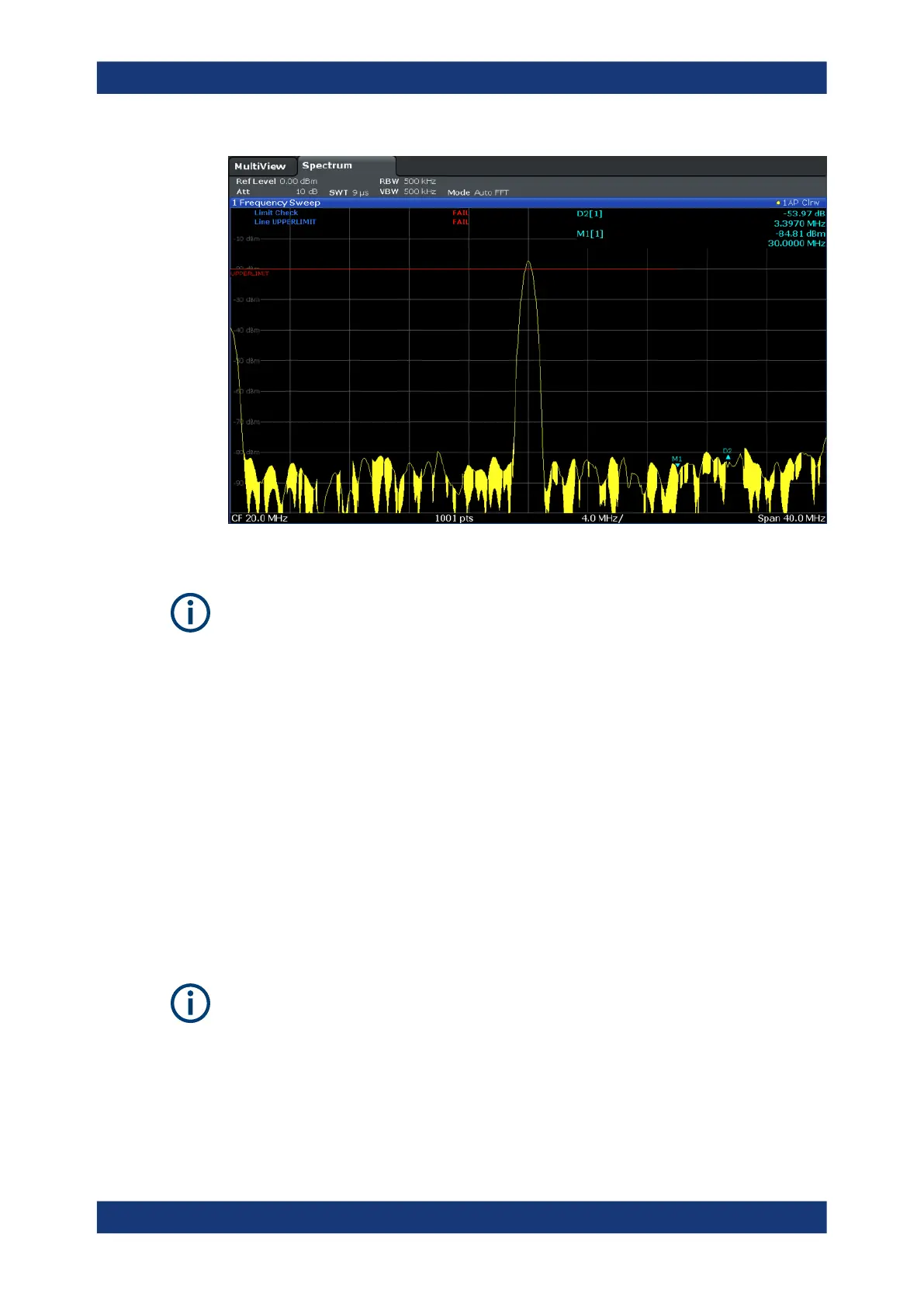

Figure 7-10: Limit violation for limit check
Storing and Recalling Limit Lines
Limit lines can be stored with the configuration settings so they can be recalled for
other measurements at a later time (see Chapter 8.2, "Storing and Recalling Instru-
ment Settings and Measurement Data", on page 186). Note, however, that any
changes made to the limit lines after storing the configuration file cannot be restored
and will be overwritten by the stored values when the configuration file is recalled.
Always remember to store the settings again after changing the limit line values.
After recalling measurement settings, the limit line values applied to the measurement
may be different to those displayed in the "Limit Lines" dialog box; see "Saving and
recalling transducer and limit line settings" on page 187.
7.5.2 Limit Line Settings and Functions
Access: "Overview" > "Analysis" > "Lines"
Up to 8 limit lines can be displayed simultaneously in the R&S FSPN. Many more can
be stored on the instrument.
Stored limit line settings
When storing and recalling limit line settings, consider the information provided in the
Data Management chapter of the R&S FSPN User Manual.
● Limit Line Management.........................................................................................178
● Limit Line Details...................................................................................................179
Limit Lines
