6.9.6 Settling Time
Access: "Overview" > "Frequency"
> "Settling Time"

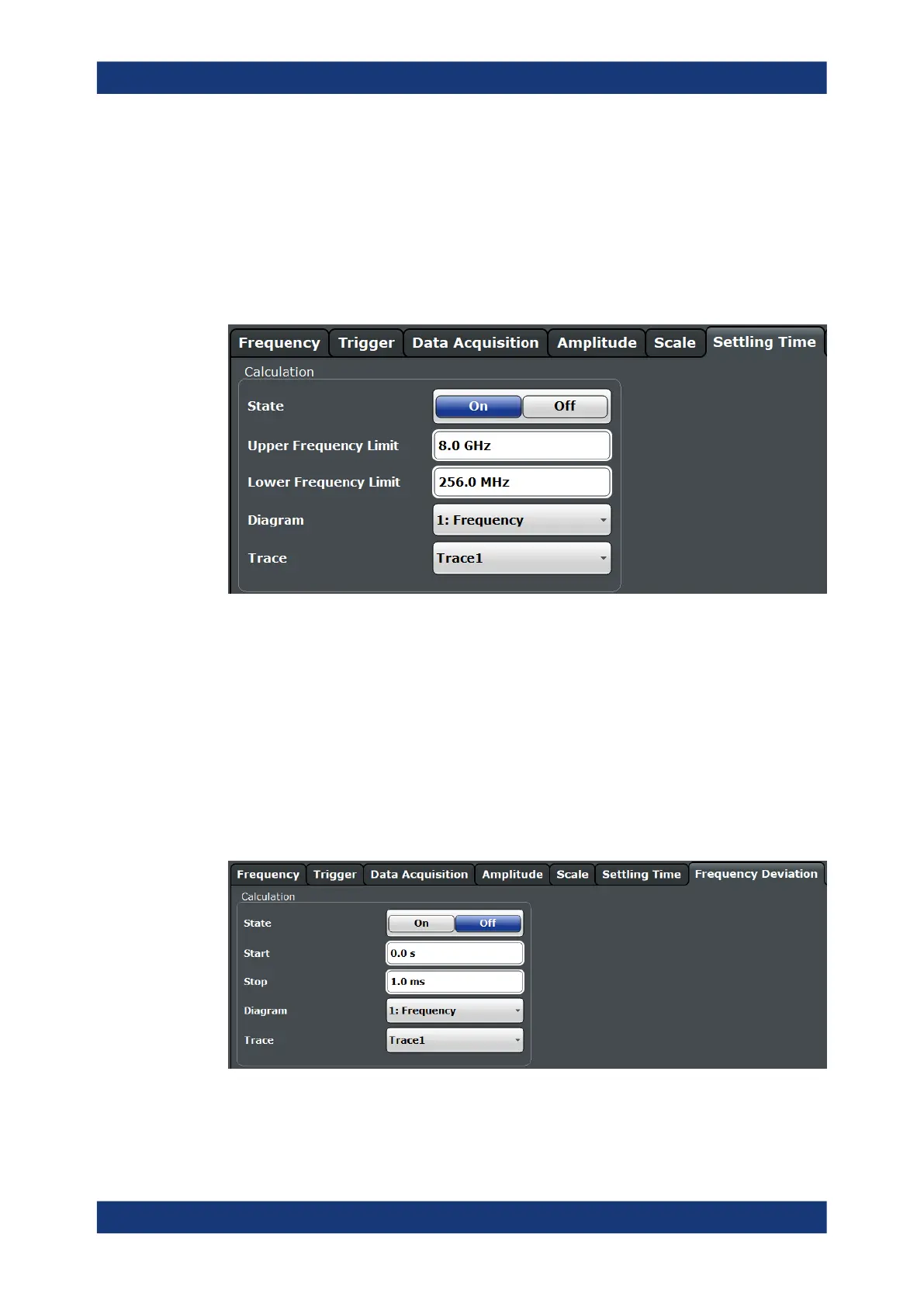

The settling time calculation shows the time until the frequency of the DUT has
reached a defined target corridor. The corridor is defined by the lower and the upper
frequency limit. The calculated settling time is displayed in the channel bar.
The remote commands required to configure the settling time calculation are described
in Chapter 11.6.9.6, "Settling Time", on page 398.
6.9.7 Frequency Deviation
Access: "Overview" > "Frequency"
> "Frequency Deviation"
The "Frequency Deviation" result display shows the frequency deviation of the transi-
ent response of the DUT from an ideal linear behavior over time. The time frame is
defined by the start and stop time.
The frequency deviation result display is described in "Frequency Deviation"
on page 96.
